Hose/Line HVAC: Service and Repair

System Components, Tercel Wagon:

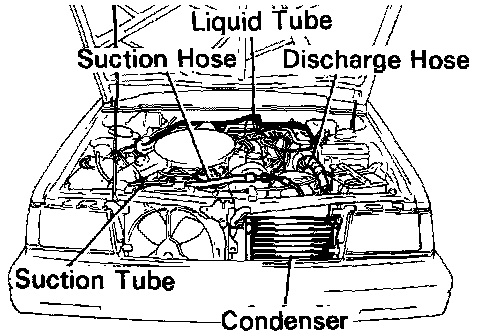

Component Locations:

1. Recover refrigerant from system.
2. Replace faulty tube or hose.

NOTE: Cap the open fittings immediately to keep moisture out of the system.

3. Torque fittings.
4. Evacuate air from air conditioning system.
5. Charge air conditioning system with refrigerant and check for gas leakage.

Specified amount: 650-750 g (1.4-1.7 lb)
