Evaporator Core: Locations

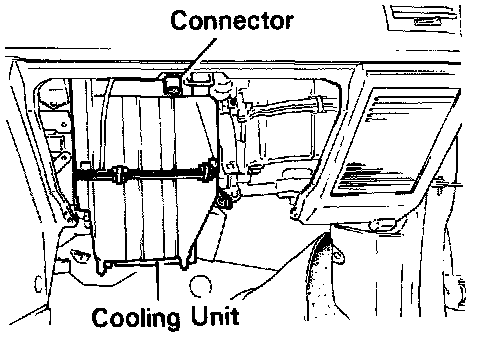

The evaporator core is located inside the cooling unit. The cooling unit is mounted under the right side of the safety pad (dashboard) behind the glove box. It is located between the right side of the heater unit and the left side of the blower assembly.
