Blower Motor: Locations

Heating/Cooling/Blower Assembly:

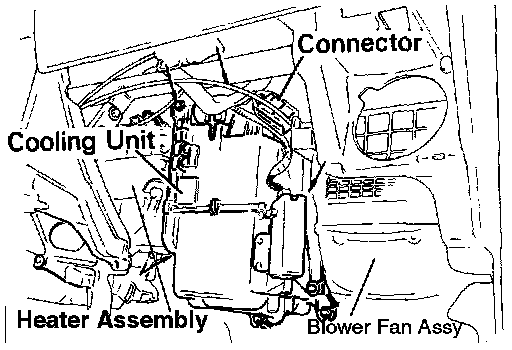

The blower motor assembly is located behind the glove box (under the safety pad) and is attached to the right side of the cooling unit. The motor unit is mounted to the underside of the blower assembly.
