Blower Motor Resistor: Testing and Inspection

Heater Blower Resistor Testing:

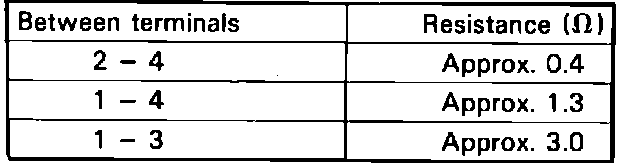

1. Using a suitable ohmmeter, measure resistance of terminals as shown, Fig. 22.

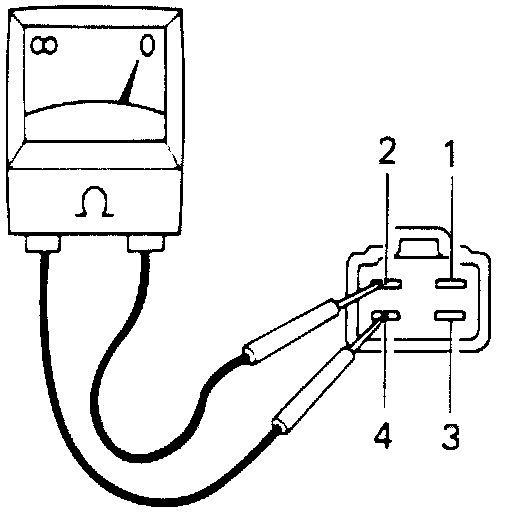

Fig. 22 Heater blower resistor.:

2. If resistance values are not as specified, replace blower resistor.
