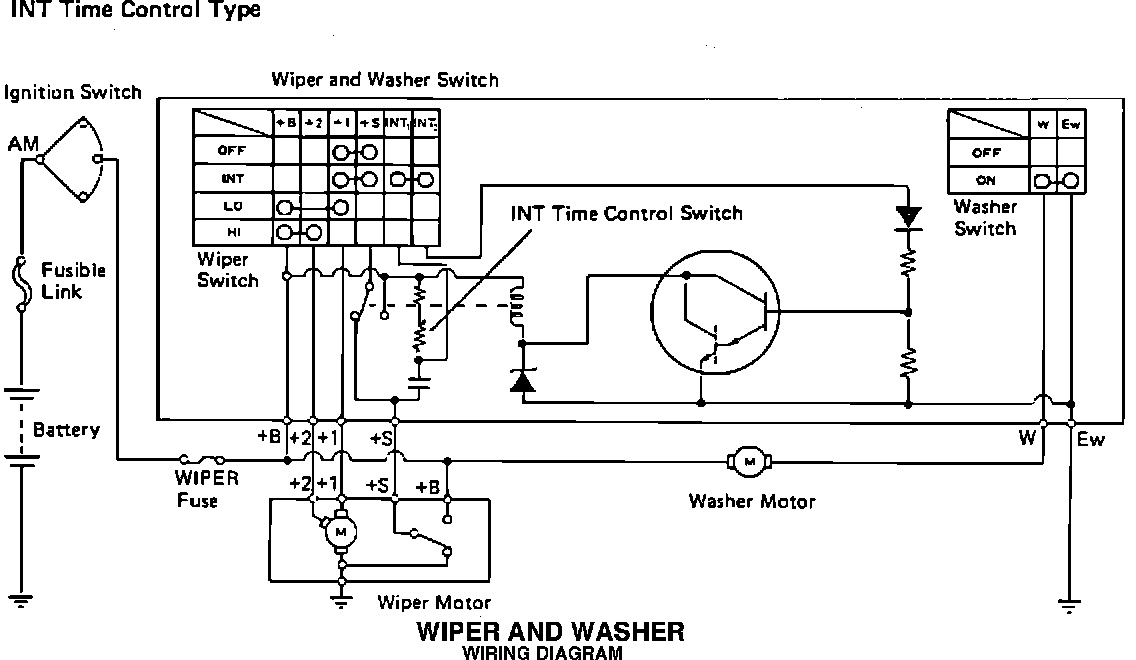

Wiper and Washer Wiring Diagram
WIPER AND WASHER:
Troubleshooting
Problem Possible cause Remedy Page
Wiper does not WIPER fuse blown Replace fuse and check for shorts
operate or return Wiper motor faulty Check motor
to off position Wiper switch faulty Check switch 3
Wiring or ground Repair as necessary
Wiper does not Wiper switch faulty Check switch 3
operate in INT Wiper motor faulty Check motor
position Wiring or ground Repair as necessary
Washer does not Washer hose or nozzle clogged Repair as necessary
operate Washer motor faulty Replace motor
Washer switch faulty Check switch 3
Wiring faulty Repair as necessary
Terminals:
Wiper and Washer Switch
INSPECTION OF WIPER AND WASHER SWITCH

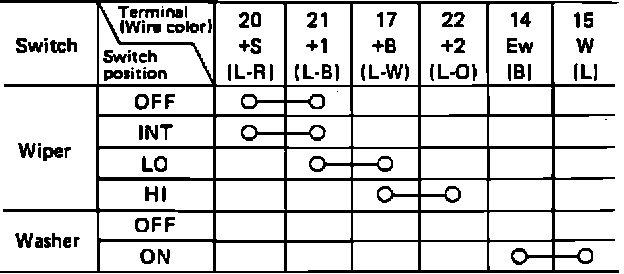

1. INSPECT WIPER AND WASHER SWITCH CONTINUITY Inspect the switch continuity between terminals.
If continuity is not as specified, replace the switch.
Switch Inspection:
2. INSPECT SWITCH OPERATION
(a) Turn the INT time control switch to the fastest position.
(b) Connect the positive (+) lead from the battery to terminal 17 and connect the negative (-) lead from the battery to terminal 14.
(c) Connect the positive (+) lead from the voltmeter to terminal 21 and connect the negative (-) lead from the voltmeter to terminal 14. Turn the wiper switch to INT position and check that the meter needle indicates battery voltage.

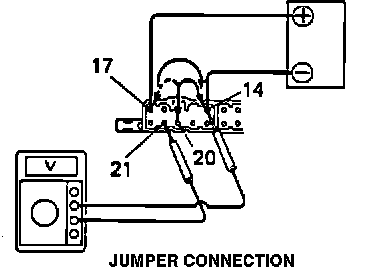

Jumper Connection:
(d) ^ Connect a jumper wire from terminal 20 to terminal 14.
^ Now connect a jumper from 20 to 17 and back to 14.
^ Rotate the INT time control switch from the fast to slow position and check that voltage between terminals 21 and 14 alternate between 0 and battery voltage.
No Voltage Battery Voltage
Fastest Approx. 2 secs. Approx. 1 sec.
Slowest Approx. 4 - 10 secs. Approx. 1 sec.
If operation is not as described, replace the switch.
Switch Replacement:
REPLACEMENT OF WIPER AND WASHER SWITCH
REPLACE WIPER AND WASHER SWITCH
(a) Remove the terminals from the connector.
(b) Remove the terminal from the horn contact plate.
(c) Remove the wiper and washer switch.
(d) Install the wiper and washer switch.
(e) Install the terminal to the horn contact plate.
(f) Install the terminals to the connector.
