Instruments, Gauges and Warning

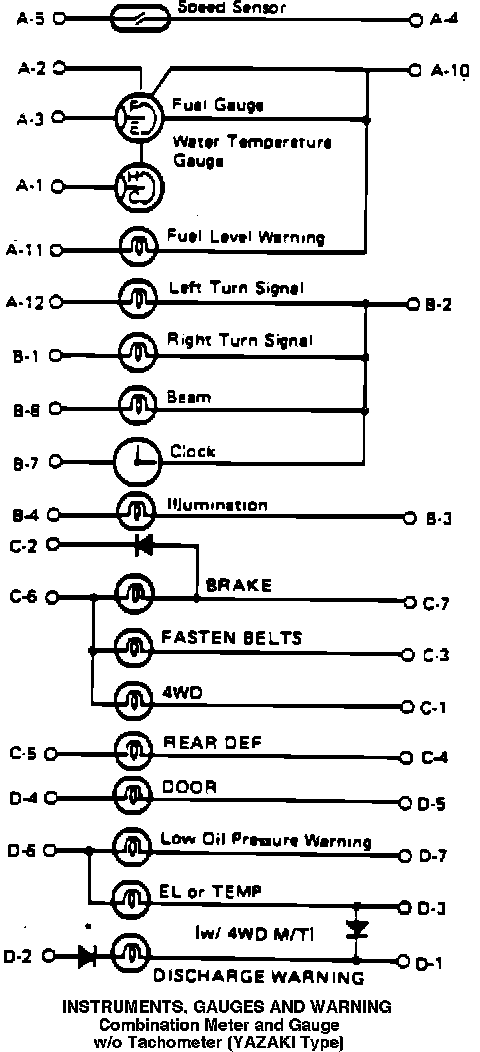

Combination Meter and Gaugew/o Tachometer (YAZAKI Type):

Combination Meter and Gauge w/o Tachometer (YAZAKI Type):

Combination Meter and Gauge w/o Tachometer (YAZAKI Type)

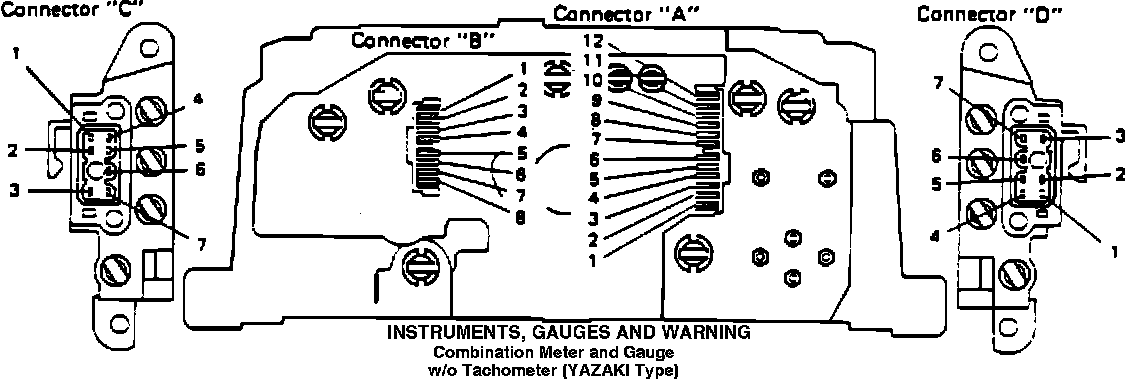

NO. Wiring connector side
1 Water Temperature Sender Gauge
2 Ground
3 Fuel Sender Gauge

A 4 Cruise Control Computer
5 Ground
10 GAUGE Fuse
11 Fuel Level Warning switch
12 Turn Signal Switch Terminal TL
1 Turn Signal Switch Terminal TR
2 Ground

B 3 Rheostat
4 TAIL Fuse
7 DOME Fuse
8 Dimmer Switch Terminal HL
1 4WD Indicator Switch (w/ M/T)
4WD Switch (w/ A/T)
2 CHARGE Fuse
3 Seat Belt Warning Relay
C 4 Rear Window Defogger Switch
5 Ground
6 GAUGE Fuse
7 Brake Fluid Level Warning Switch
Parking Brake Indicator Switch
1 CHARGE Fuse
2 IGN Fuse
3 A/T Fluid Temperature Warning Switch
(w/ 4WD A/T)

D Water Temperature Warning Switch (w/ 4WD A/T)
Extra Low Gear Indicator Switch (w/ 4WD MIT)
4 DOME Fuse
5 Door Courtesy Switch
6 GAUGE Fuse
7 Oil Pressure Switch

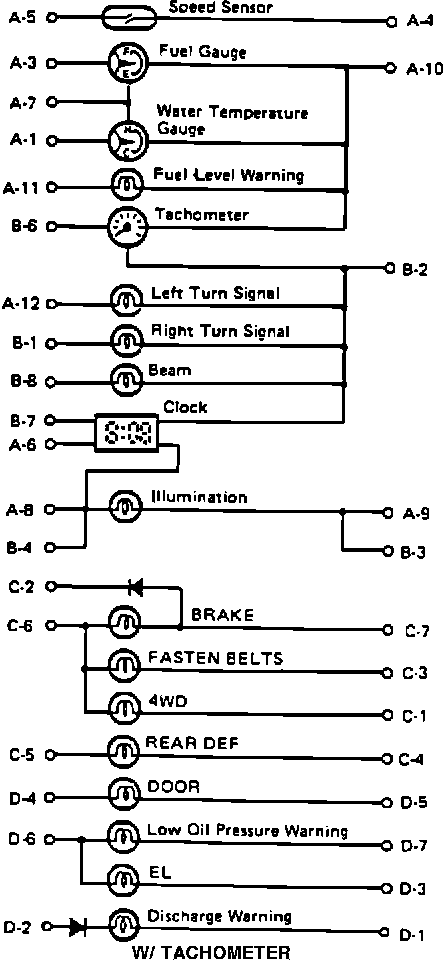

w/ Tachometer:

w/ Tachometer:

w/ Tachometer

NO. Wiring connector side
1 Water Temperature Sender Gauge
3 Fuel Sender Gauge
4 Cruise Control Computer
5 Ground
6 CIG Fuse
A 7 Ground
8 TAIL Fuse
9 Rheostat
10 GAUGE Fuse
11 Fuel Level Warning Switch
12 Turn Signal Switch Terminal TL
1 Turn Signal Switch Terminal TR
2 Ground
3 Rheostat
B 4 TAIL Fuse
5 Blank
6 IIA
7 DOME Fuse
8 Dimmer Switch Terminal HL
1 4WD Indicator Switch
2 CHARGE Fuse
3 Seat Belt Warning Relay
C 4 Rear Window Defogger Switch
5 Ground
6 GAUGE Fuse
7 Brake Fluid Level Warning Switch
Parking Brake Indicator Switch
1 CHARGE Fuse
2 IGN Fuse
3 Extra Low Gear Indicator Switch (w/ 4WD M/T)
D 4 DOME Fuse
5 Door Courtesy Switch
6 GAUGE Fuse
7 Oil Pressure Switch

CRUISE CONTROL SYSTEMWiring Diagram:

CRUISE CONTROL SYSTEM

Wiring Diagram

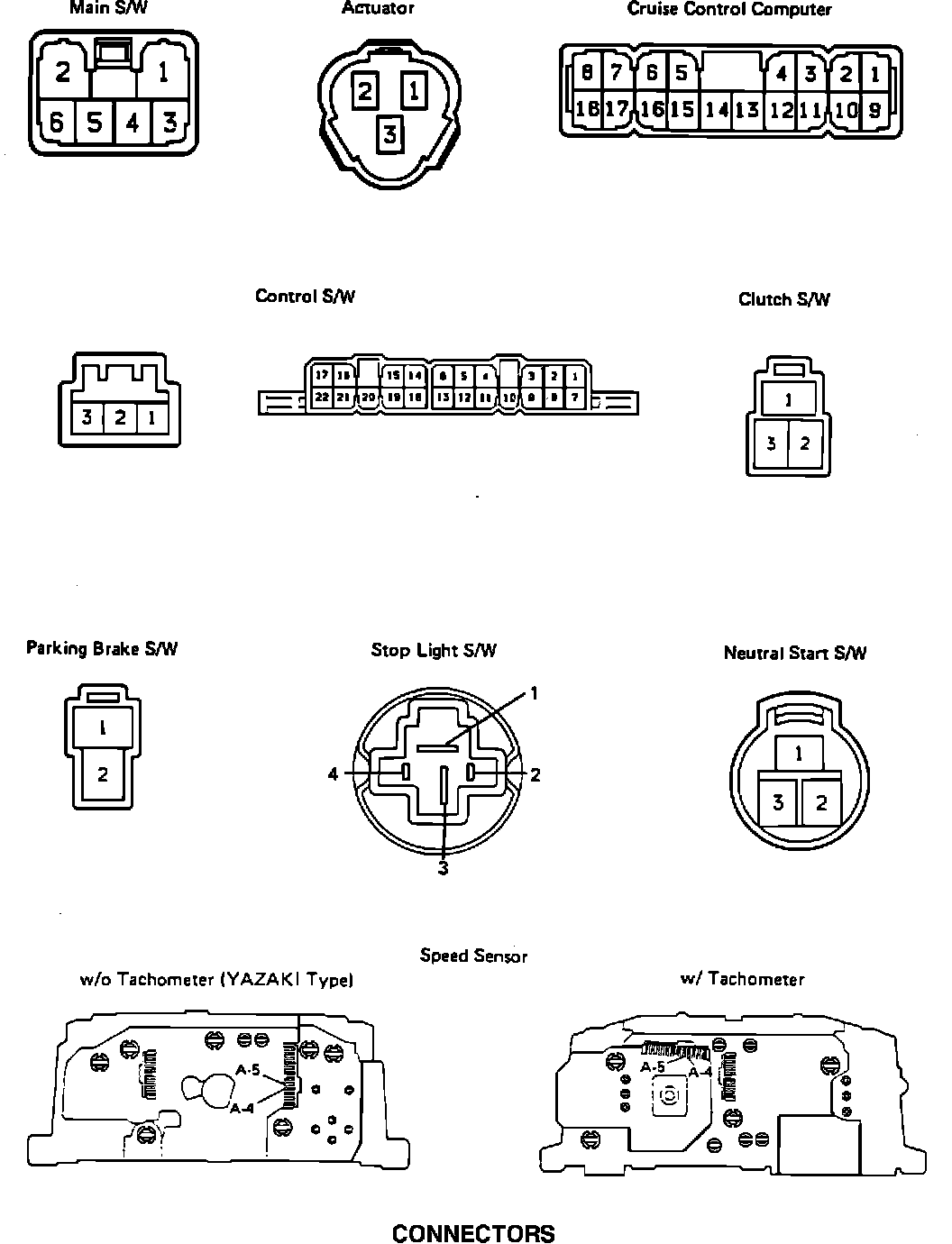

Connectors:

Connectors
