M/T - Parts Standardized
REFERENCE TRANSMISSION AND CLUTCHNUMBER 010
DATE 11-4-83
MODEL AE
T40/T50 Series Transmissions:
For standardization the following parts of the T40 and T50 series transmissions have been modified.

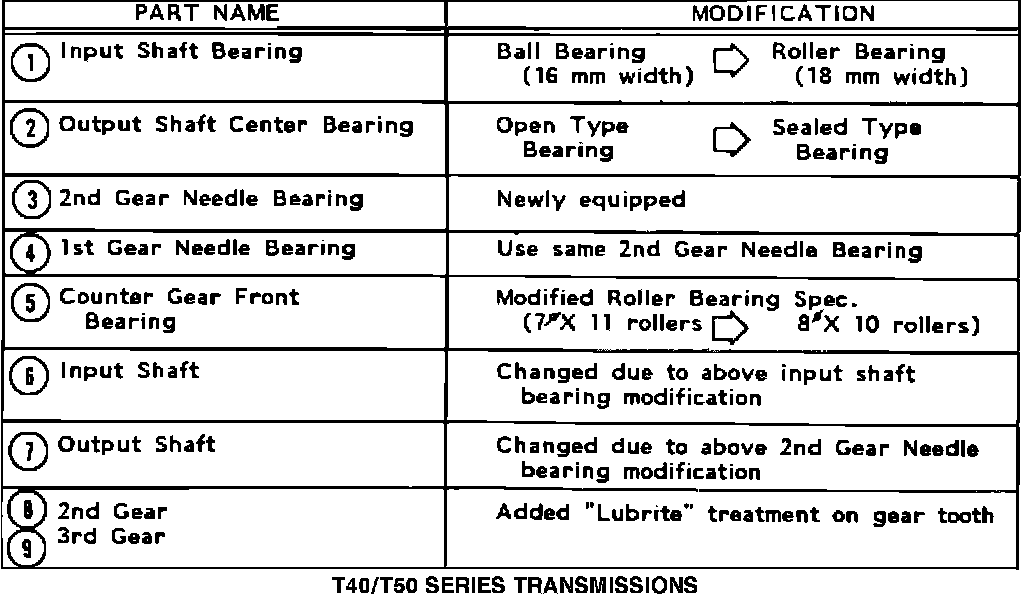

Transmission Modifications Chart:
NOTE: The improved transmission has a letter "A" indicated in the position as shown above on the outer transmission case.
PRODUCTION EFFECTIVE:
From Transmission Number Transmission Production Date
T40-30411935 April 1983
T50-30411966 April 1983
From Frame Number Production Date
JT2AE7#**D2076327 May 1983
JT2AE72W*D5021295 May 1983
PART NUMBER INFORMATION:
Previous Part Number New Part Number Part Name
*90363-30028 90365-30020 Bearing (for input shaft front)
90369-30027 Same Bearing, output shaft center
- 90364-37004 Bearing (for 2nd gear needle)
**90364-37041 90364-37004 Bearing (for 1st gear needle)
90365-20004 Same Bearing (for counter gear front)
*33301-14010 33301-12010 Shaft, input
*33321-14041 33321-12100 Shaft, output
*33033-14061 33033-12020 Gear, 2nd
*33034-14030 33034-12040 Gear, 3rd
* The new part is not interchangeable with the previous part.
** The new part is interchangeable with the previous part.
