A/T And M/T - Formed-In-Place-Gasket Availability
REFERENCE TRANSMISSION AND CLUTCHNUMBER 019
DATE 4-27-84
MODEL AE82
TRANSAXLE CASE:
Seal packing 1281 (Formed-in-Place-Gasket) is now available.. This seal packing is used for the joint between the transaxle case and transmission case.
PART NUMBER INFORMATION:
00295-01281 Toyota Seal Packing 1281 (Net: 100g)
Cleaning Gasket Surfaces:
^ Using a razor blade and gasket scraper, remove all the old FIPG material from the gasket surfaces and sealing groove.
^ Thoroughly clean all components to remove all loose material.
^ Clean both sealing surfaces with a nonresidue solvent.
Application:

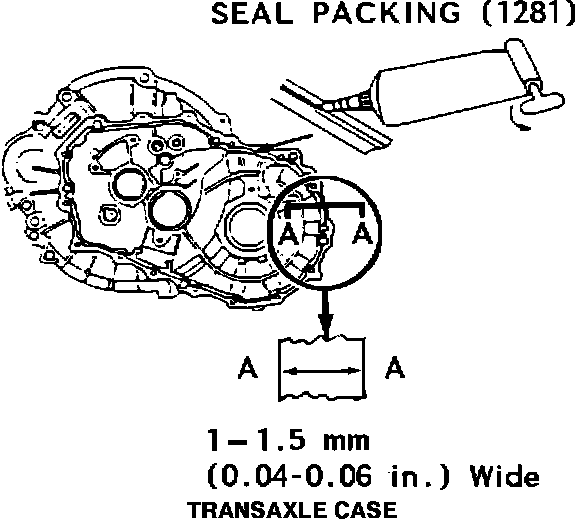

^ Apply seal packing as pictured above.
^ Assemble parts within 15 minutes after application.
^ Transaxle may be operated in 1 to 2 hours.
