A/T - Parts Standardization
TRANSMISSIONREFERENCE AND CLUTCH
NUMBER 028
DATE 11-2-84
MODEL AE, CE, SV

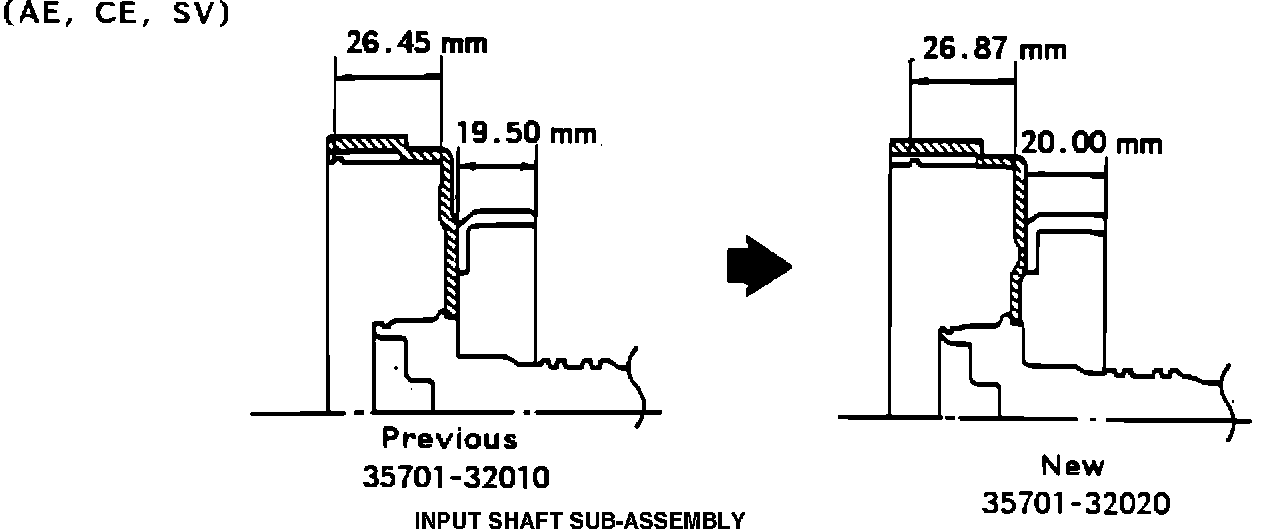

Input Shaft Sub-Assembly:

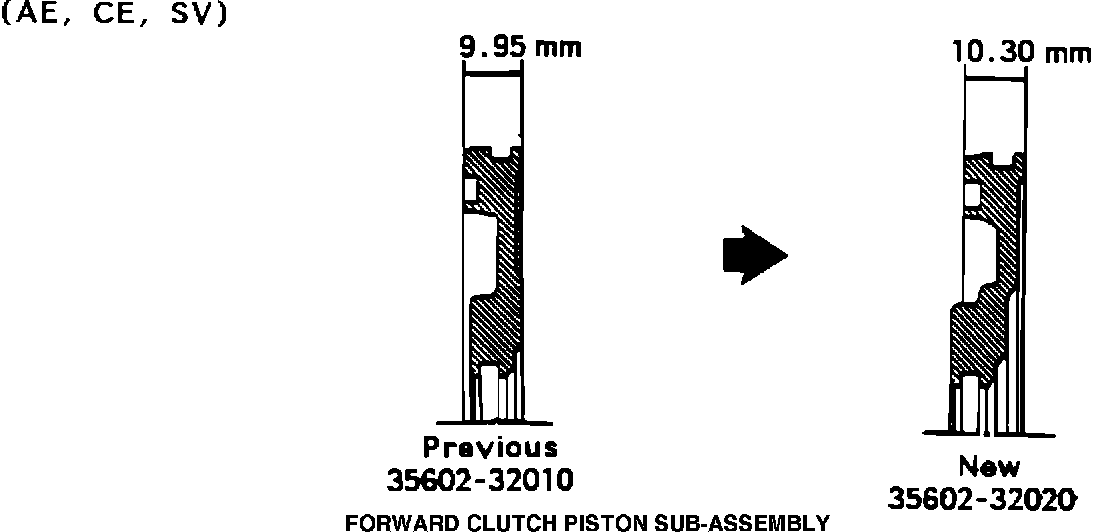

Forward Clutch Piston Sub-Assembly:

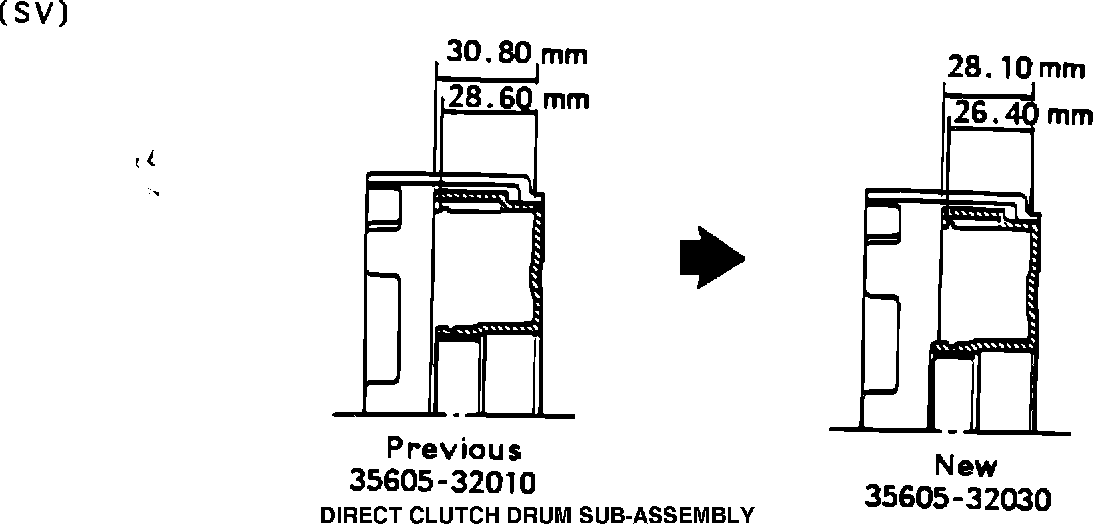

Direct Clutch Drum Sub-Assembly:

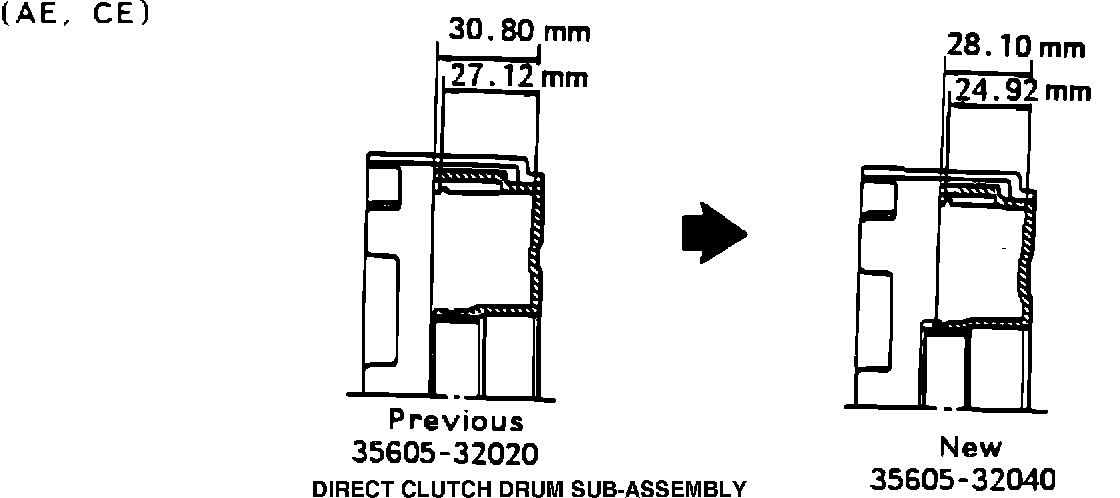

Direct Clutch Drum Sub-Assembly:
Direct Clutch Piston Sub-Assembly:
Front Planetary Ring Gear:
Sun Gear Input Drum:
For parts standardization among the A130L, A131L and A140E front wheel drive automatic transmissions, the following parts have been modified as shown below..
The material of the clutch discs and brakes have also been changed.
Previous Part Number New Part Number Component
Previous Disc (New Disc Number)
Material Number)
A140E
35633-32010 35633-32020 Overdrive clutch, Co
(SD1470) (SD1777X)
35677-32010 35677-32030 Overdrive brake, Bo
(SD1470) (SD1777X)
A140E/A130L
35633-32010 35633-32020 Forward clutch, C1
(SD1470) (SD1777X)
35633-32010 35633-32020 Direct clutch, C2
(SD1470) (SD1777X)
35810-32010 35810-32020 Second coast brake, B1
(SD715) (SD1181)
35677-32010 35677-32030 Second brake, B2
(SD1470) (SD1777X)
35677-32020 35677-32040 First and reverse brake, B3
(SD1240B) (SD1777B)
A131L
35633-12030 No change Forward clutch, C1
(AC1003)
35633-12030 No change Direct clutch, C2
(AC1003)
35810-32010 35810-32020 Second coast brake, B1
(SD715) (SD1181)
35677-12010 No change Second brake, B2
(AC1003)
35677-12020 No change First and reverse brake, B3
(AC1005)
NOTE: Disc material numbers are stamped on each disc plate
PRODUCTION EFFECTIVE:
From Transmission Number Transmission Model Production Date
3MY-14107 A131L AE8#E January 1984
AE82L January 1984
4A-00354 A130L CE82 January 1984
4A-00354 A140E SV1# January 1984
From Frame Number Production Date
JT2AE8#**E3057681 (F.F.) January 1984
JT2SV1#**E0008854 January 1984
PART NUMBER INFORMATION:
Previous Part Number New Part Number Part Name
*35701-32010 35701-32020 Shaft sub-assy, input
*35602-32010 35602-32020 Piston, sub-assy, forward clutch
*35605-32010 35605-32030 Drum sub-assy, direct clutch
(For SV)
*35605-32020 35605-32040 Drum sub-assy, direct clutch
(For AE, CE)
*35606-32010 35606-32020 Piston sub-assy direct clutch
*35743-32010 35743-32020 Gear, front planetary ring
*35755-32010 35755-32020 Drum, sun gear input
NOTE: *Parts are interchangeable as a set only.
