A/T - A130 No 1-2 Shift In Drive after Rebuild

TSB 87-37 (June)

SUBJECT: TOYOTA A 130

PROBLEM:
No 1-2 Shift in Drive Range, after Rebuild, Transmission can be Manually Shifted to Second.

CAUSE:
Second Brake Installed Improperly or with too much clearance.

POSSIBLE SOLUTION:
Most Units have 3 Plates and 3 Plates.

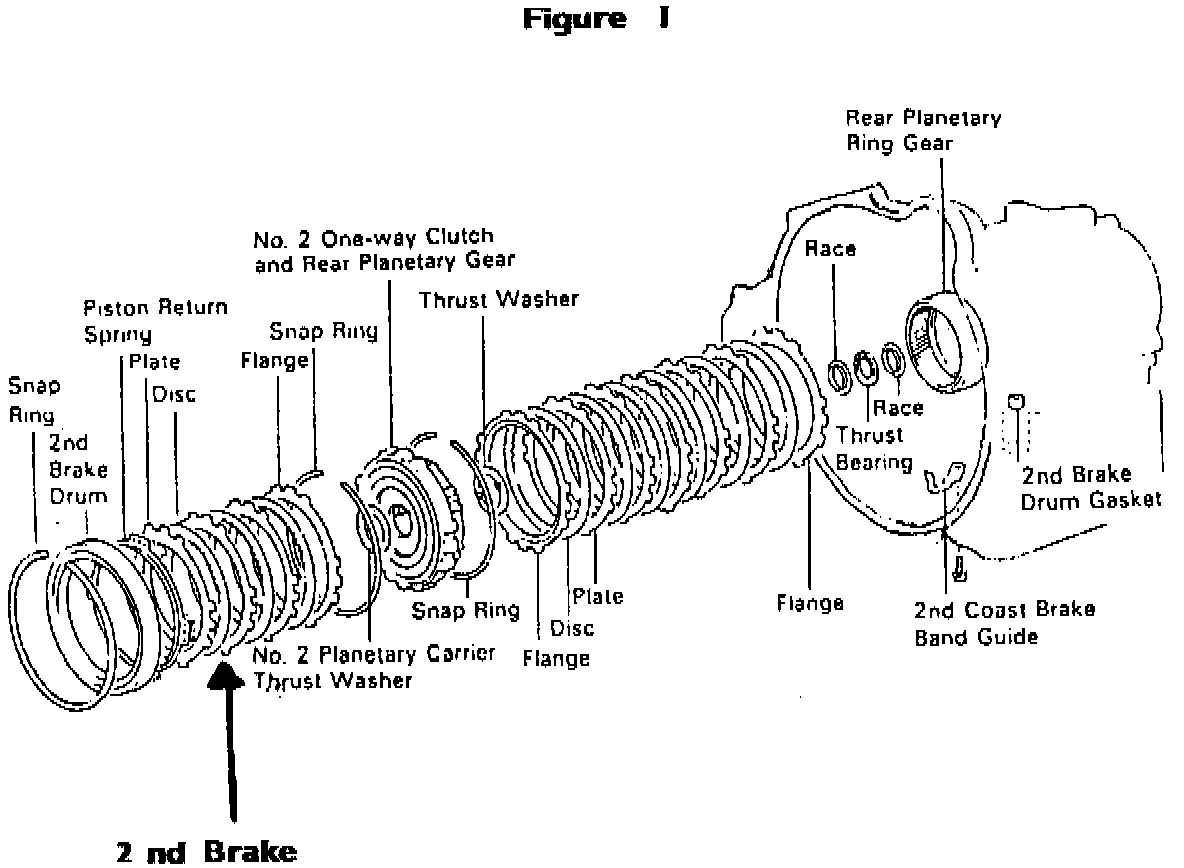

See Figure 1 for correct installation
