Corolla/FX L4-1839cc DSL (1CLC)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
M/T Torque Data
>>
S50 5-SPD M/T
S50 5-SPD M/T

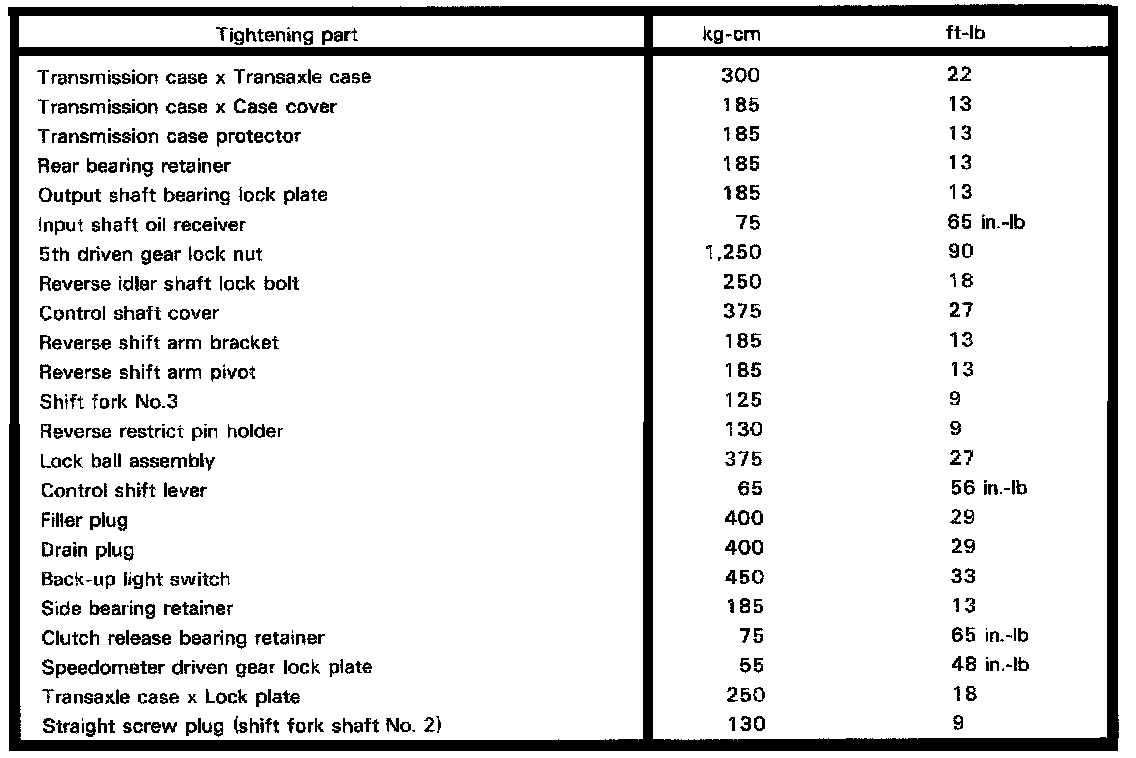

S50 5-spd M/T, Clutch/Transmission Torque:
S50 5-spd M/T, Transmission Torque:
