S50 5-SPD M/T
S50 5-SPD M/T

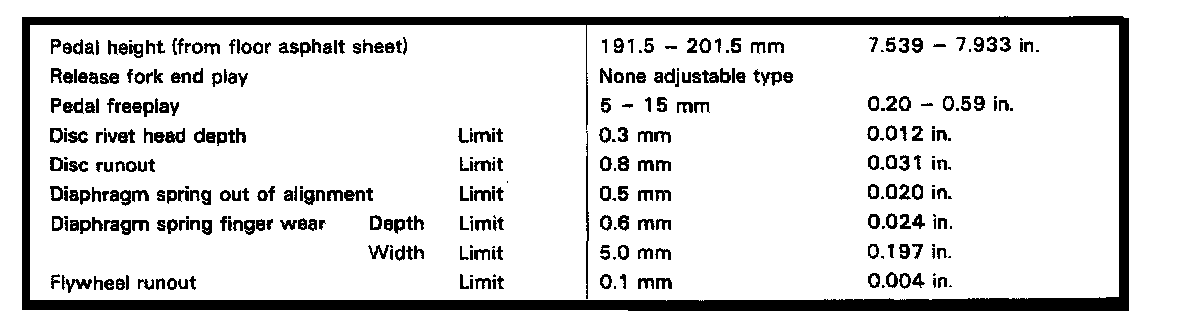

S50 5-spd M/T, Clutch Clearances:

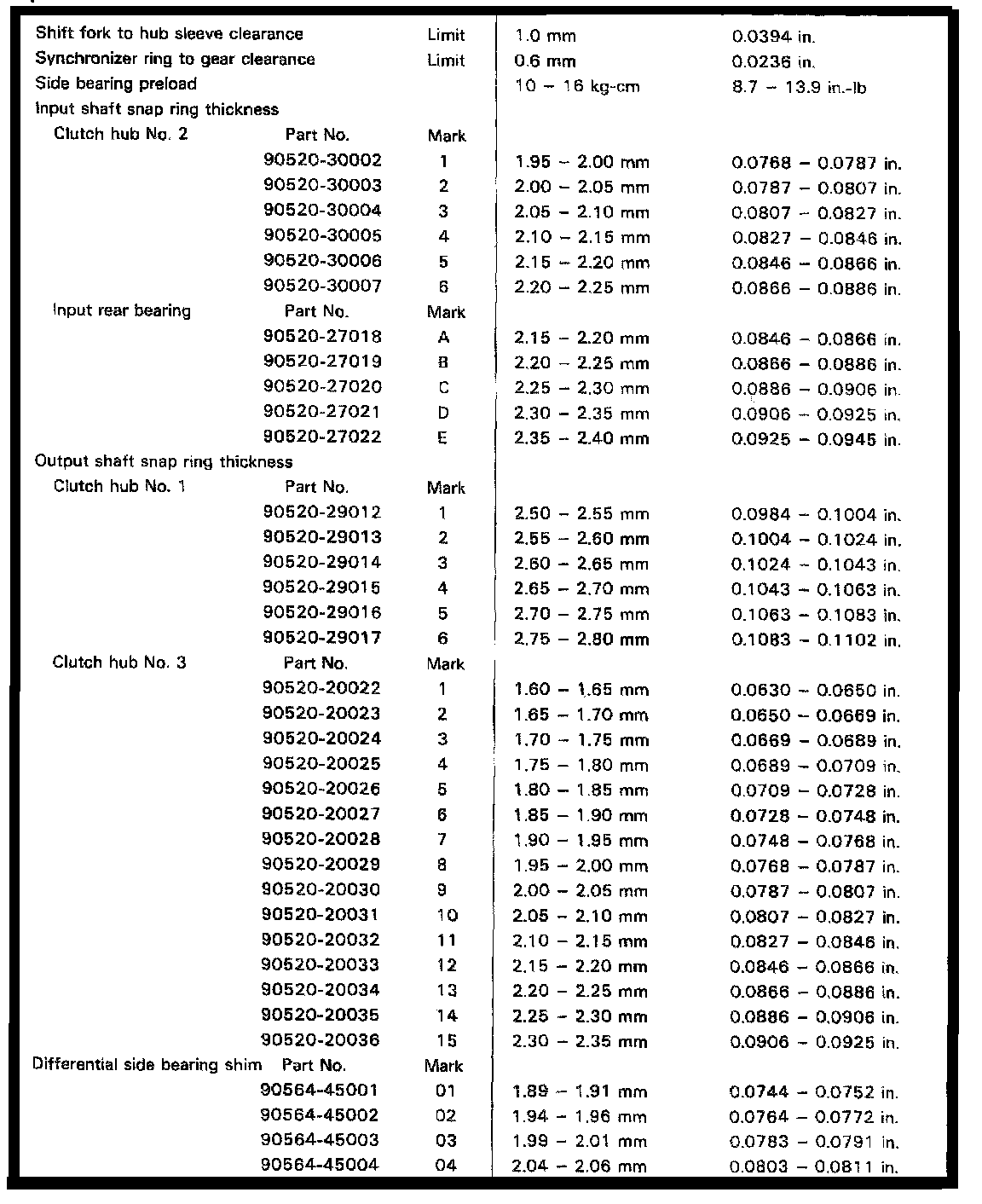

S50 5-spd M/T, Transmission Clearances:
S50 5-spd M/T, Clutch Hubs/Input Thickness:
S50 5-spd M/T, Clutch Hub/Input Thinkness Cont.:
