S41 4-SPD M/T
S41 4-SPD M/T
S41 4-spd M/T, Transmission Clearances:

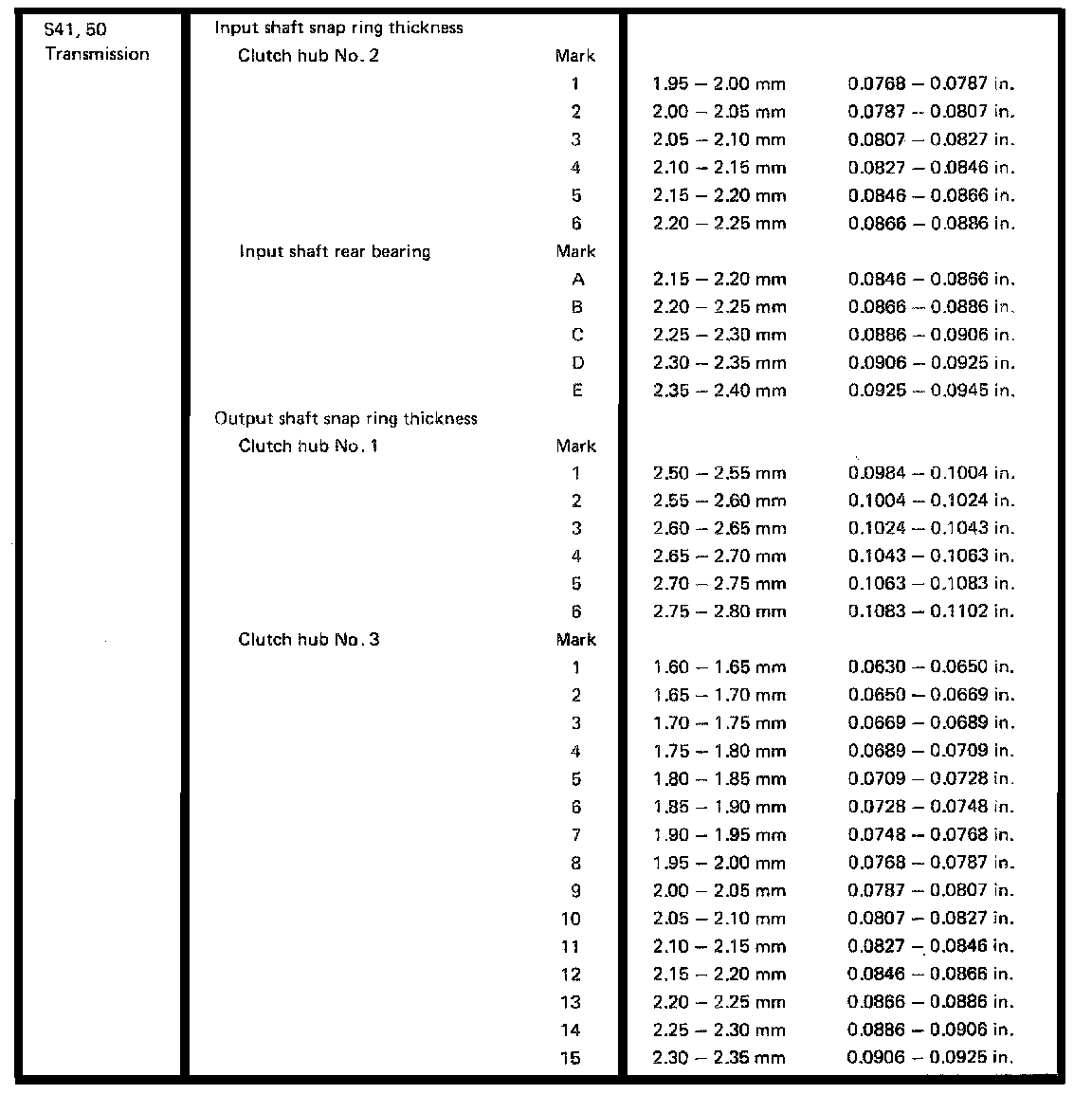

S41 4-spd M/T, Input Shaft/Clutch Hub Thickness:

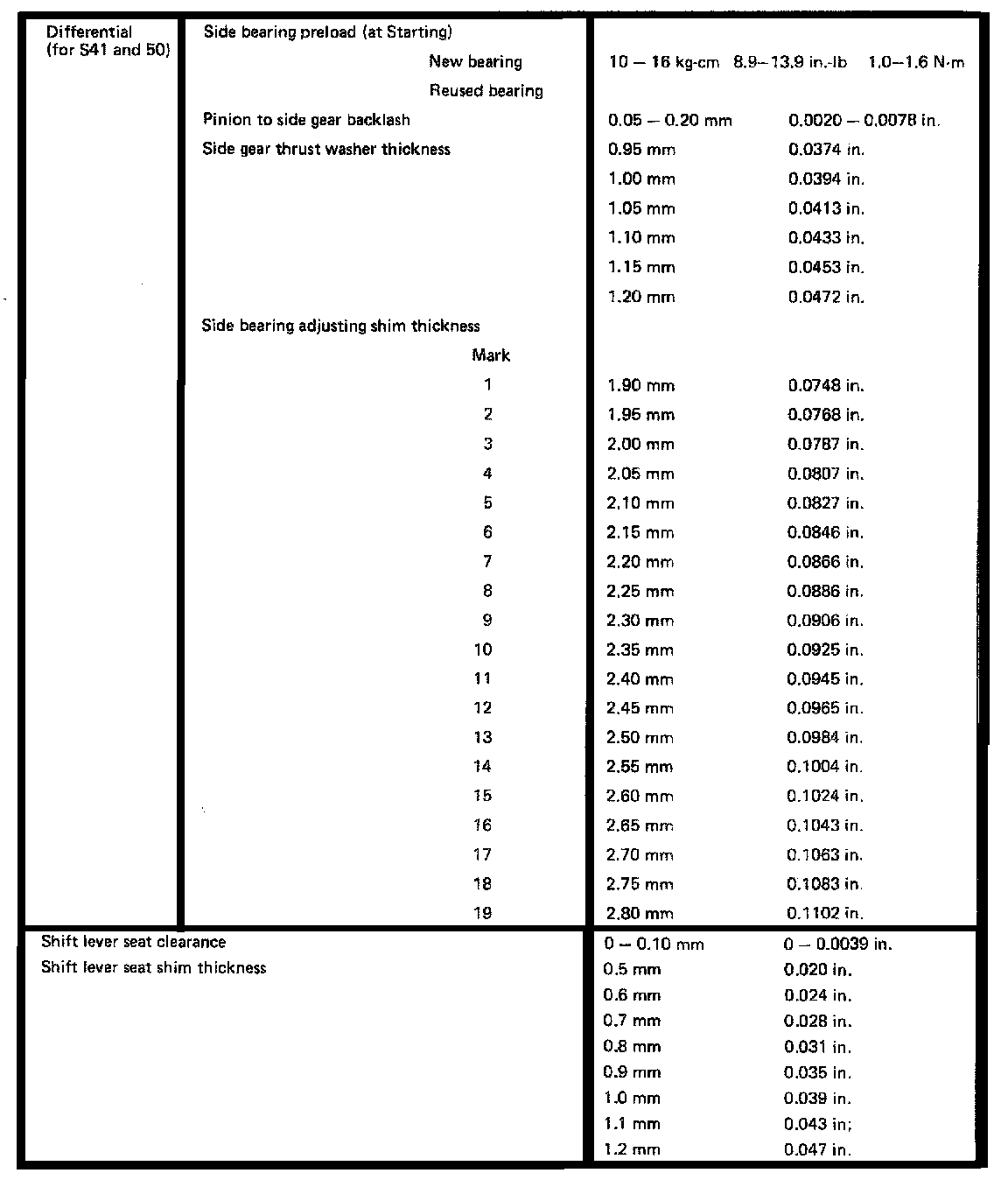

S41 4-spd M/T, Differential Clearances:
