Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
M/T Technical Data
>>
C51 5-SPD M/T
C51 5-SPD M/T

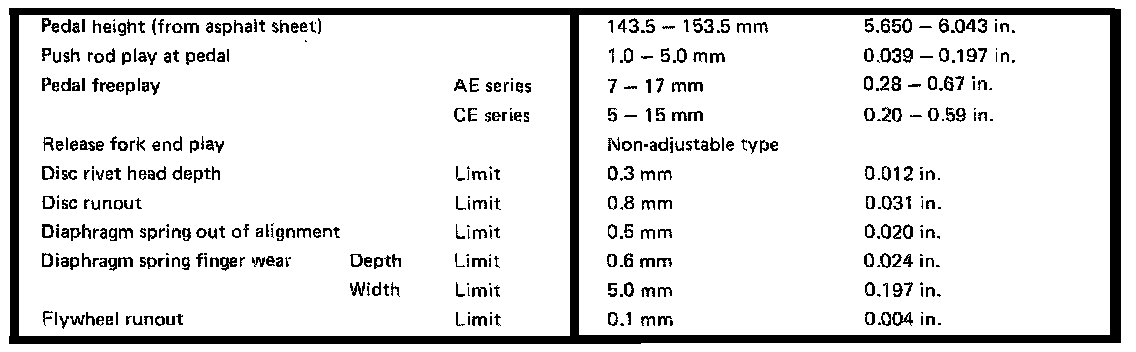

C51 5-spd M/T, Clutch Clearances:

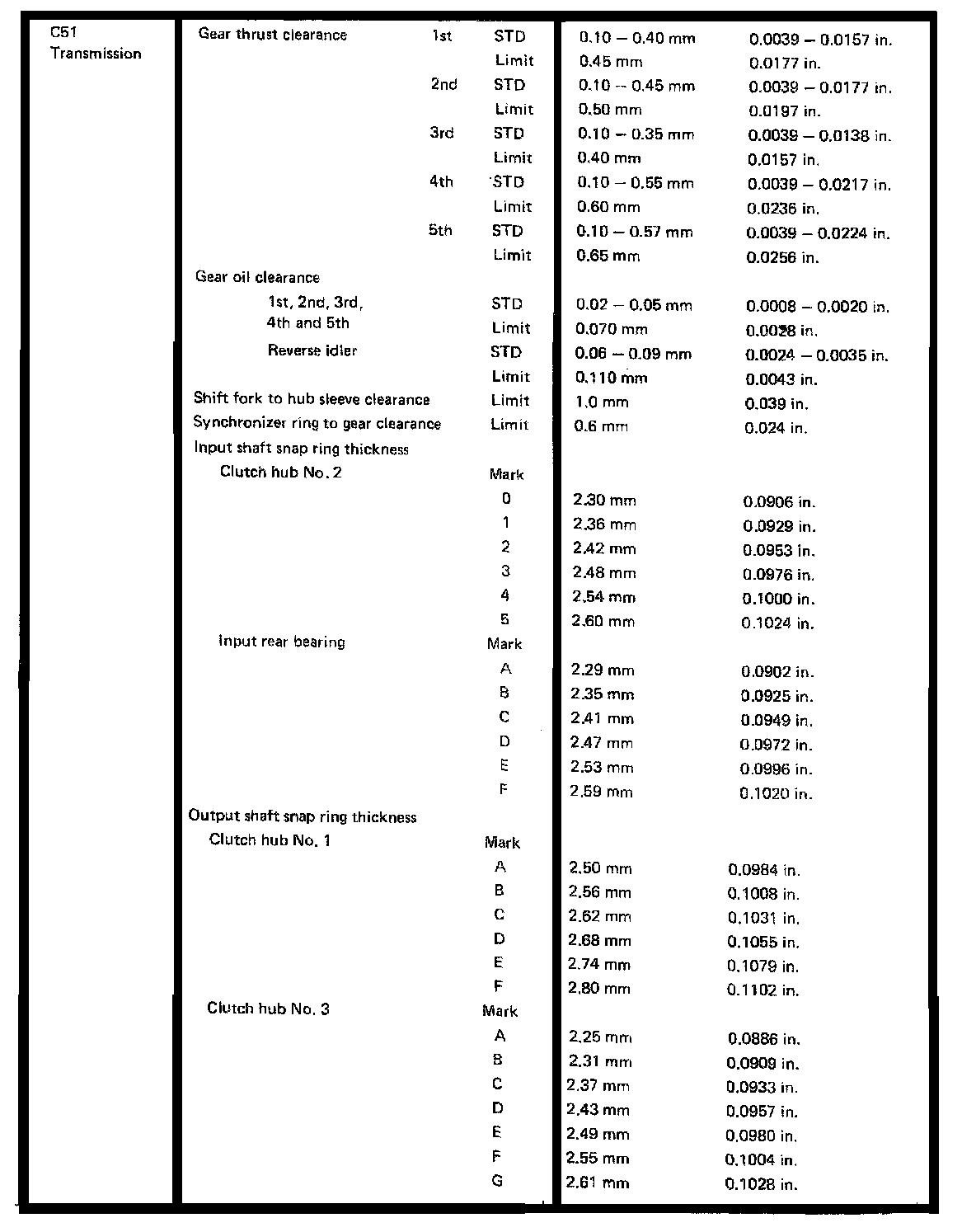

C51 5-spd M/T, Transmission Clearances:
C51 5-spd M/T, Gear/Clutch Clearances:
C51 5-spd M/T, Differential Clearances:
