A131L 3-SPD A/T

A131L 3-spd A/T, Transmission Torqe:

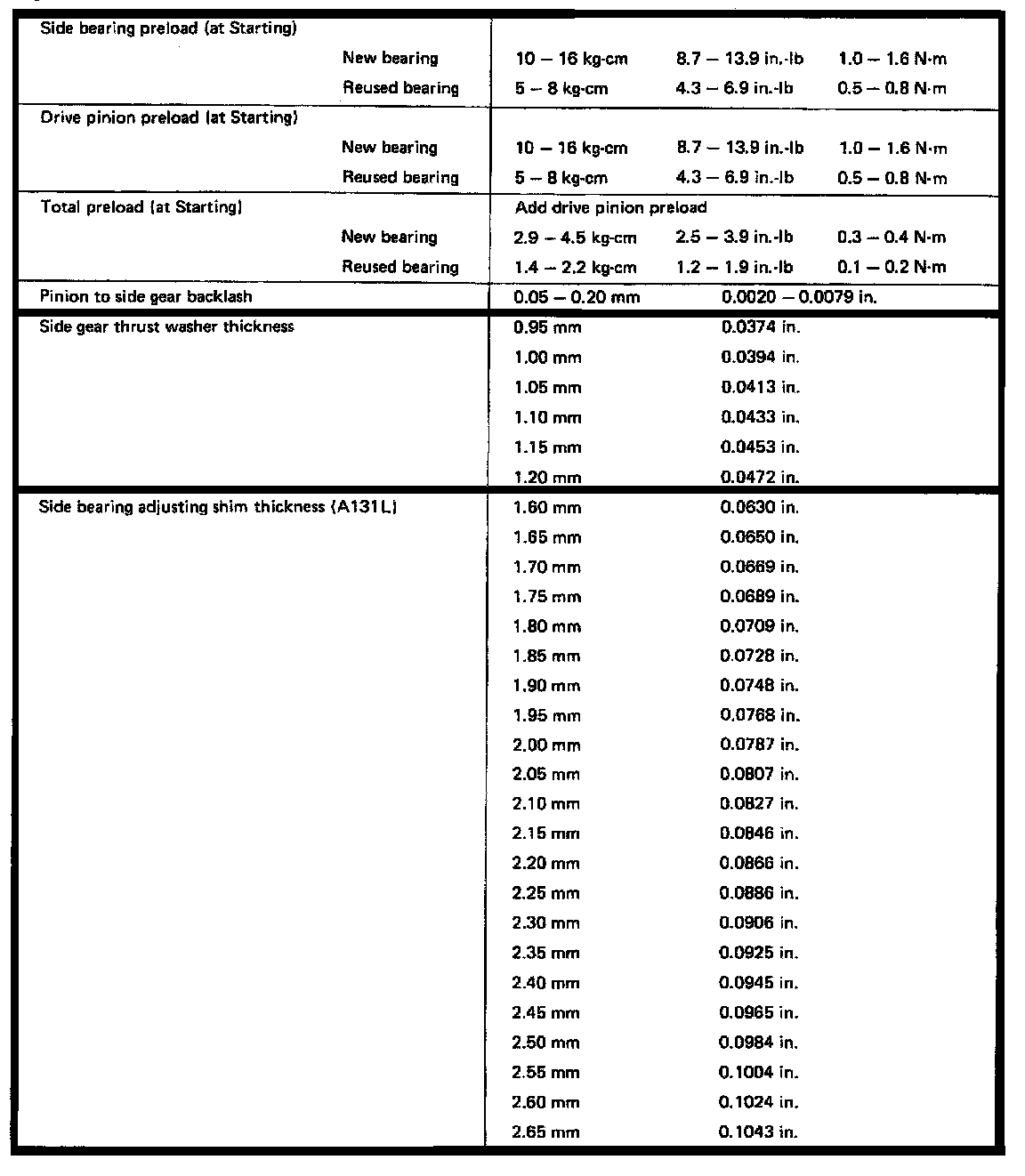

A131L 3-spd A/T, Differential Preload/Thickness:

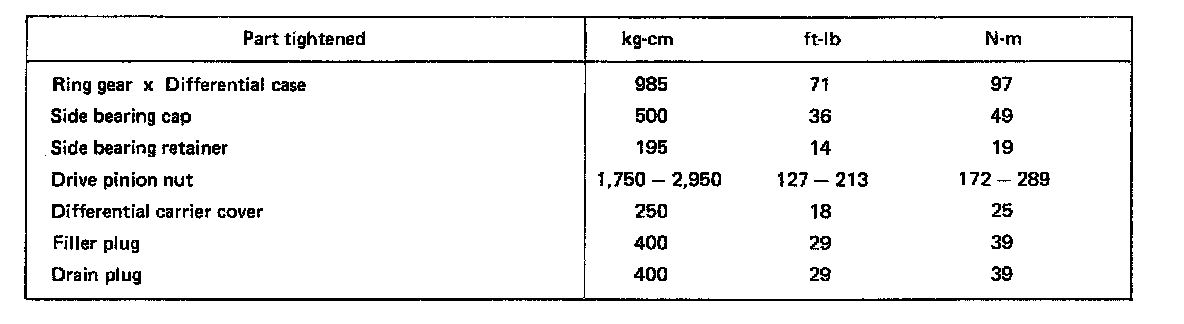

A131L 3-spd A/T, Differential Torque:
