A131L 3-SPD A/T

A131L 3-spd A/T, Line Pressure/ Shift Points:

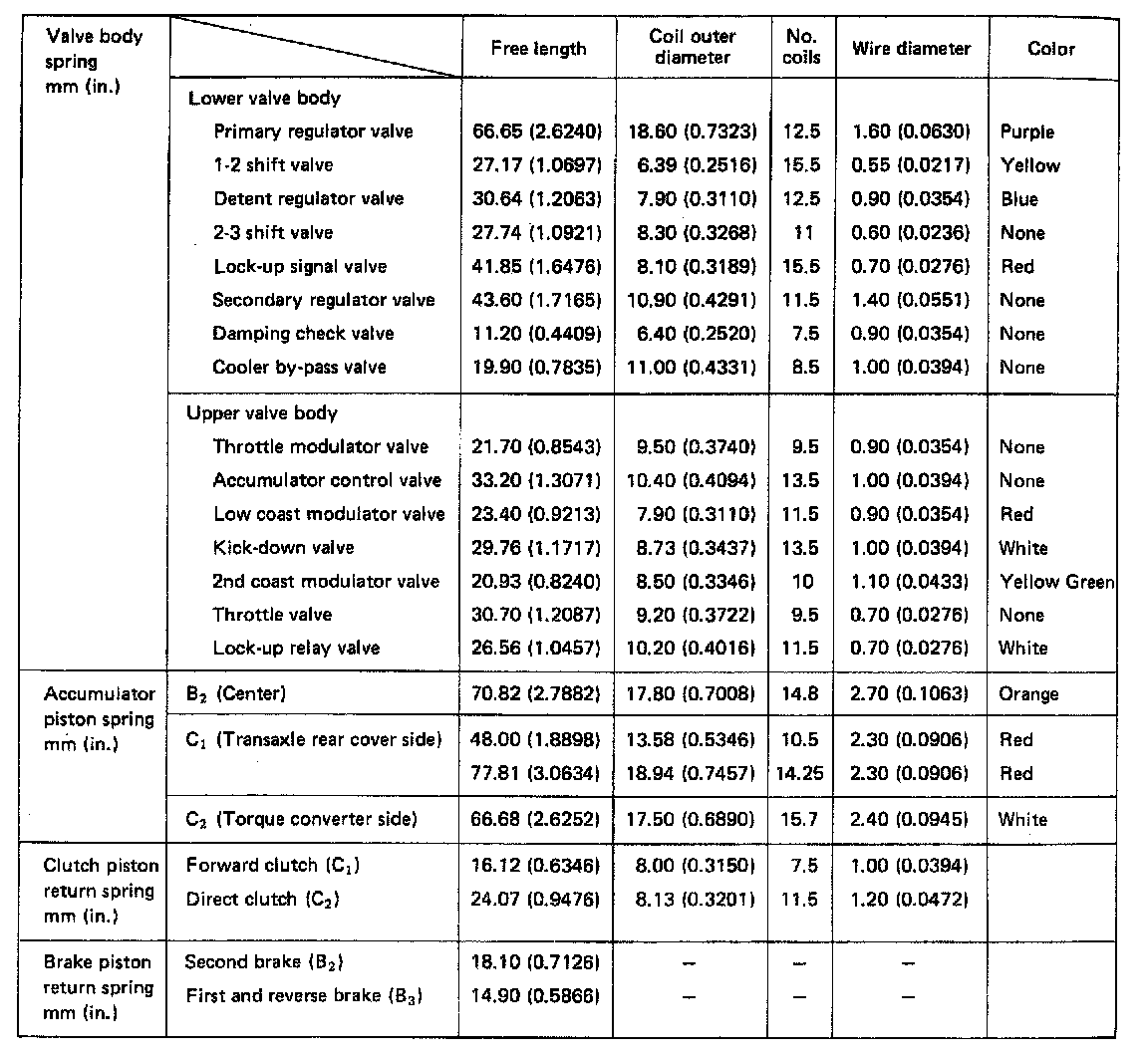

A131L 3-spd A/T, Valve Body/Spring Clearances:





A131L 3-spd A/T, Oil Pump, Clutch Diameter/Clearance:





A131L 3-spd A/T, Differential Preload/Thickness:
