Home >> Toyota >> 1984 >> Corolla/FX L4-1839cc DSL (1CLC) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Mixture Control Solenoid >> Locations >> W/4A-C Engine, Except California

W/4A-C Engine, Except California

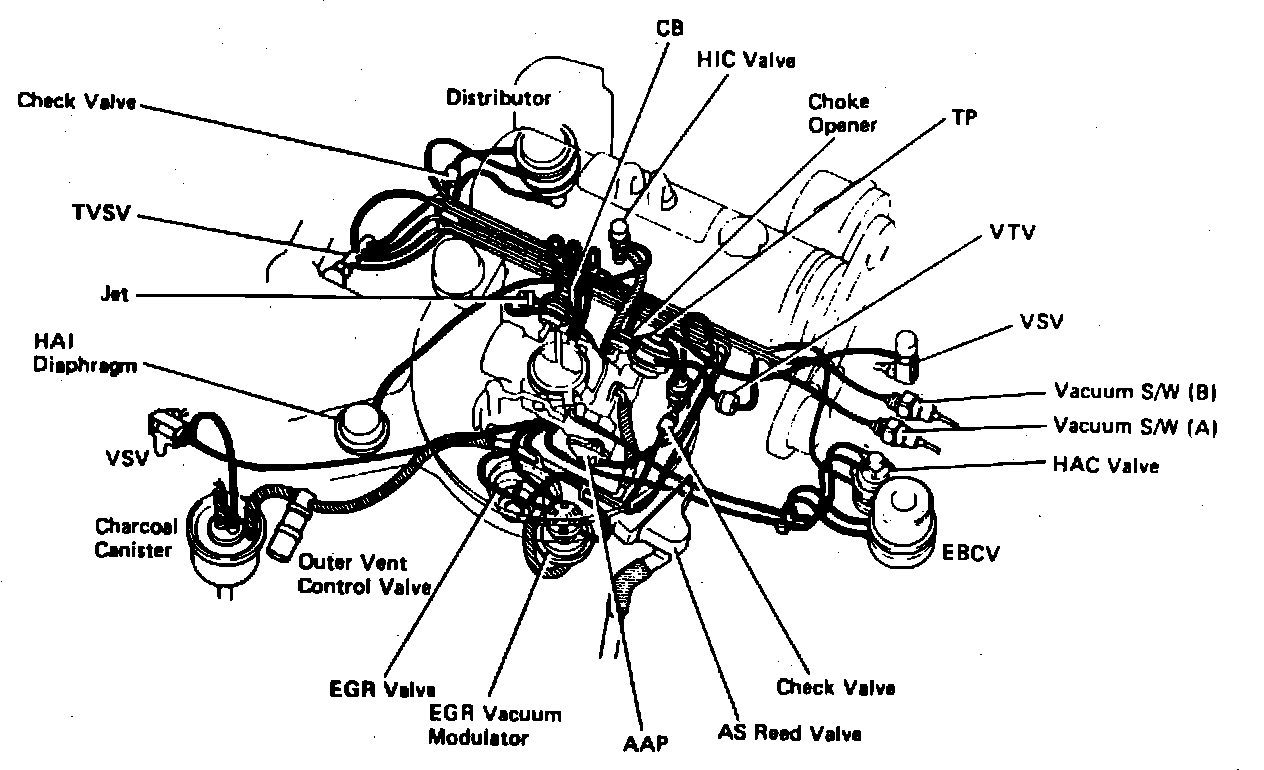

Emission Control System Components.:




Rear Side Of Engine

Applicable to: 1984 Models w/4A-C Engine & Front Wheel Drive Except California
