Corolla/FX L4-1839cc DSL (1CLC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Backup Lamp
Backup Lamp

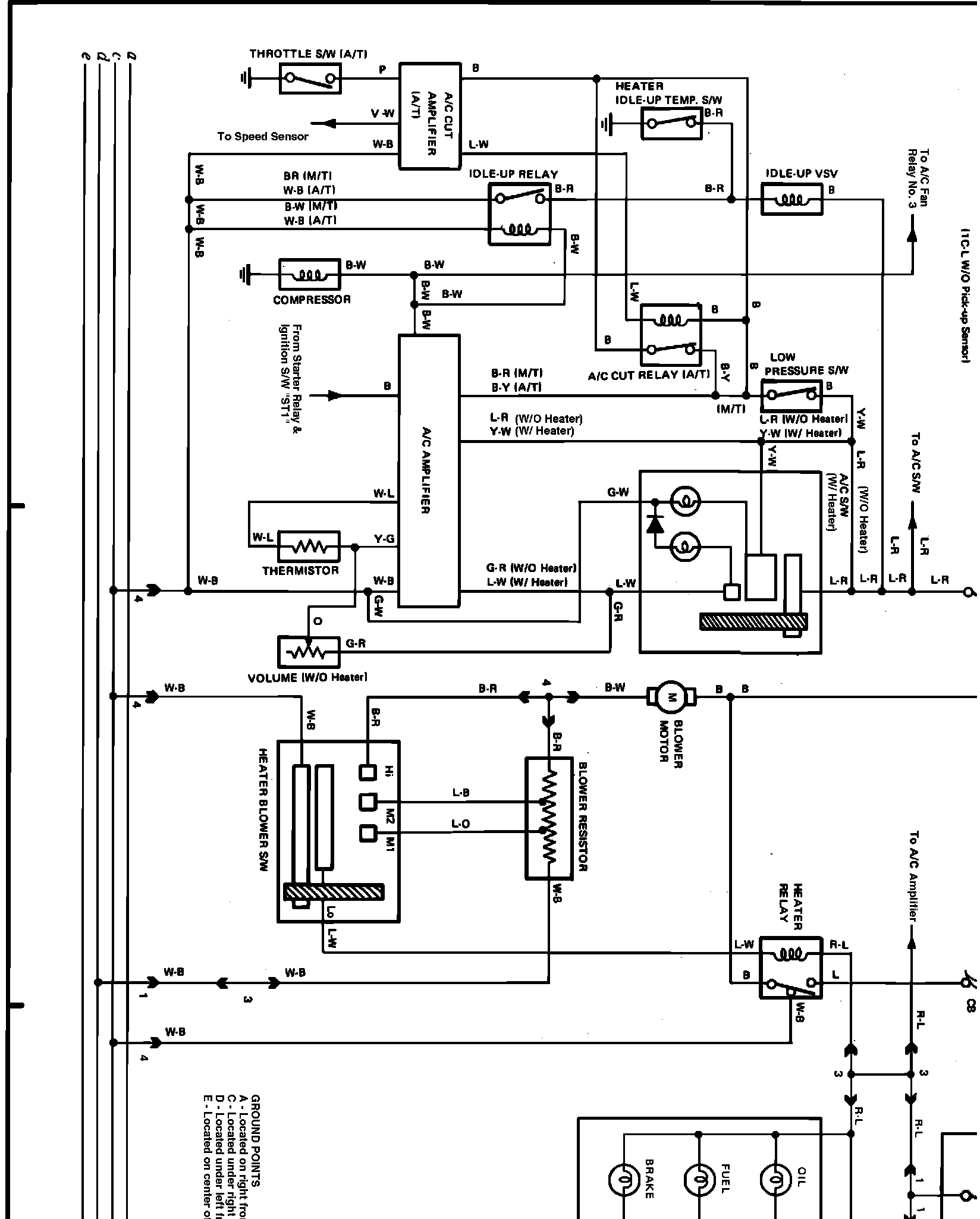

�TY�uYZ�Y��Y��Y��Y �YFig. 20b Heating & A/C, Combination Meter, Back-Up Lights, Seat Belt, Rear Defogger, Cruise Control, Stop Lights, and Rear View Mirror Wiring Diagram:
