Arm Replacement Procedure
Basic Parts RequirementName Part No. Quantity
Per Vehicle
Rear Suspension Arm, RH 48703-16903 1
Rear Suspension Arm, LH 48707-16903 1
* Component Kit 04006-02116 2
*The component kit has been developed especially for this campaign. For your information, the kit contains the following:
Name Part No. Quantity
Rear Spring Bumper 48306-19045 1
Toe-In Adjust Cam 48409-16010 1
Toe-In Adjust Plate 48452-16010 1
Spring Washer 94512-01200 2
Nut 90170-12193 2
Bolt 90101-12039 1
Washer 90201-12452 1
Bolt 91611-40612 1
There are alternate procedures to the suspension arm replacement:
^ If the attaching nuts and bolts are not seized, the rear control arms may be removed and replaced following Repair Procedure "4A", page 11.
^ If the attaching nuts and bolts are seized, the rear suspension member should be removed. Follow Repair Procedure "4B" for removing control arms from the rear suspension member, page 12.
Related Component Description:
Related Component Description:
1. Rear suspension member
2. Rear control arms
3. Rear coil springs
4. Rear shock absorbers
5. Rear stabilizer bar
6. Stoppers
4A Repair Procedure
Please refer to appropriate repair manual for detailed instructions.
4A.1 Removal of control arms:
A. Remove rear wheels.
B. Remove rear brake drums.
C. Remove parking brake cable holding bolt.
D. Disconnect rear brake tube at rear control arm.
E. Remove rear wheel backing plate assembly, and carefully suspended using a wire.
F. Remove stabilizer bar.
G. Remove rear shock absorbers and suspension coil springs.
H. Before removing suspension arms mark location of cam plate on crossmember bracket.
I. Remove rear control arms.
Note: If the rear control arm installation bolts and nuts are seized due to rust, etc., and can't be easily removed, proceed to Step 4B, page 12.
4A.2 Installation of control arms:
A. Mount the rear control arms onto the rear suspension member.
B. Align cam plate with mark placed on crossmember bracket during disassembly.
C. Install each component by following the removal procedure in reverse order.
D. Fill the brake system with brake fluid and bleed all air from the brake system.
E. Check and align rear wheels as required.
4A.3 Proceed to Section II Completion Label Installation.
Removal of Suspension Arms with Sized Mounting Bolts
Rear Suspension Member:
1. Remove rear suspension member.
2. Avoiding the welded bead area, make 6 center punch marks on each side of the control arm as shown in Fig. 24. (Distance between punch marks will be about 8 mm).
Rubber Bushing:

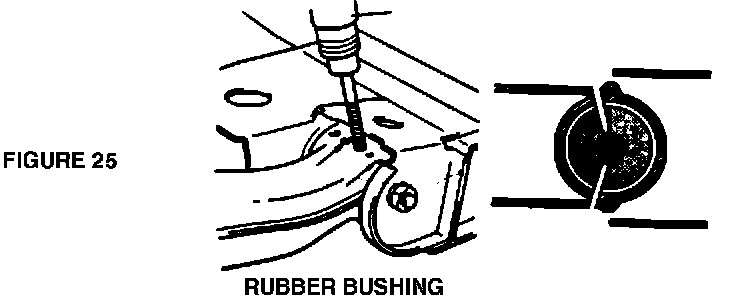

3. Using punch marks for reference, drill holes into the rubber bushing using a 4 mm drill. Enlarge the holes using a 6.5 mm drill. Fig. 25.
Rear Suspension Arm Separation:
4. Use either an air chisel or a hand chisel, cut the area between the holes. Separate the rear suspension arm from the member. Fig. 26.
Bushing Removal:

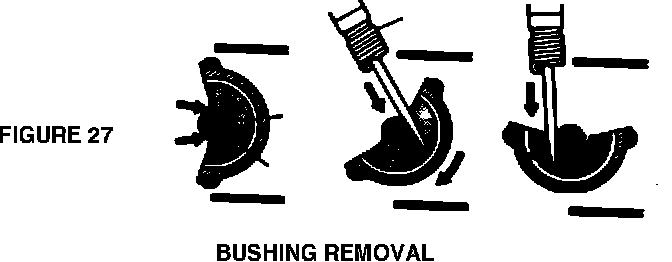

5. Use an air chisel or hand chisel to remove the remaining portion of the bushing. Insert the chisel between rubber and collar to cut the remaining portion. Apply the chisel forcefully to turn the bushing so its cut-off surface is facing upward. Prying the chisel towards you, apply it forcefully downward to remove bushing. Fig. 27.
Remove the Nut:

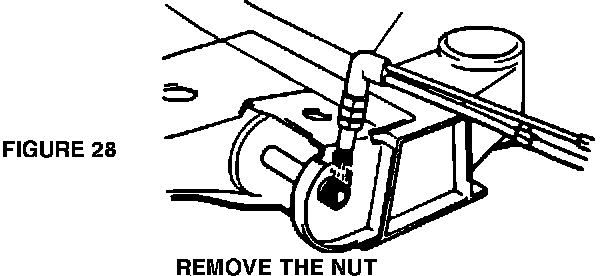

6. Loosen and remove the nut. If the nut is seized and does not come loose, heat the nut using an oxyacetylene torch. Do not apply heat directly to the bracket or bolt. Fig. 28.
Remove the Collar:
7. Drive the bolt out to remove the collar.
Note: (1) For outer collar of bushing the bolt can be driven out easily by widening its slit with a chisel. Fig. 29.
Inner Collar of Bushing:
(2) For inner collar of bushing, the bolt can be driven out easily by heating the collar with an oxyacetylene torch. When heating the collar, avoid heating the bracket or bolt. Fig. 30.
When the rear control arm is removed from the rear suspension member using an oxyacetylene torch, the following anti-rust treatment should be performed.
8. Remove the bracket areas, oxidized film from heating, and mud from the rear suspension member outer surfaces with a wire brush and sandpaper.
9. Apply an even coat of undercoating P/N 00216-10000 with a paint brush to the area where rust or oxidized film were removed. Apply sufficient undercoating to ensure coverage of the bracket areas.
10. Install control arms to the suspension member.
11. Install suspension member to body.
12. Return to Step 3A.2.
