Fuse: Locations



Fus Locations

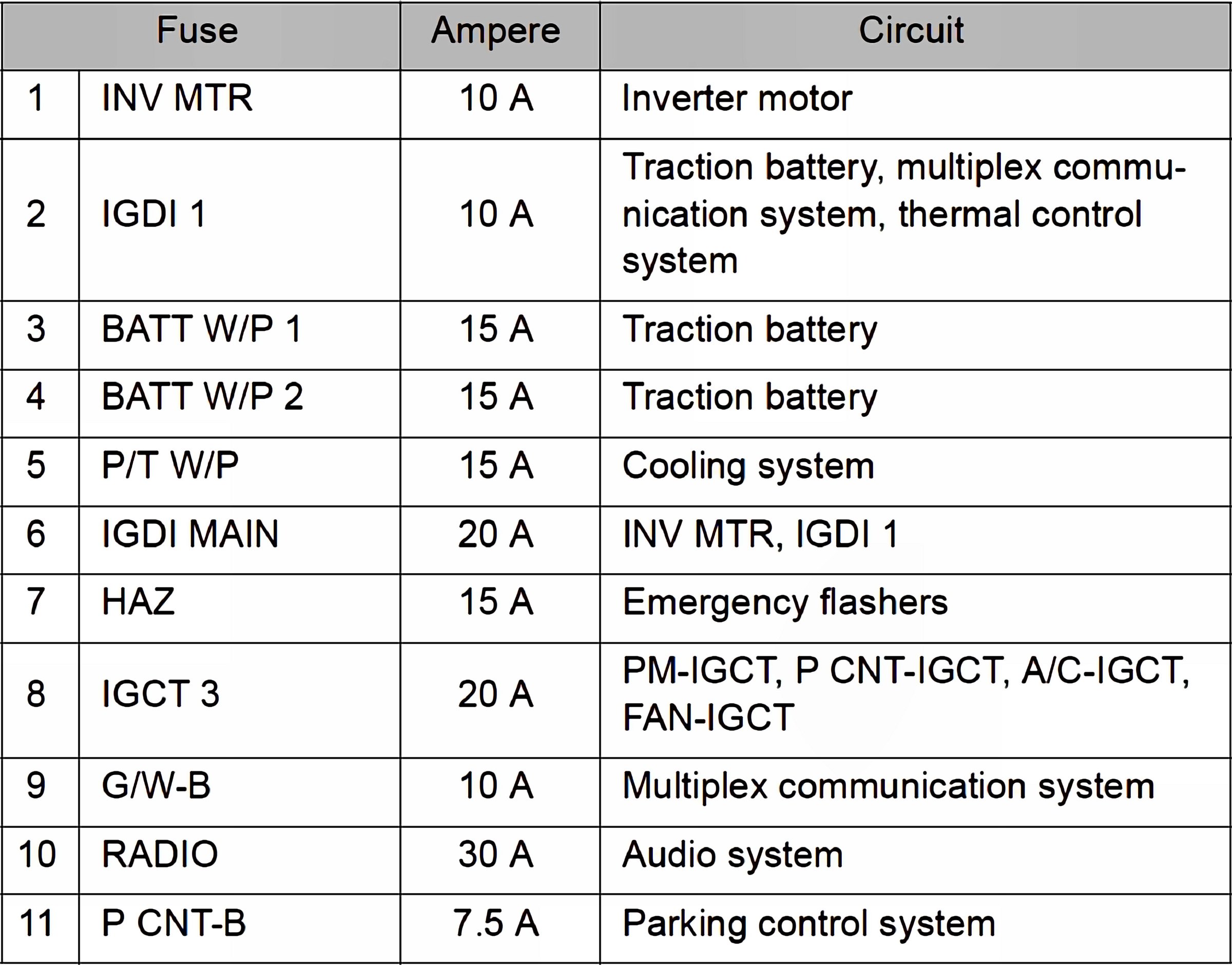

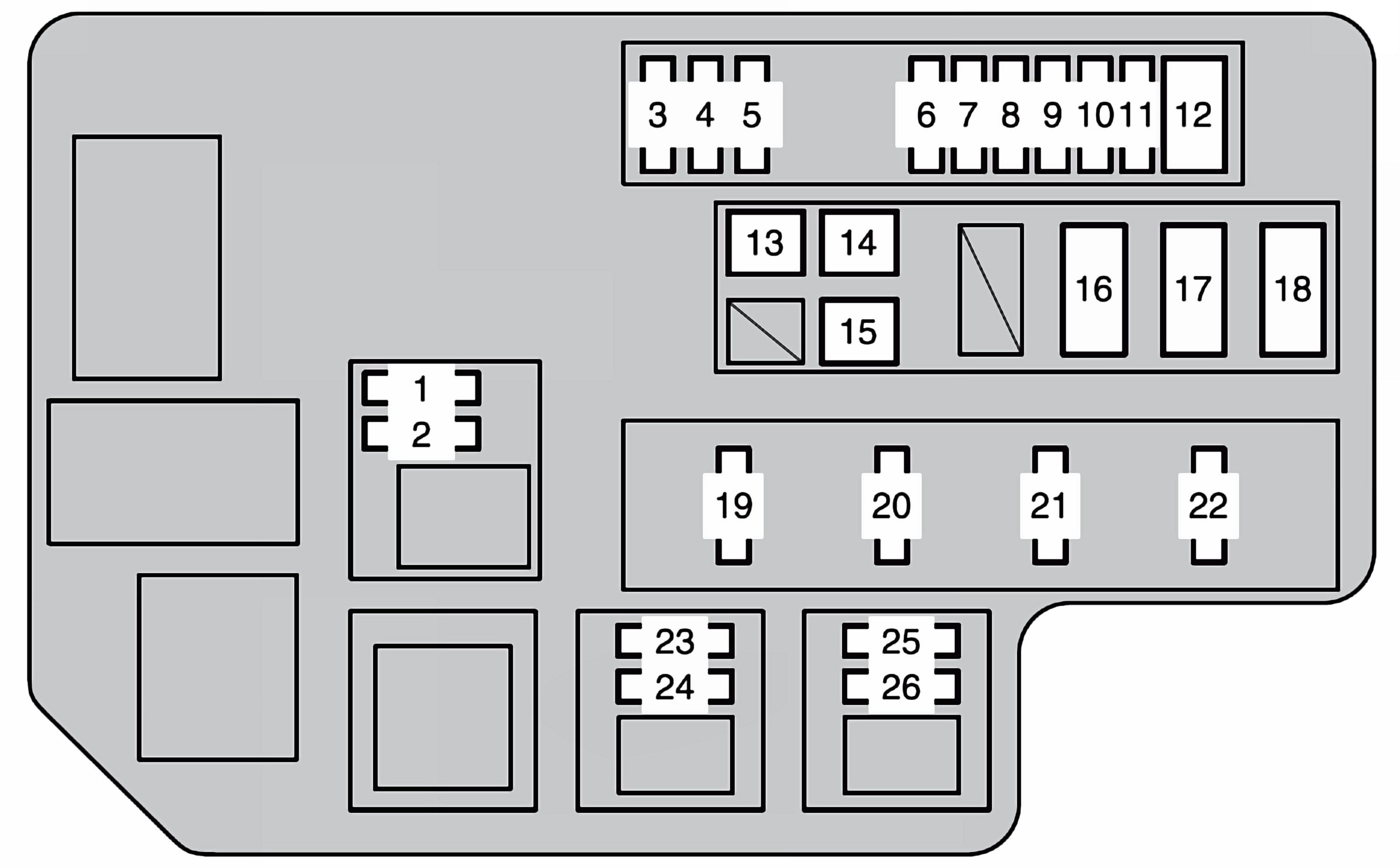

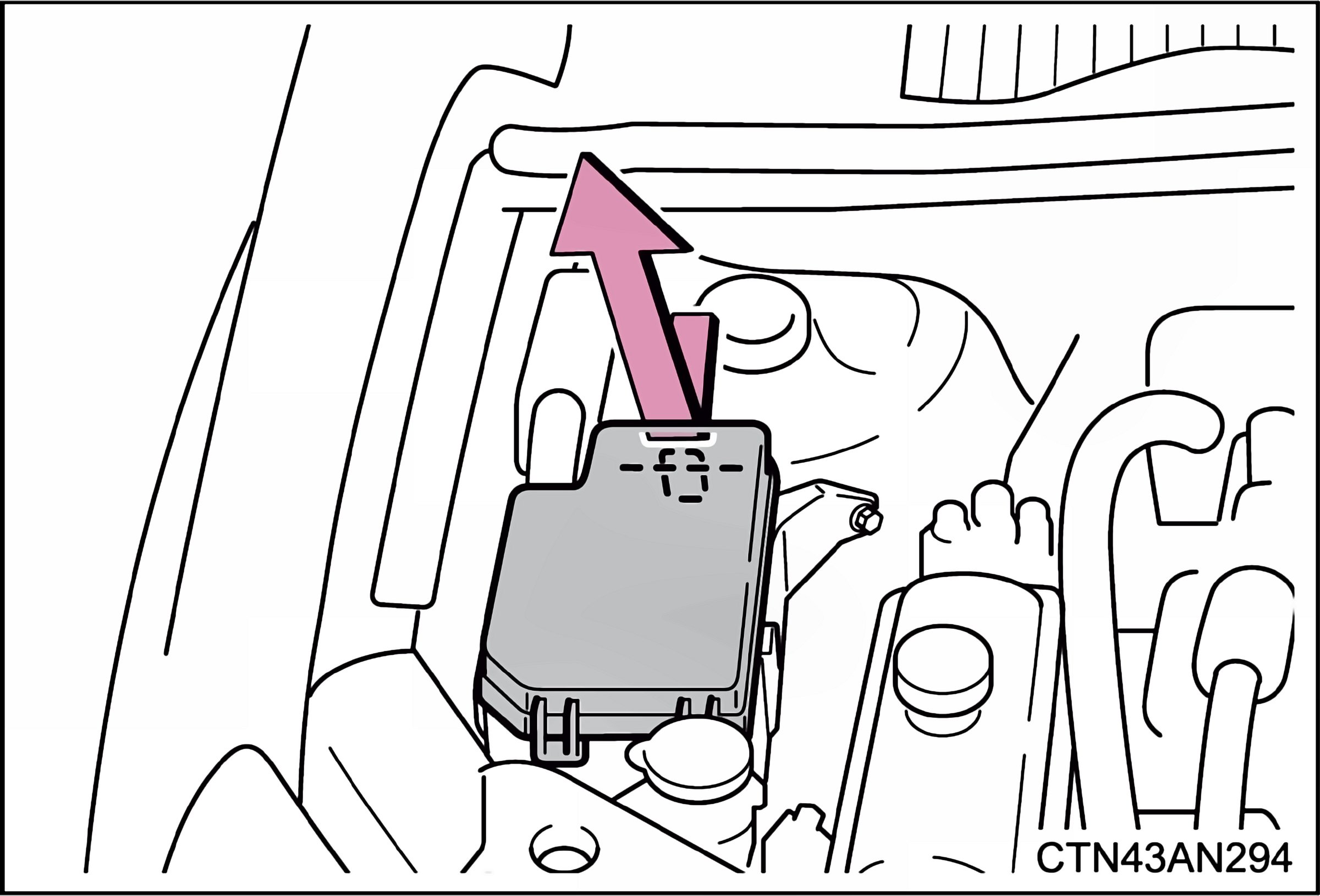

Motor Compartment

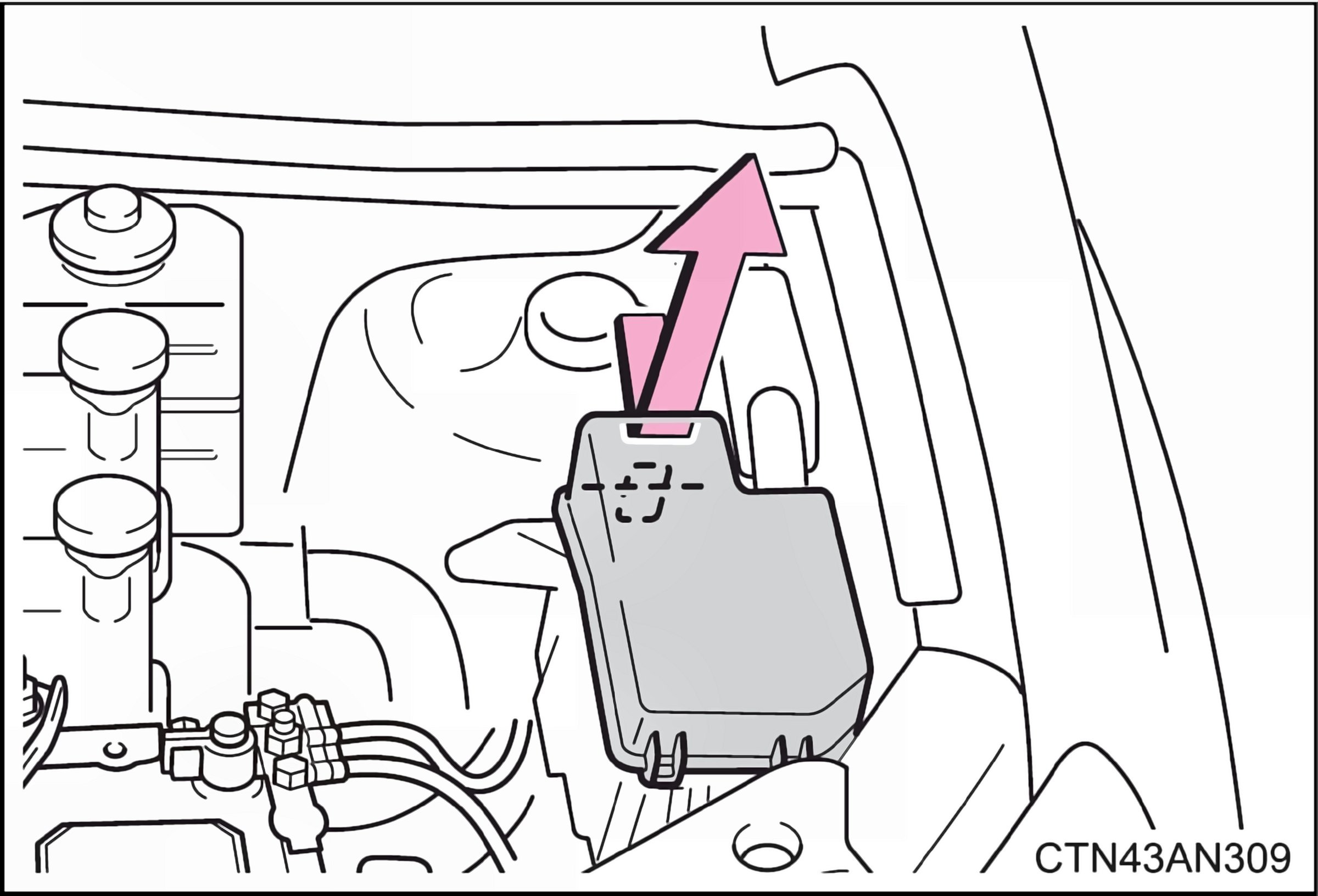

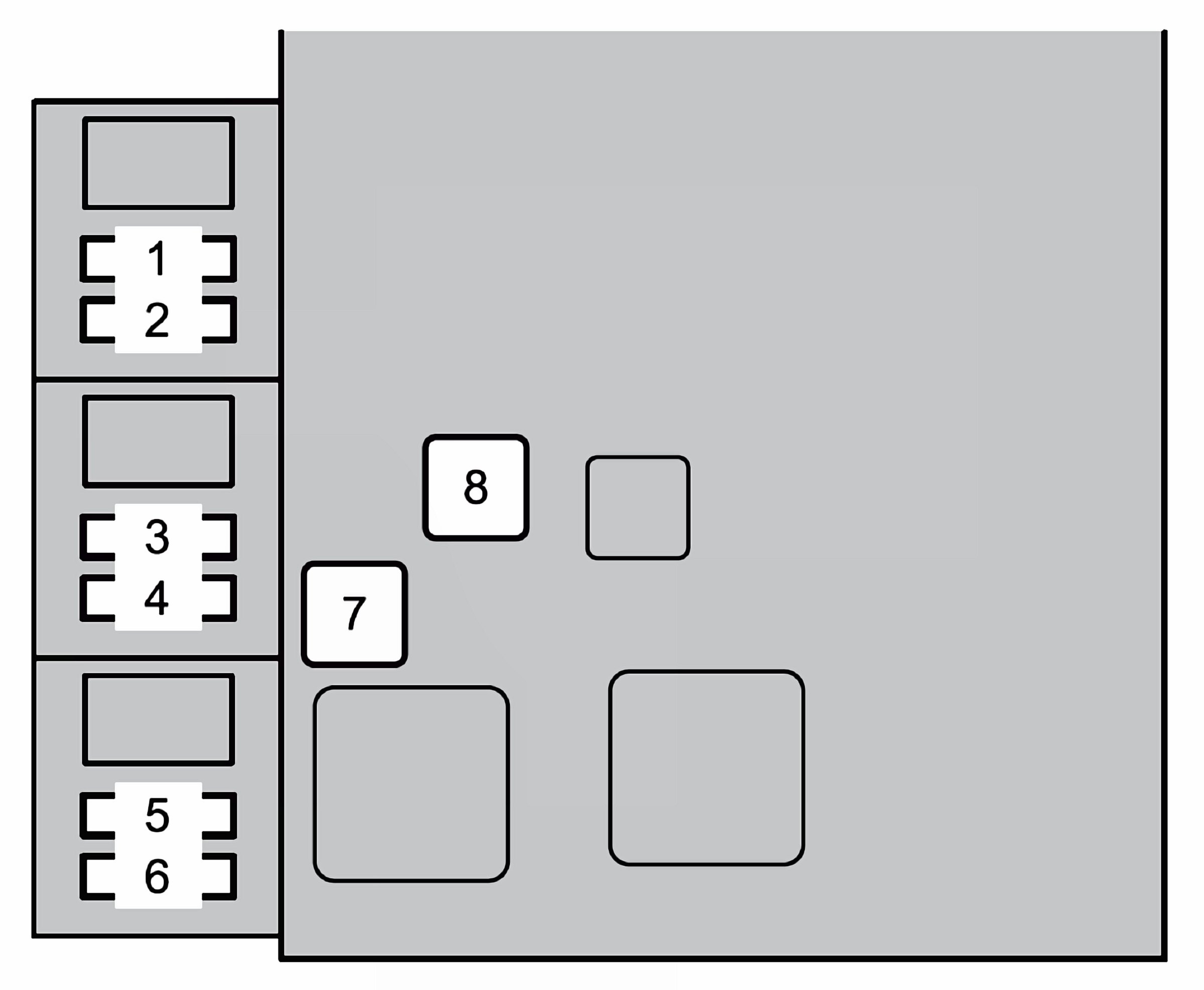

Type A:

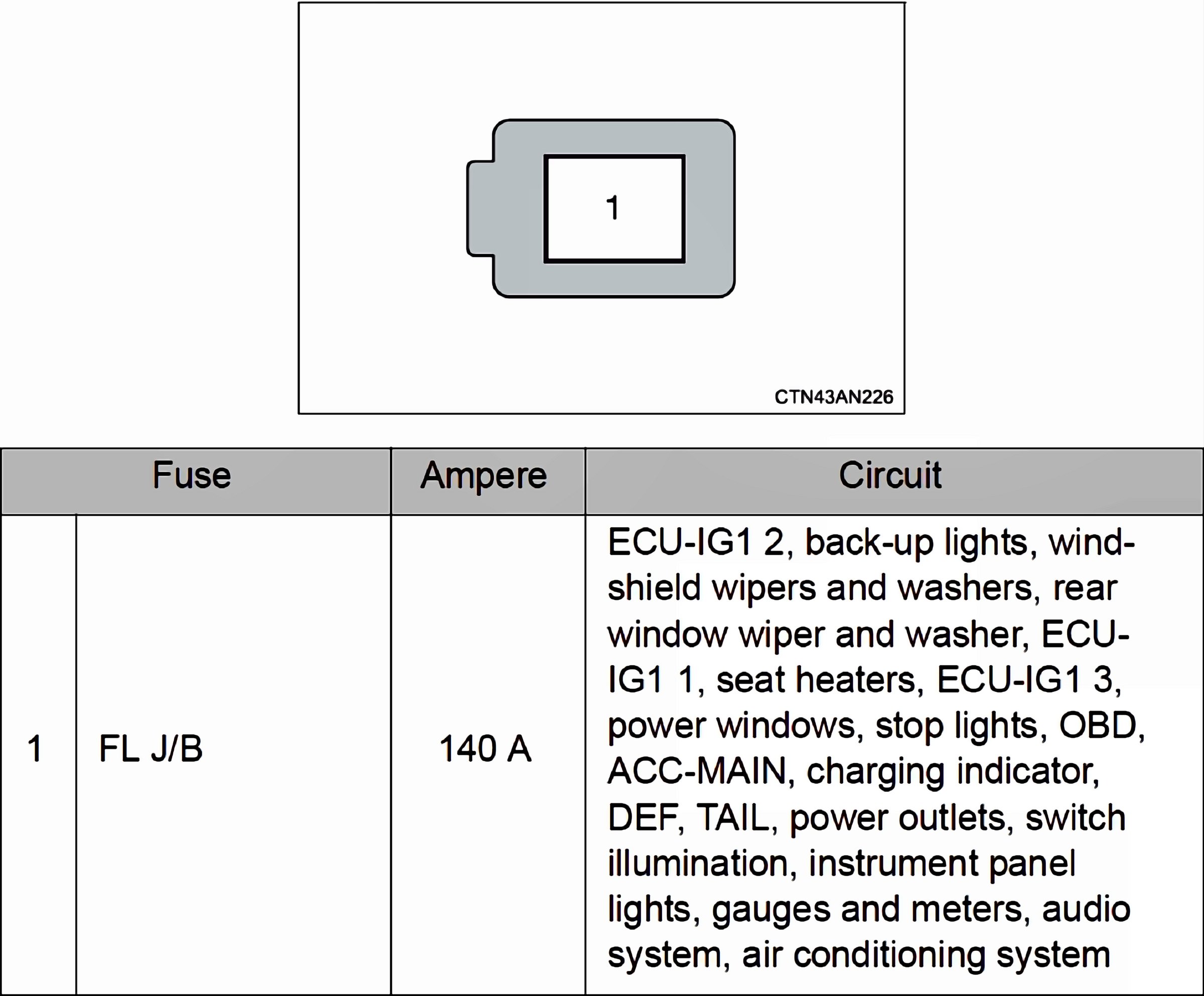

Type B:

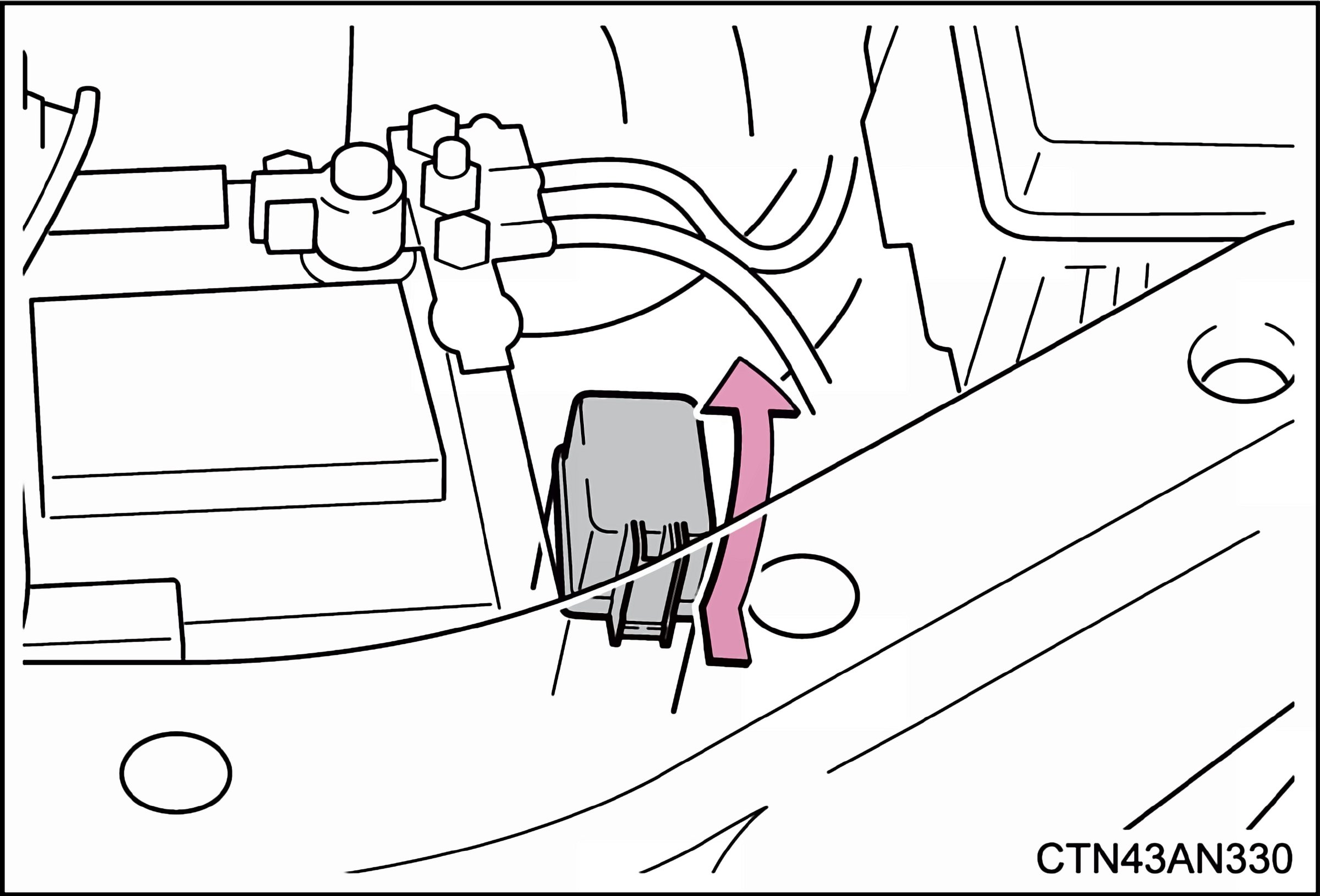

Type C:










Under the Instrument Panel

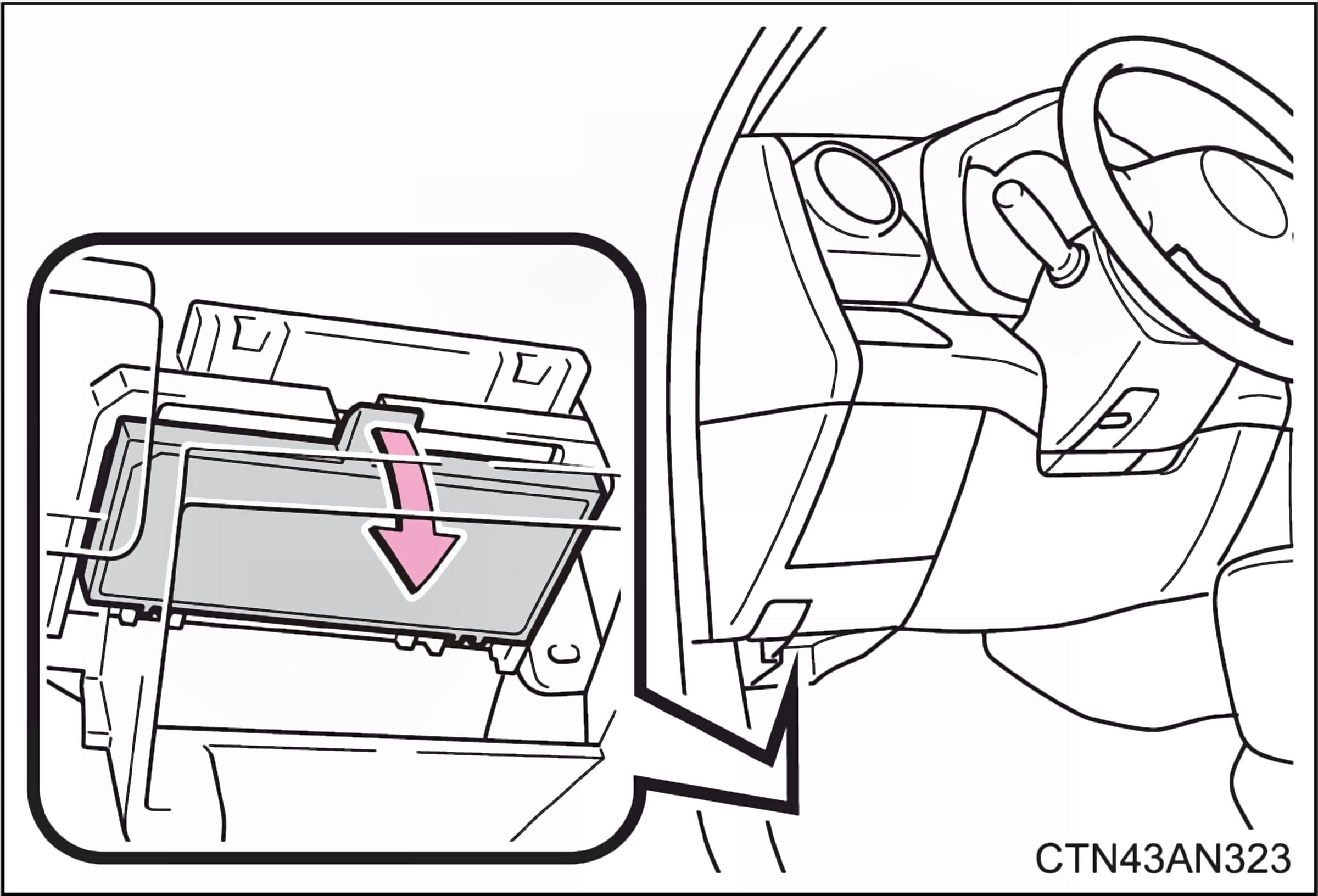

Under The Instrument Panel:

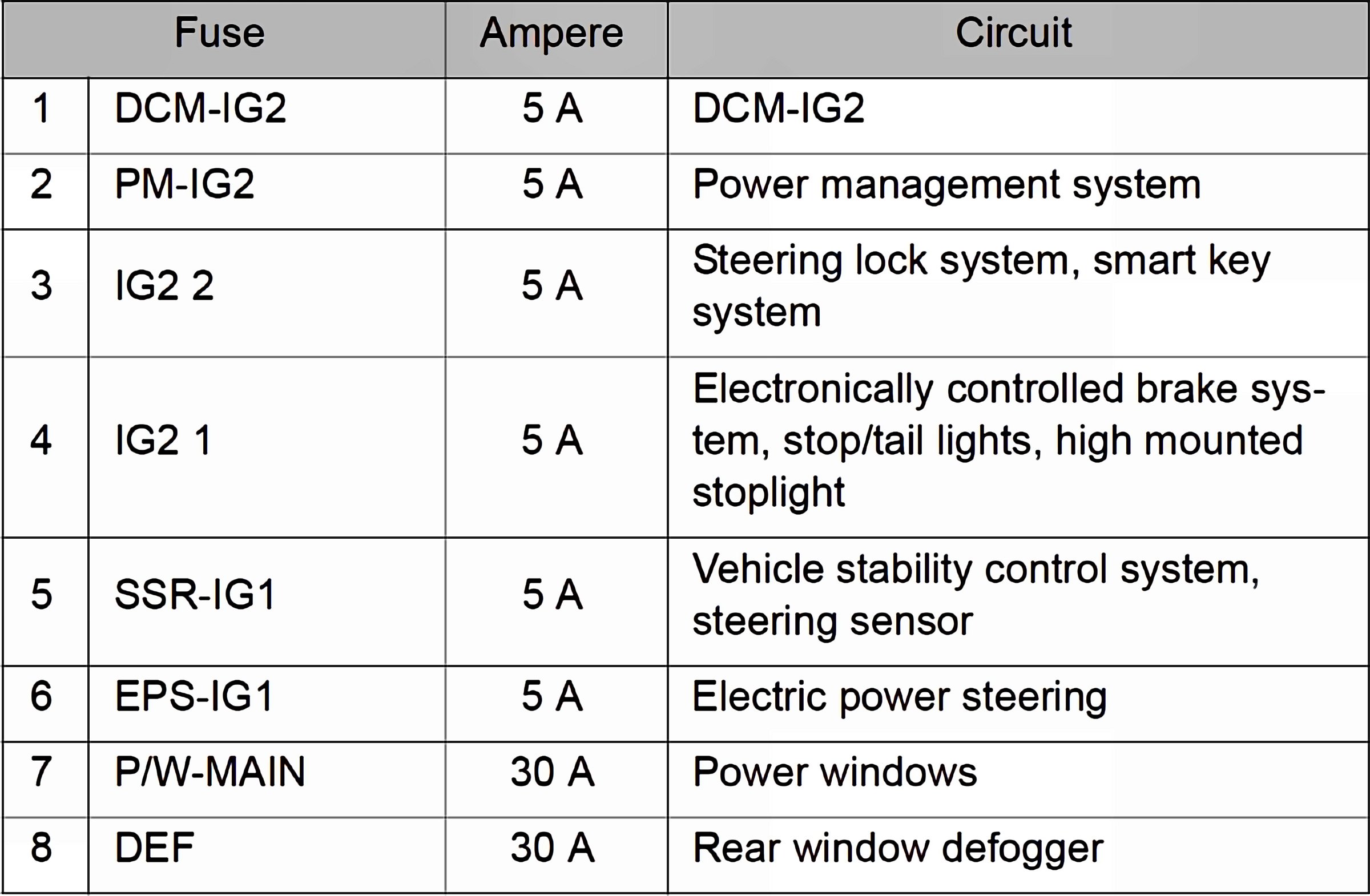

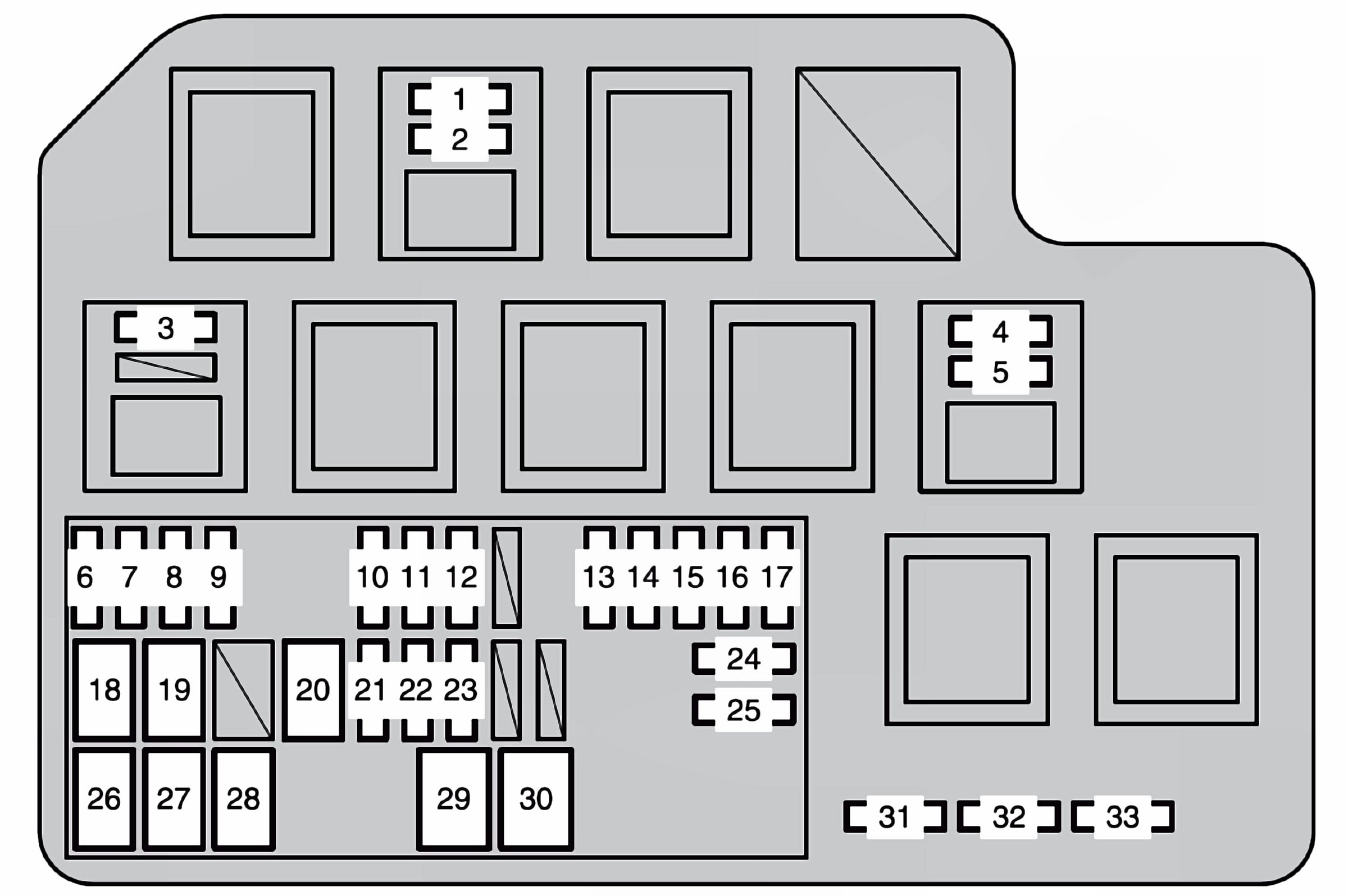

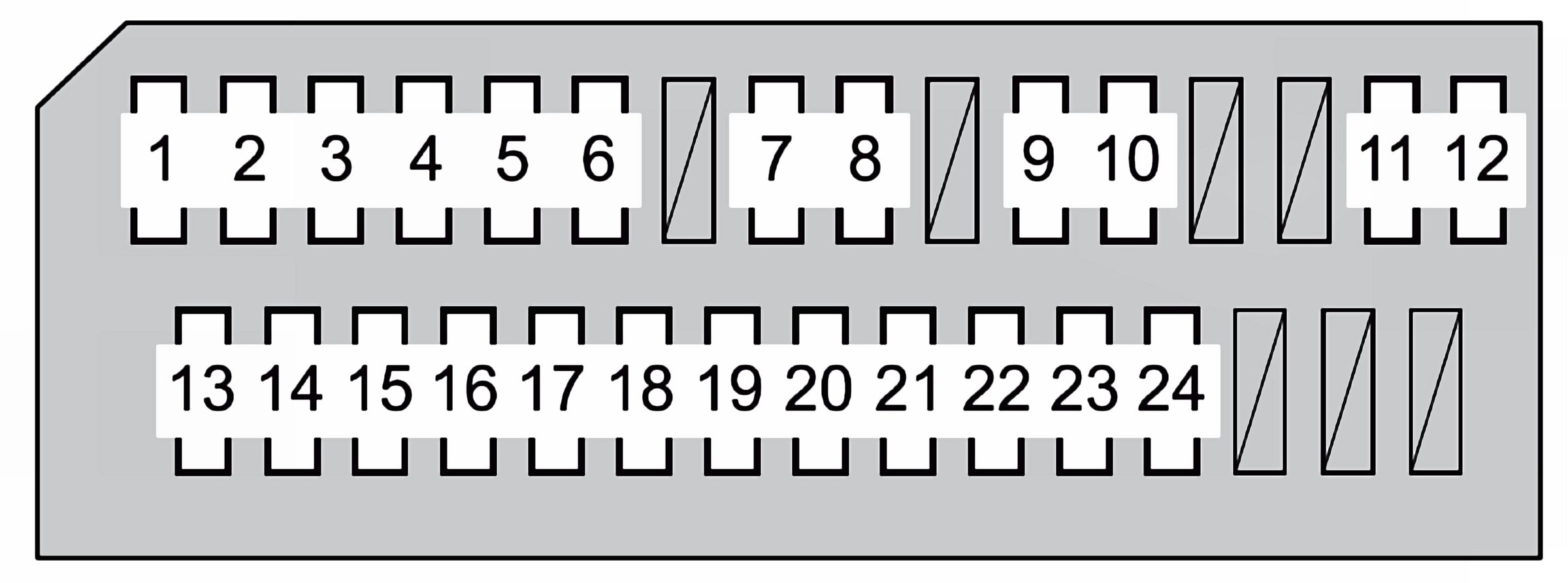

Front Side Of Fuse Block:










Underside View:





Fuse Block Underside View:
