Home >> Toyota Truck >> 1999 >> Tacoma PreRunner Extra Cab 2WD L4-2.7L (3RZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - A/T >> Throttle Position Sensor/Switch >> Diagrams >> Electrical Diagrams

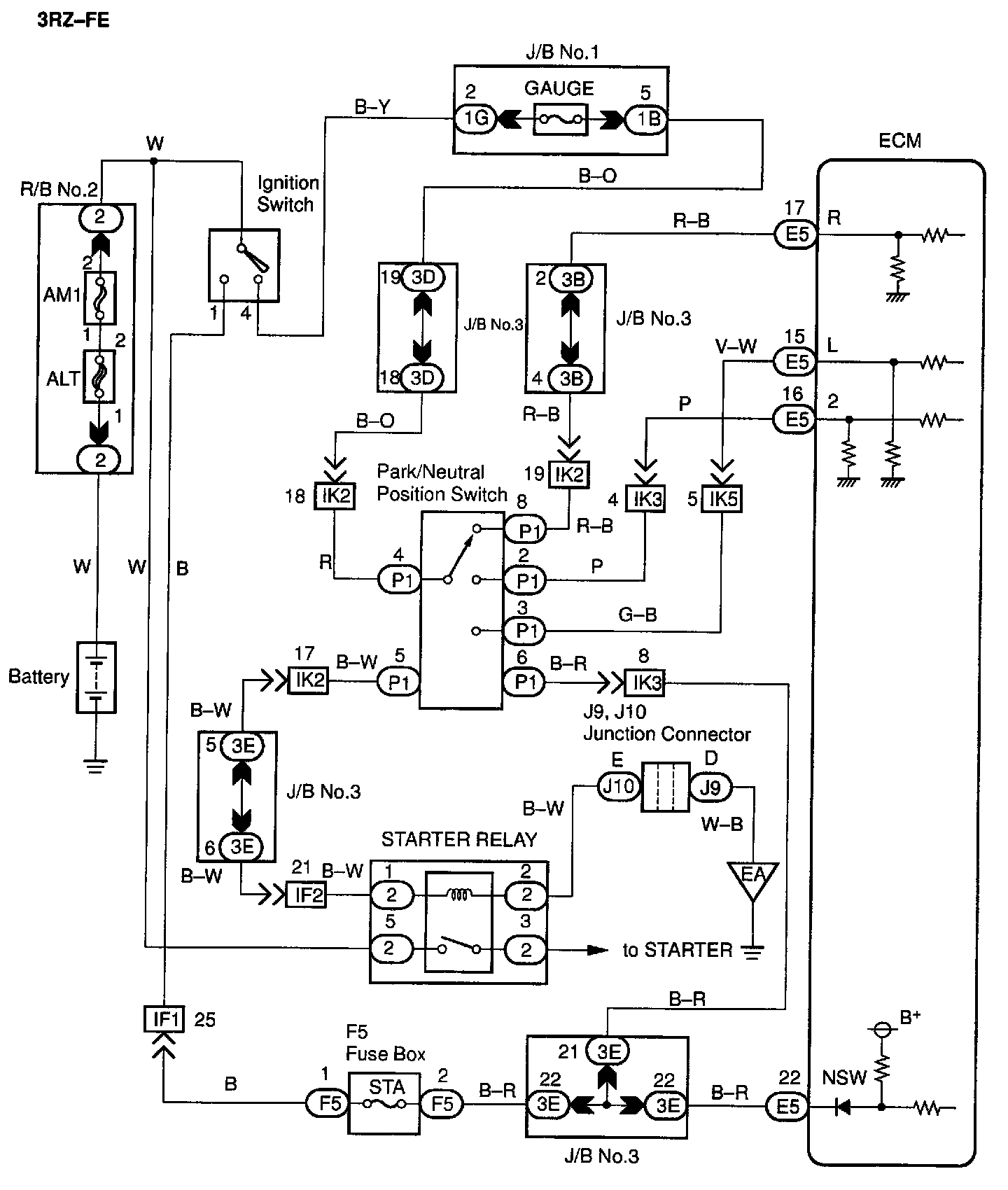

Electrical Diagrams
