Home >> Toyota Truck >> 1999 >> Tacoma PreRunner Extra Cab 2WD L4-2.7L (3RZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications >> General Torque Specifications

General Torque Specifications

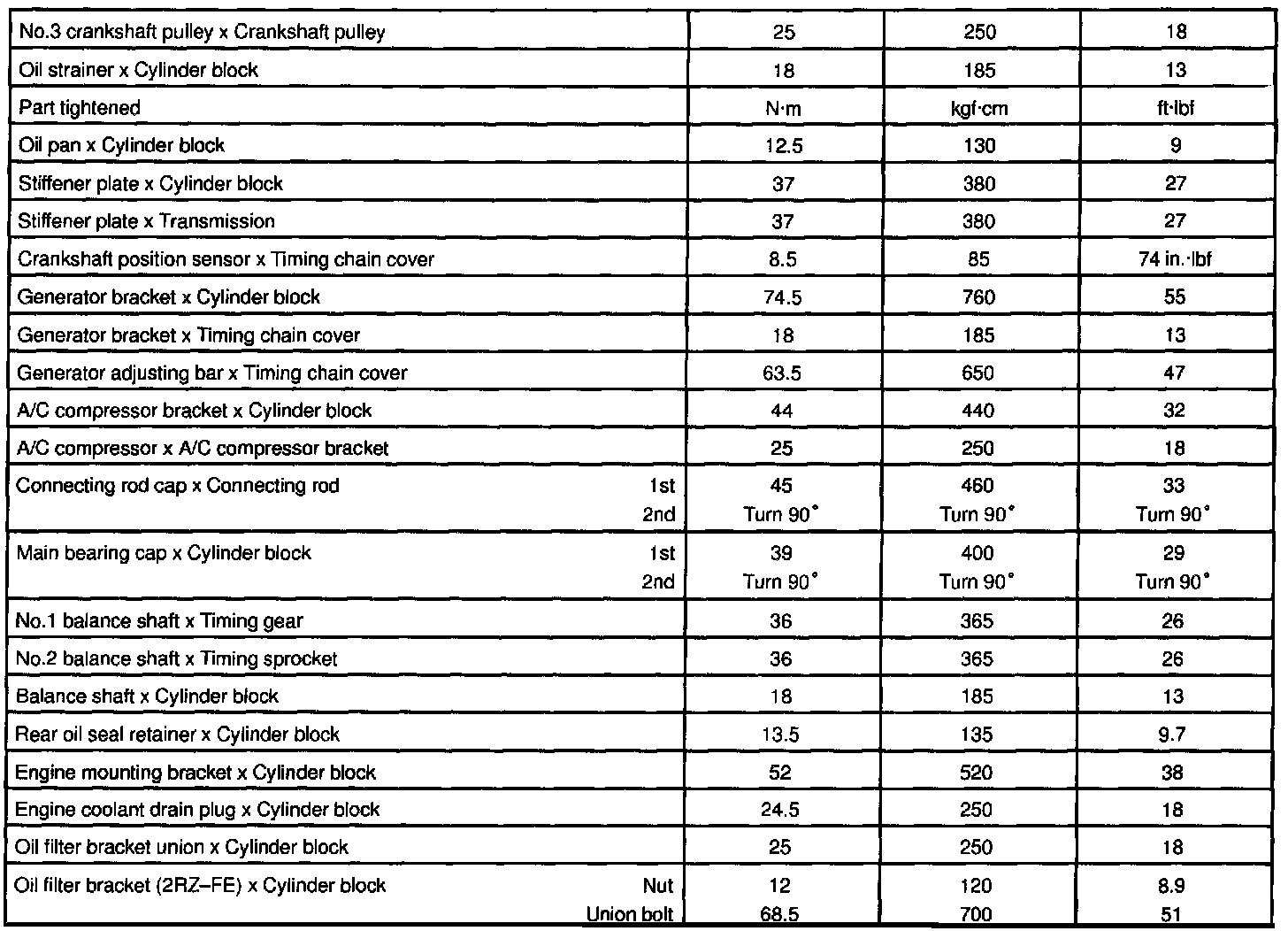

2RZ/3RZ-FE Engine Mechanical Torque:

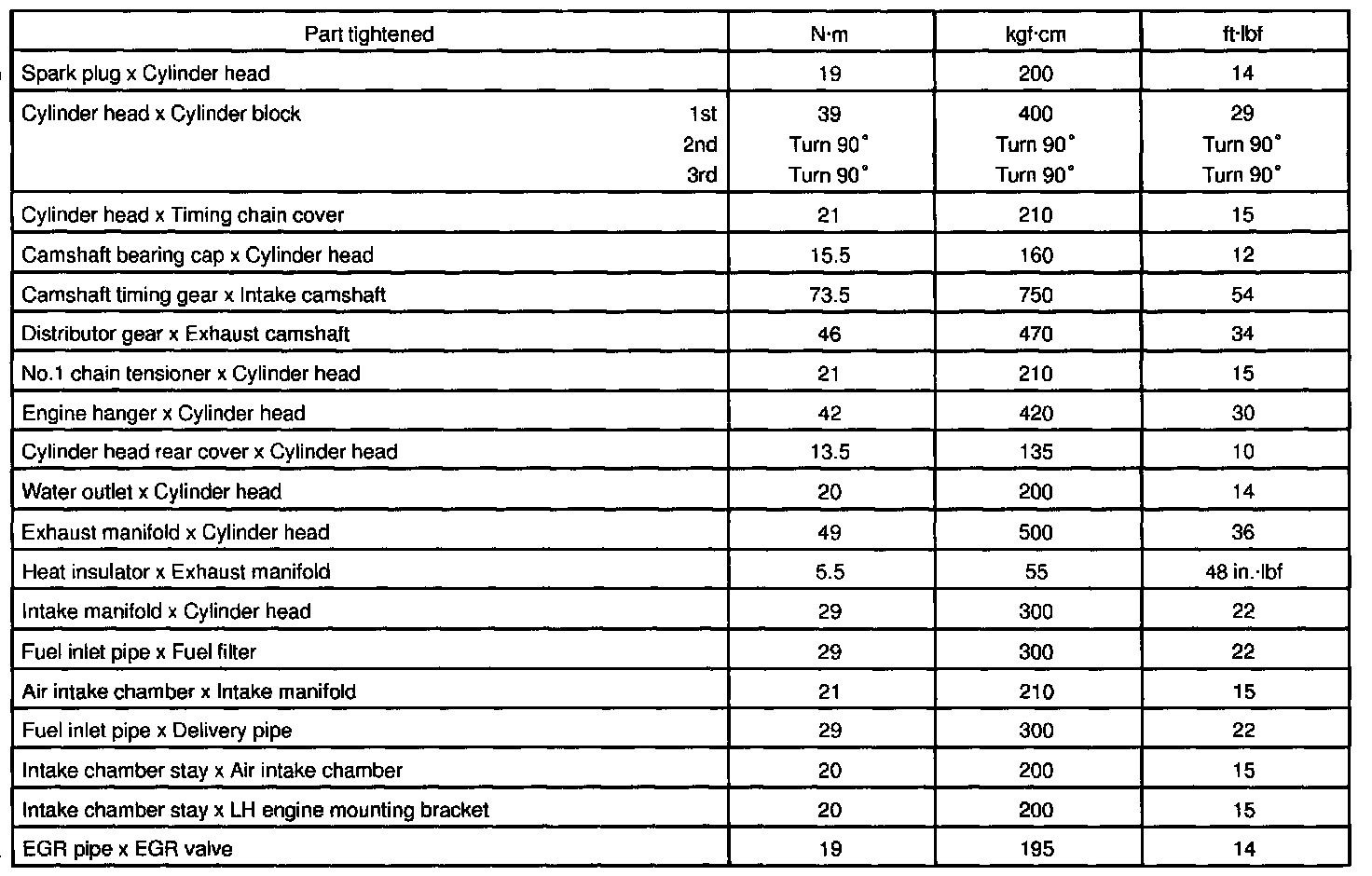

2RZ/3RZ-FE Engine Torque Cont.:

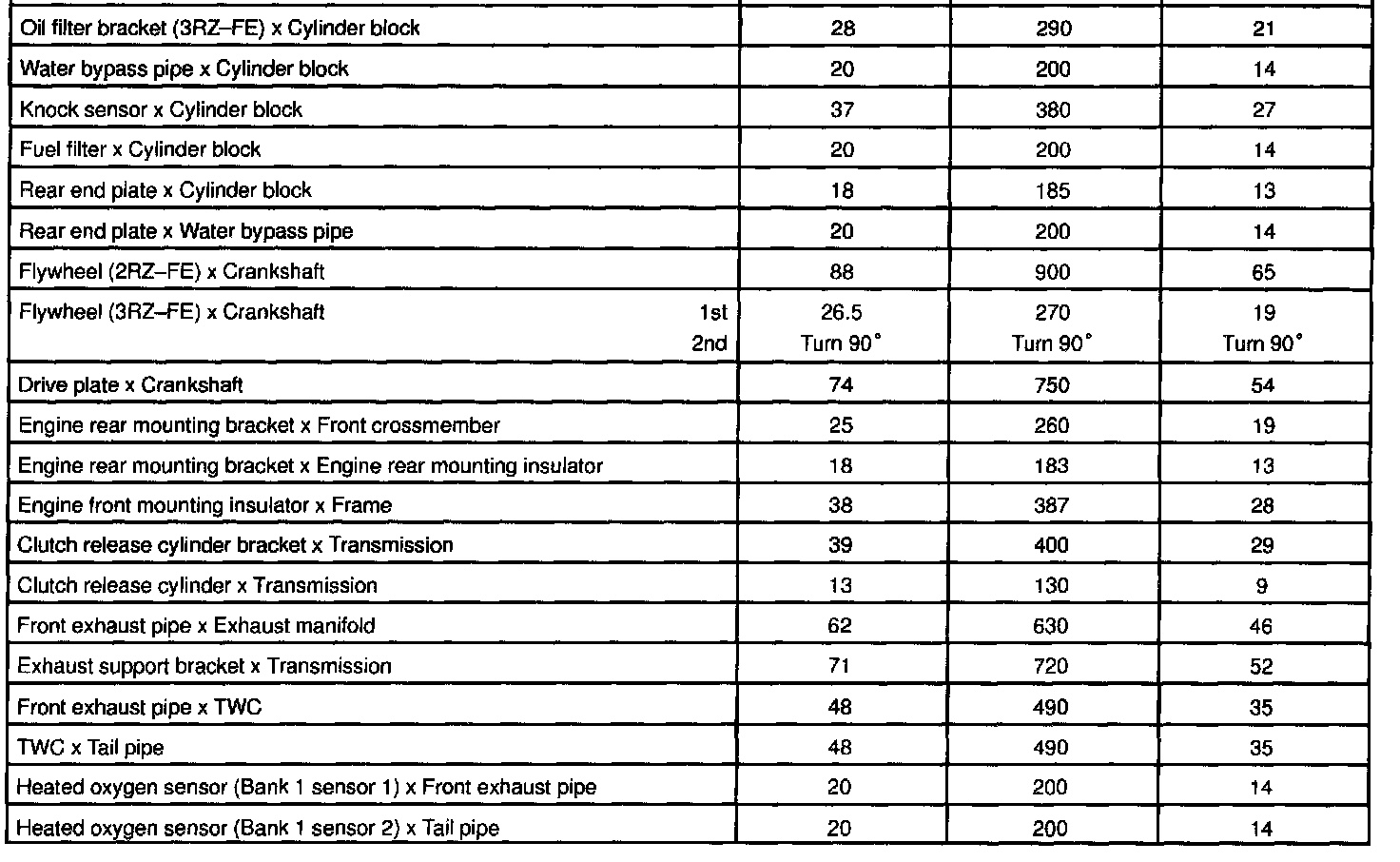

2RZ/3RZ-FE Engine Torque Cont.:




2RZ/3RZ-FE Engine Torque Cont.:

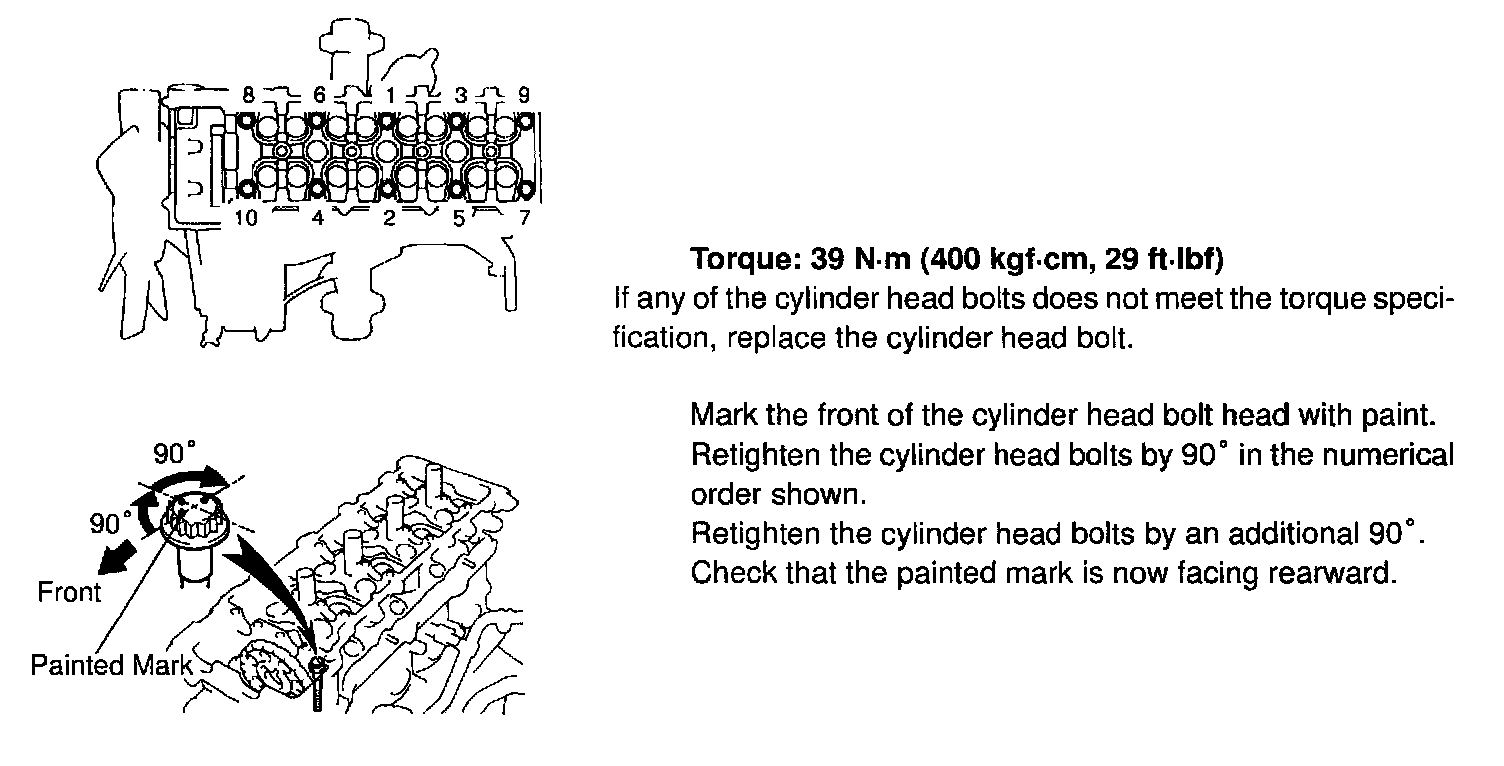

2RZ/3RZ-FE Cylinder Head Torque & Sequence:
