Standard Bolt & Nut

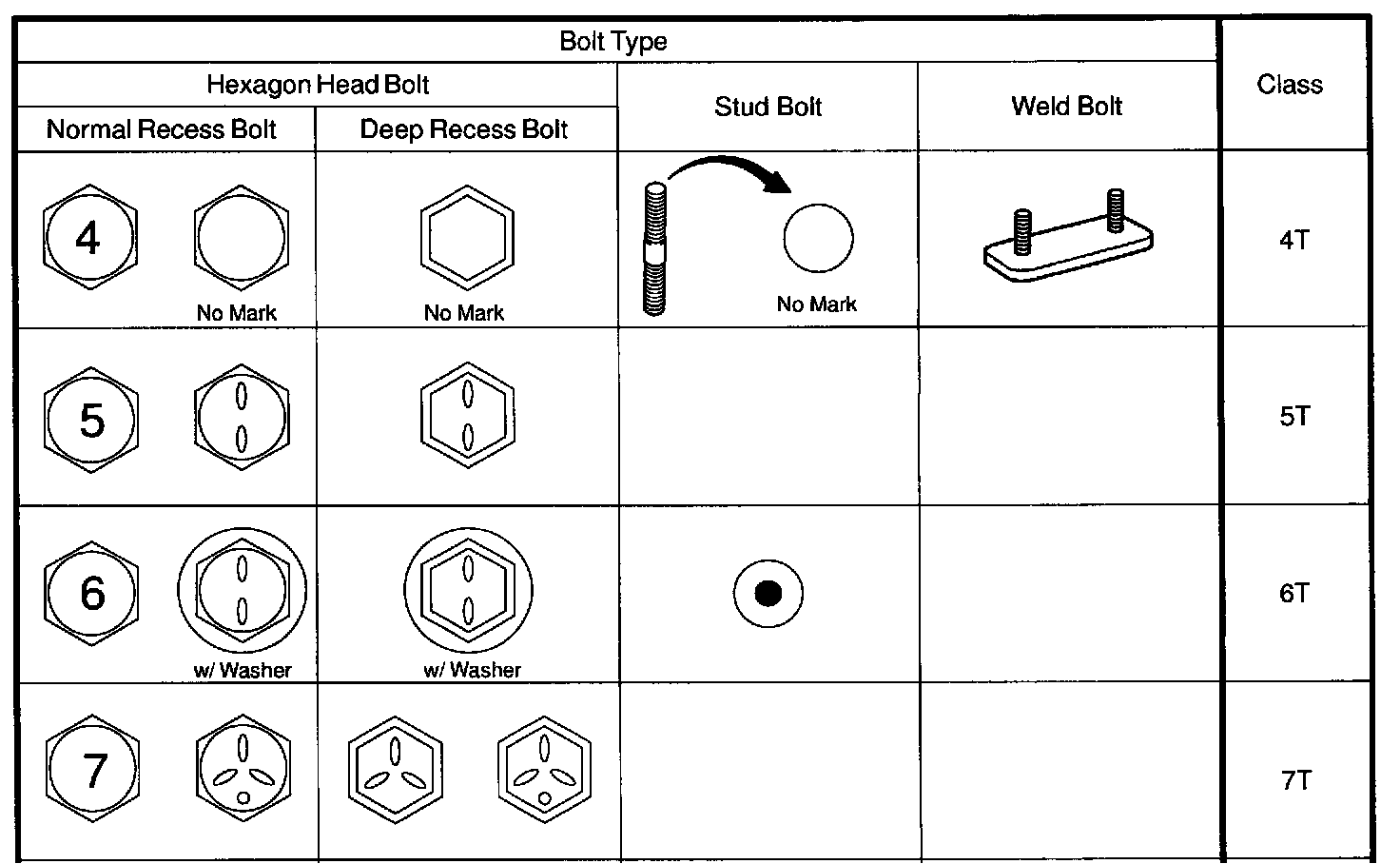

Standard Bolt Type Chart:

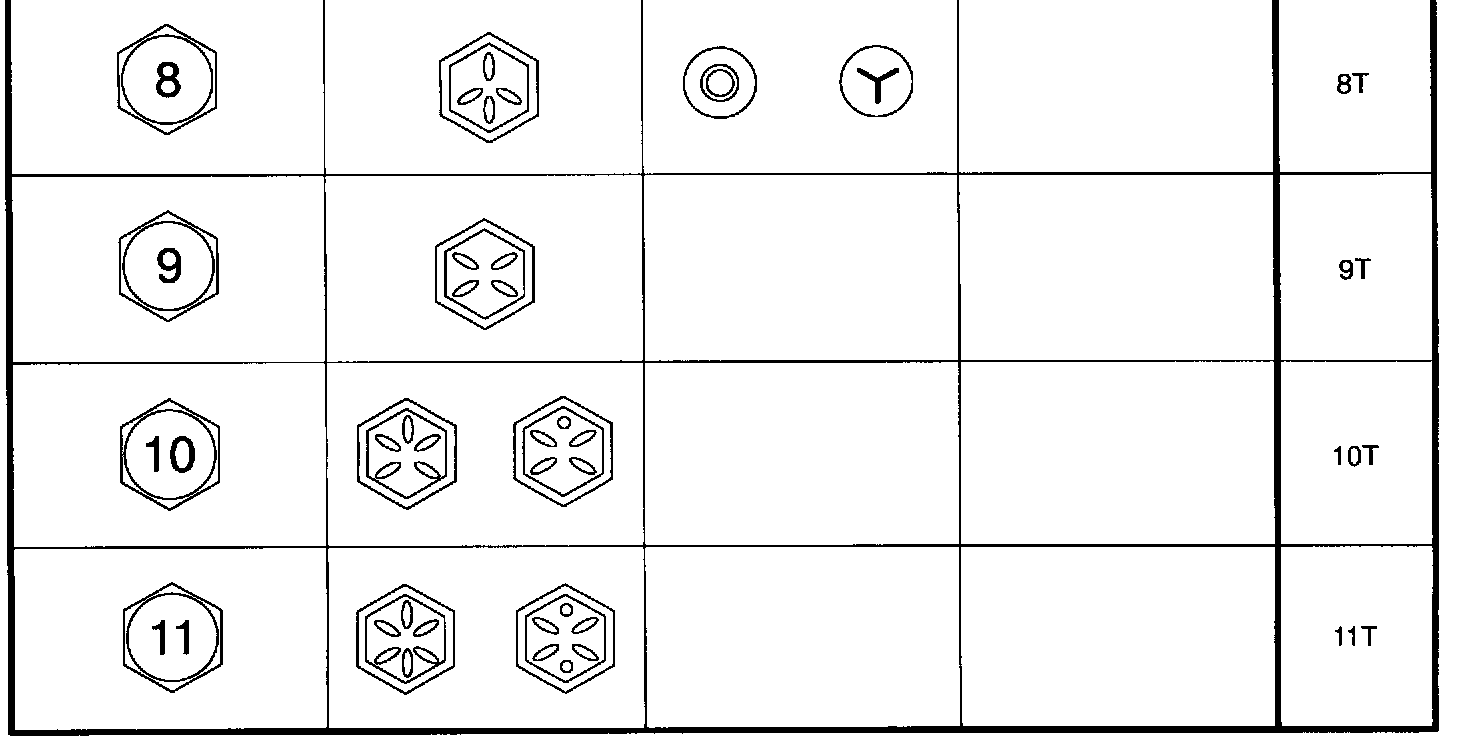

Standard Bolt Type Chart Cont.:





Standard Bolt Torque:




Standard Bolt Torque Cont.:





Standard Nut Type Chart:




Standard Nut Chart Cont.:
