Air Bag Deactivation Switch: Description and Operation

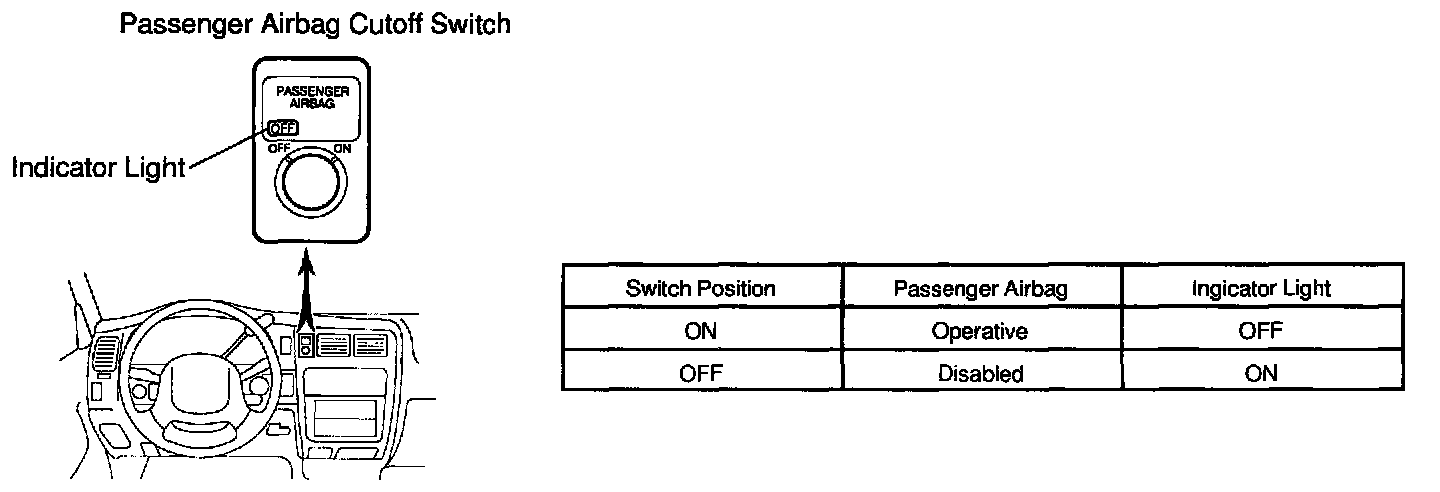

Passenger airbag cutoff switch is mounted on the center cluster finish panel. By turning the passenger airbag cutoff switch to OFF with the ignition key, the passenger airbag system can be disabled.Also, in order to notify the passenger that the passenger airbag is disabled, OFF indicator inside the switch will light up.
