Headlamp Switch: Testing and Inspection

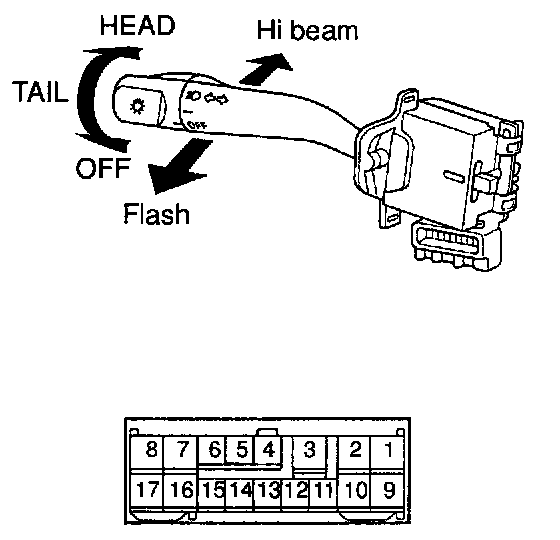

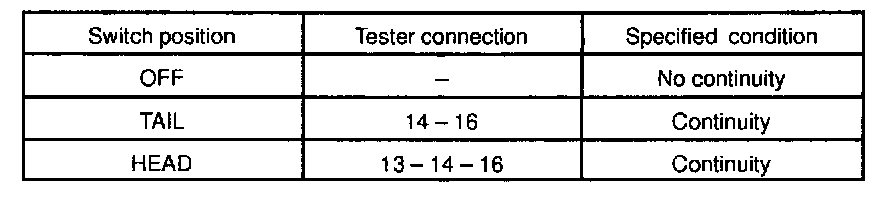

INSPECT LIGHT CONTROL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

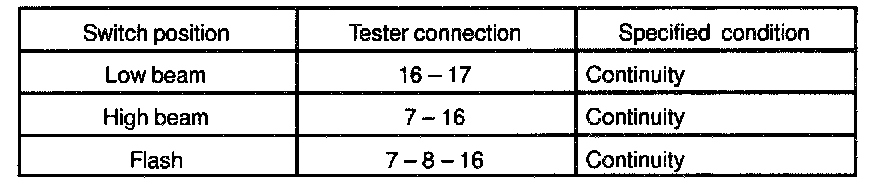

INSPECT HEADLIGHT DIMMER SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
