Home >> Toyota Truck >> 1999 >> Tacoma PreRunner Extra Cab 2WD L4-2.7L (3RZ-FE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Brake Light Switch >> Testing and Inspection

Brake Light Switch: Testing and Inspection

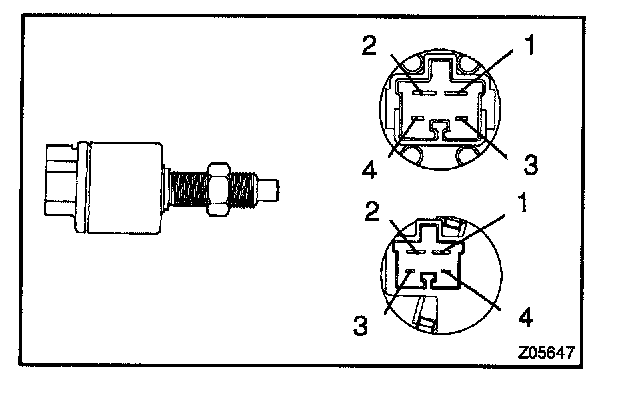

w/o Cruise Control:

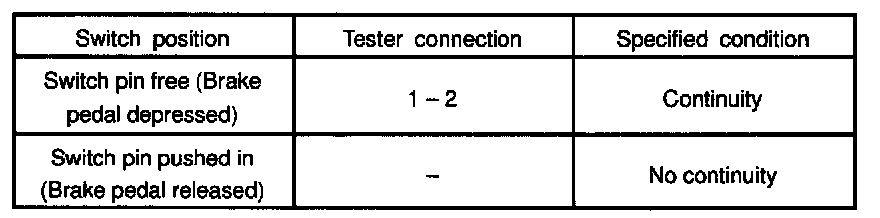

INSPECT STOP LIGHT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

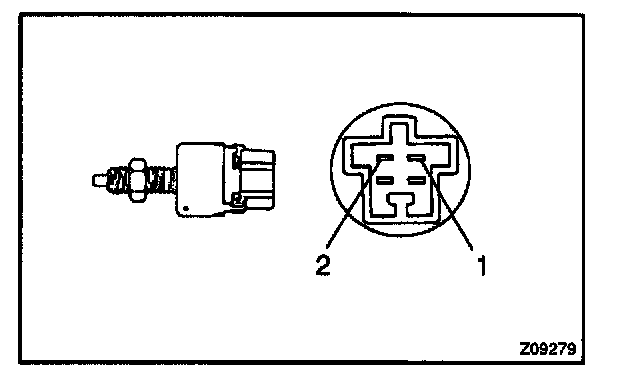

W/ Cruise Control:
INSPECT STOP LIGHT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
