Fuel Gauge Sender: Testing and Inspection

INSPECT FUEL SENDER GAUGE RESISTANCE

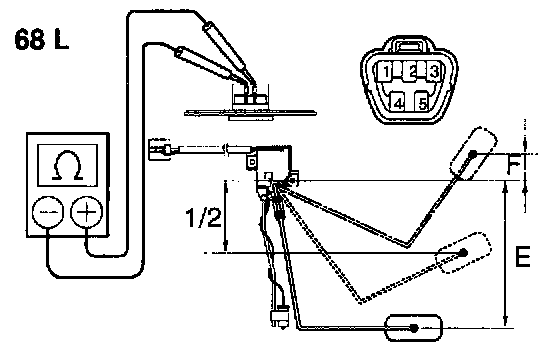

Measure the resistance between terminals 2 and 3.

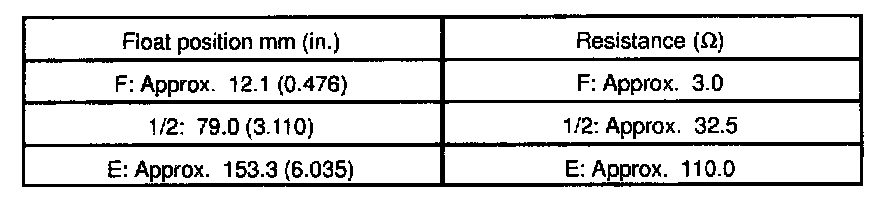

68 L:







57 L:

If resistance value is not as specified, replace the sender gauge.
