On Vehicle Inspections

1. REMOVE GLOVE COMPARTMENT DOOR




2. INSPECT THERMISTOR RESISTANCE
a. Disconnect the connector

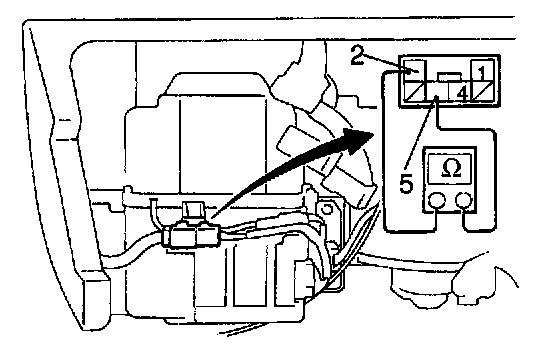

b. Measure resistance between terminals 2 and 5.
Standard resistance: 1,500 Ohms at 25 °C (77 °F)
If resistance is not as specified, proceed next inspection.
