Denso Made System
CIRCUIT DESCRIPTIONWhen the cruise control main switch is turned off, the cruise control does not operate.

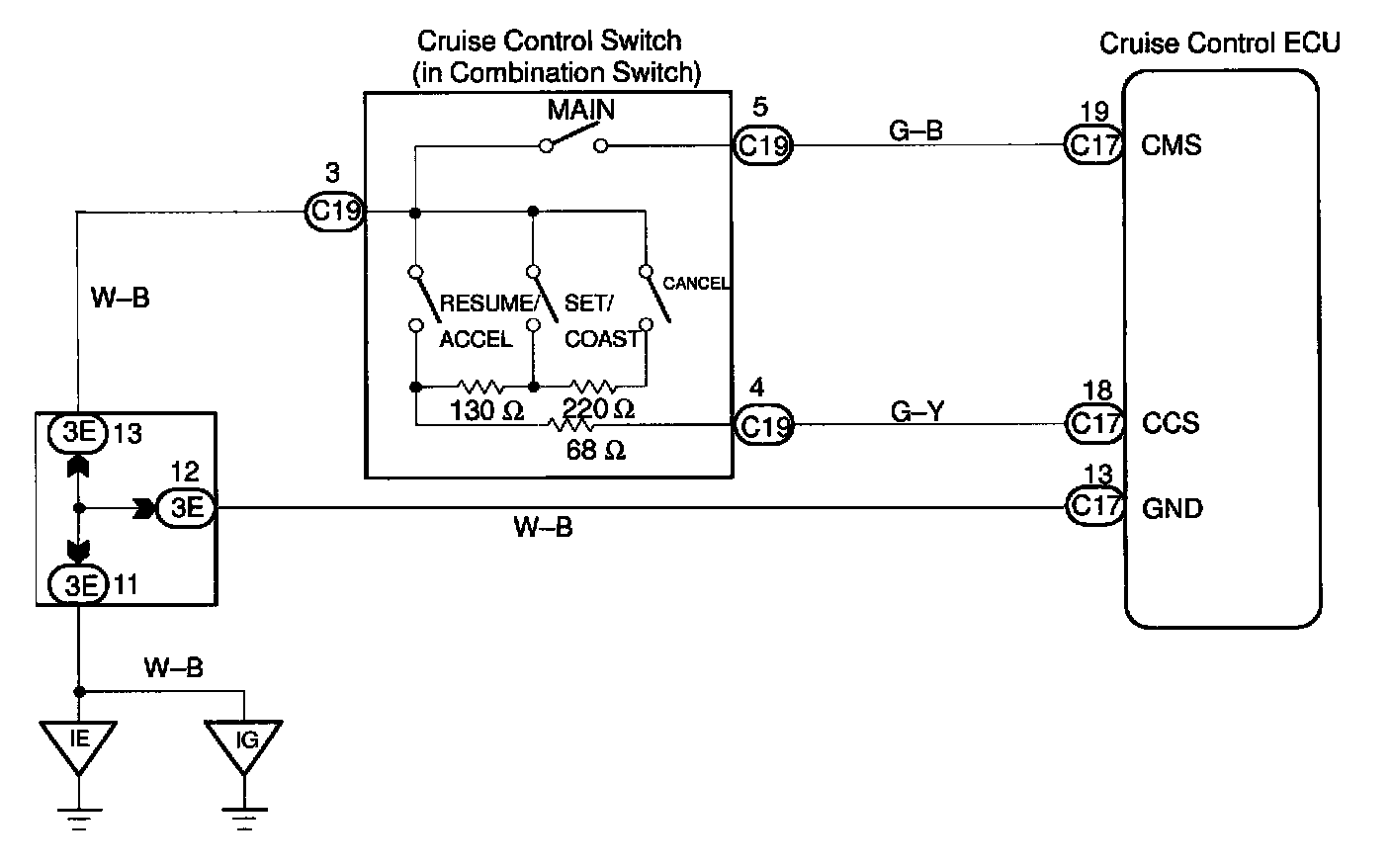

WIRING DIAGRAM

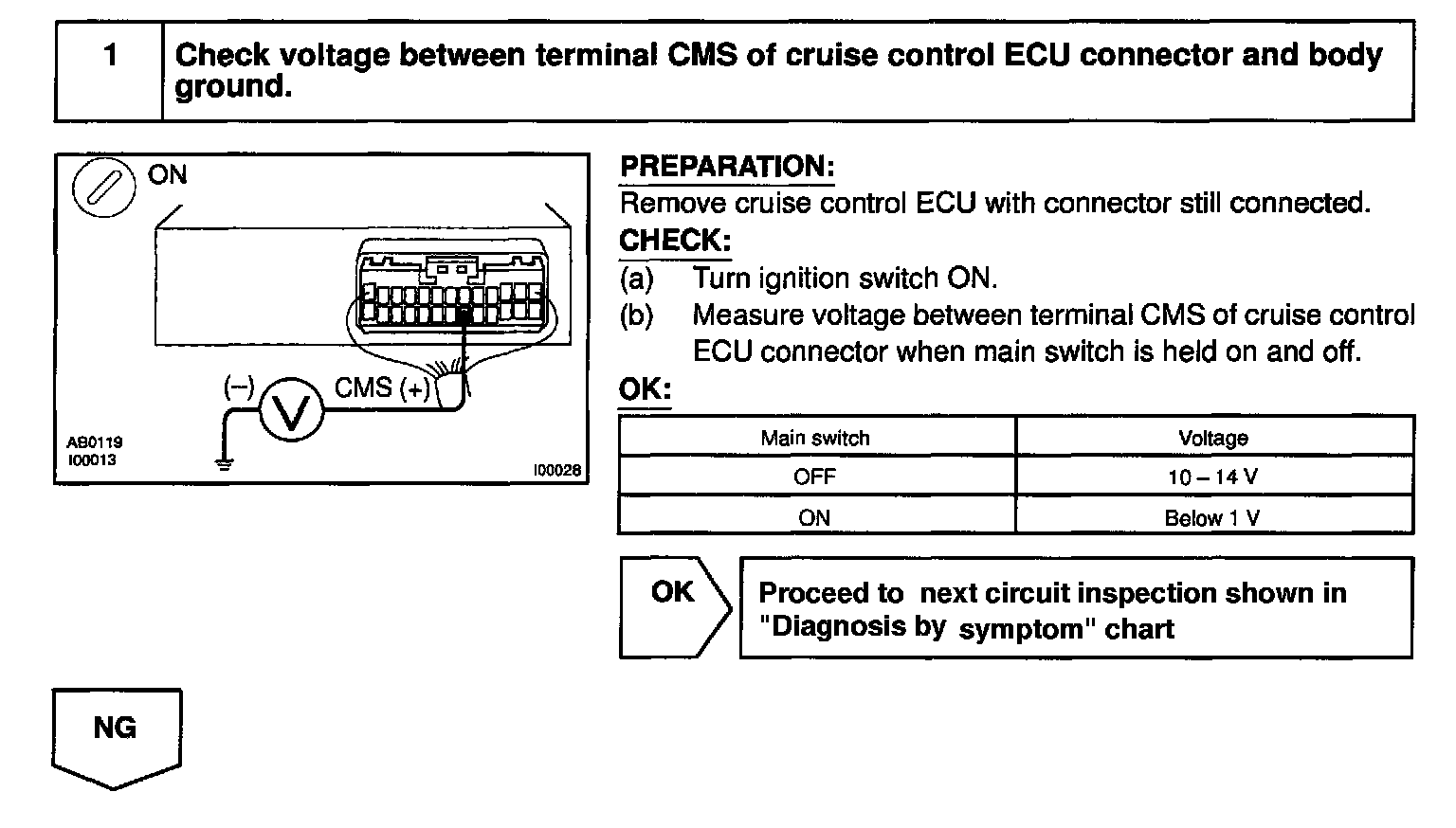

Step 1:

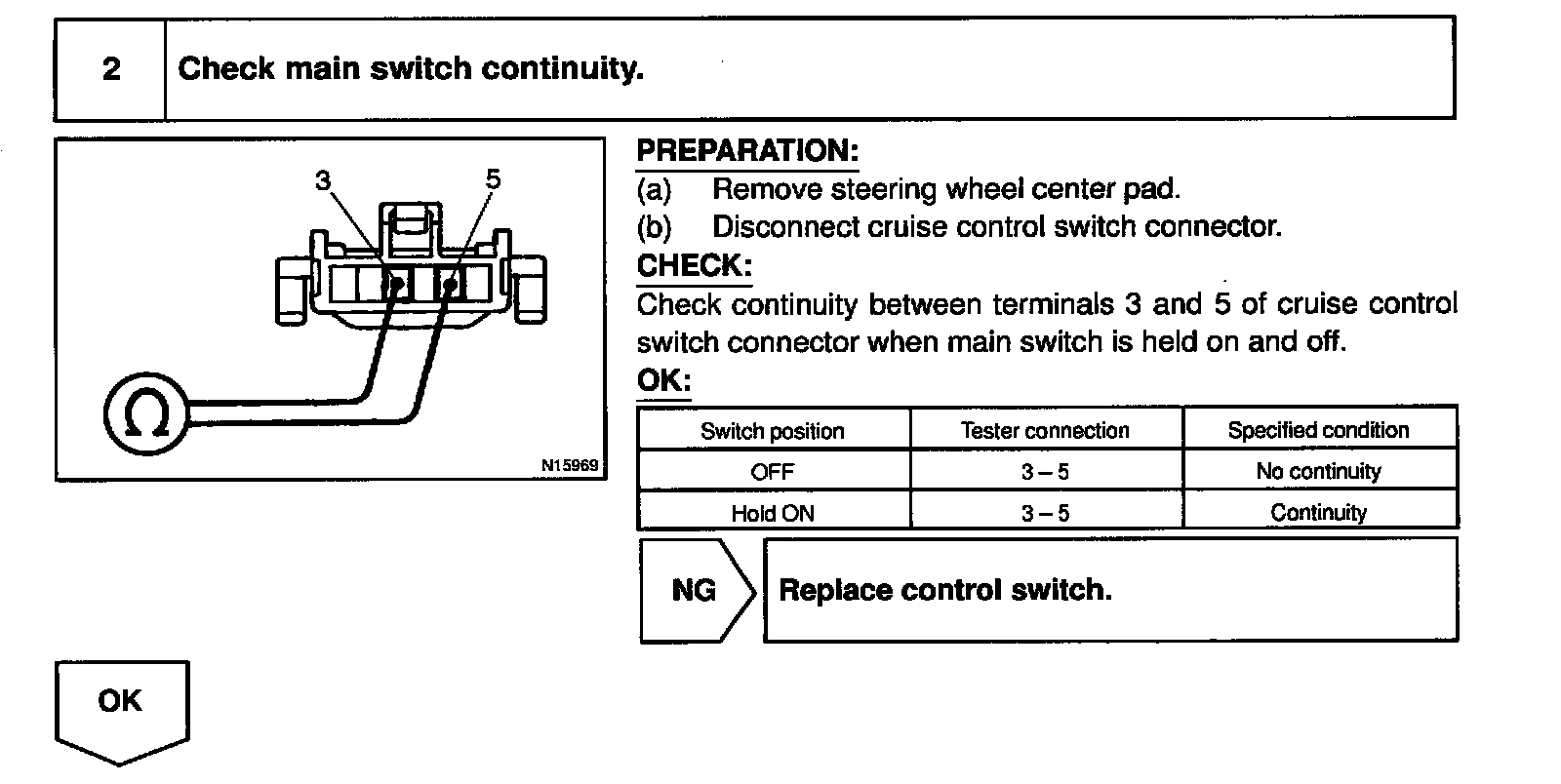

Step 2:

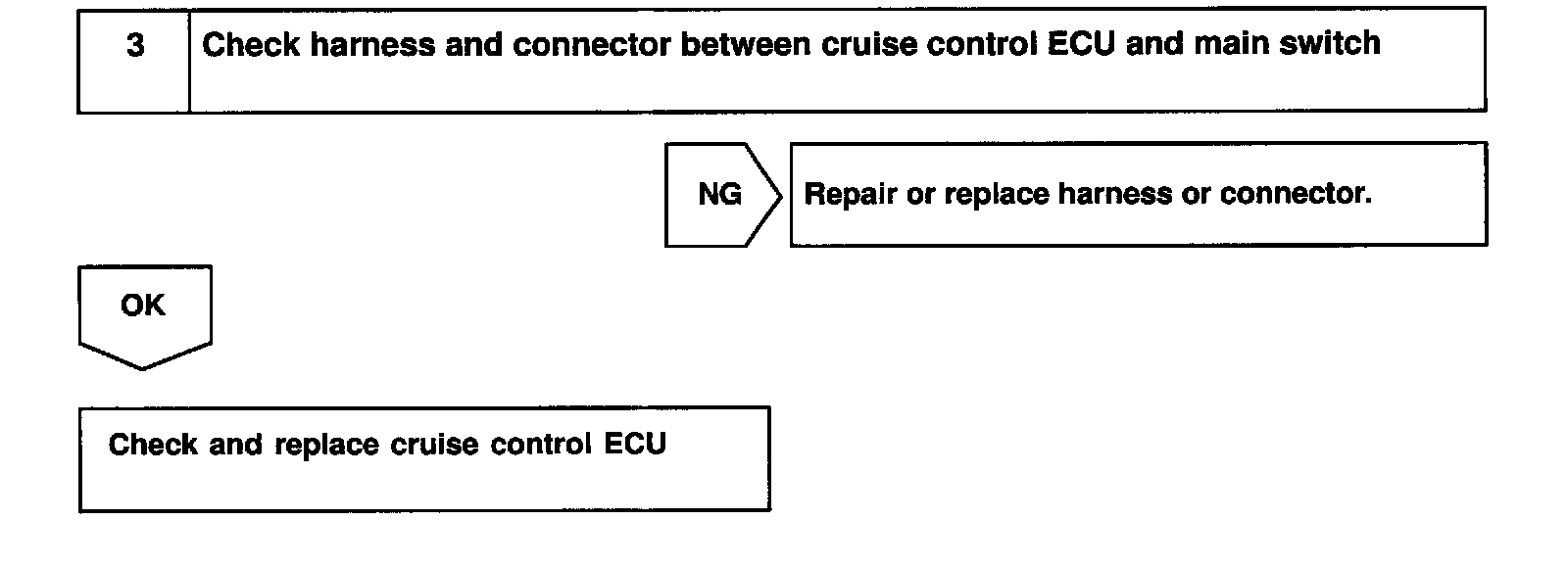

Step 3:
INSPECTION PROCEDURE
When the cruise control main switch is turned off, the cruise control does not operate.
WIRING DIAGRAM
INSPECTION PROCEDURE
