Front

HINT: Pre runner is the described below.
RZN191L-TRPDKAB, RZN196L-CRPDKAB, VZN195L-CRPDKAB

REMOVAL

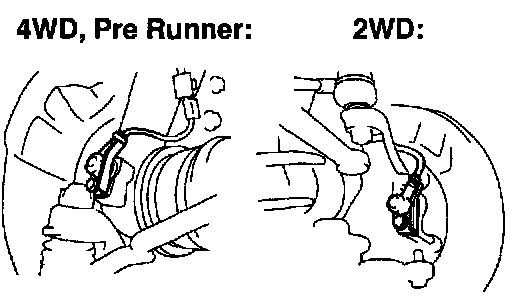

1. REMOVE SPEED SENSOR

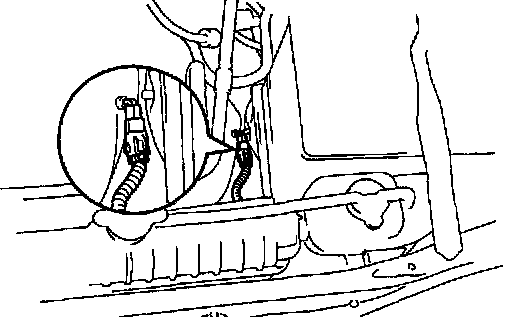

a. Disconnect the speed sensor connector.
b. Remove the 2 (4WD, pre runner) or 4 (2WD) clamp bolts holding the sensor harness from the steering knuckle, upper arm and side rail.
Torque: Upper arm: 8.0 Nm (82 kgf-cm, 71 lbs.)
Side rail: 13 Nm (130 kgf-cm, 9 ft. lbs.)





c. Remove the speed sensor installation bolt from the steering knuckle.
Torque: 8.0 Nm (82 kgf-cm, 71 lbs.)

NOTICE: At the time of installation, please refer to the following items.
- There are no foreign objects on the sensor or the part of the knuckle to which the sensor is to be installed.
- The sensor is installed flat against the knuckle when you tighten the bolt.
- When installing the resin clips, use new ones.

INSTALLATION
Installation is in the reverse order of removal.

NOTICE: After installation, check the speed sensor signal.
