Transmission Position Sensor/Switch: Service and Repair

ON-VEHICLE REPAIR

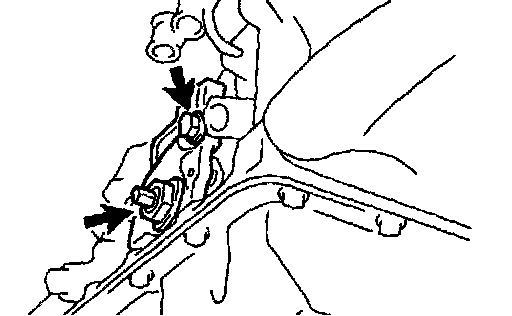

1. DISCONNECT 2 OIL COOLER PIPES.

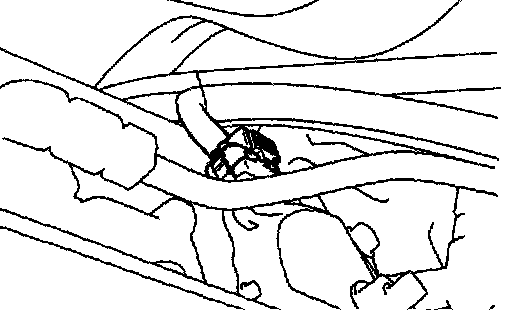

2. DISCONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR





3. REMOVE PARK/NEUTRAL POSITION SWITCH
a. Pry off the lock washer and remove the nut.
b. Remove the bolt and pull out the park/neutral position switch.
4. INSTALL AND ADJUST PARK/NEUTRAL POSITION SWITCH.
Torque:
Nut: 6.9 Nm (70 kgf cm, 61 inch lbs.)
Bolt: 13 Nm (130 kgf cm, 9 ft. lbs.)
5. CONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR CONNECT 2 OIL COOLER PIPES
