Main Relay (Computer/Fuel System): Locations

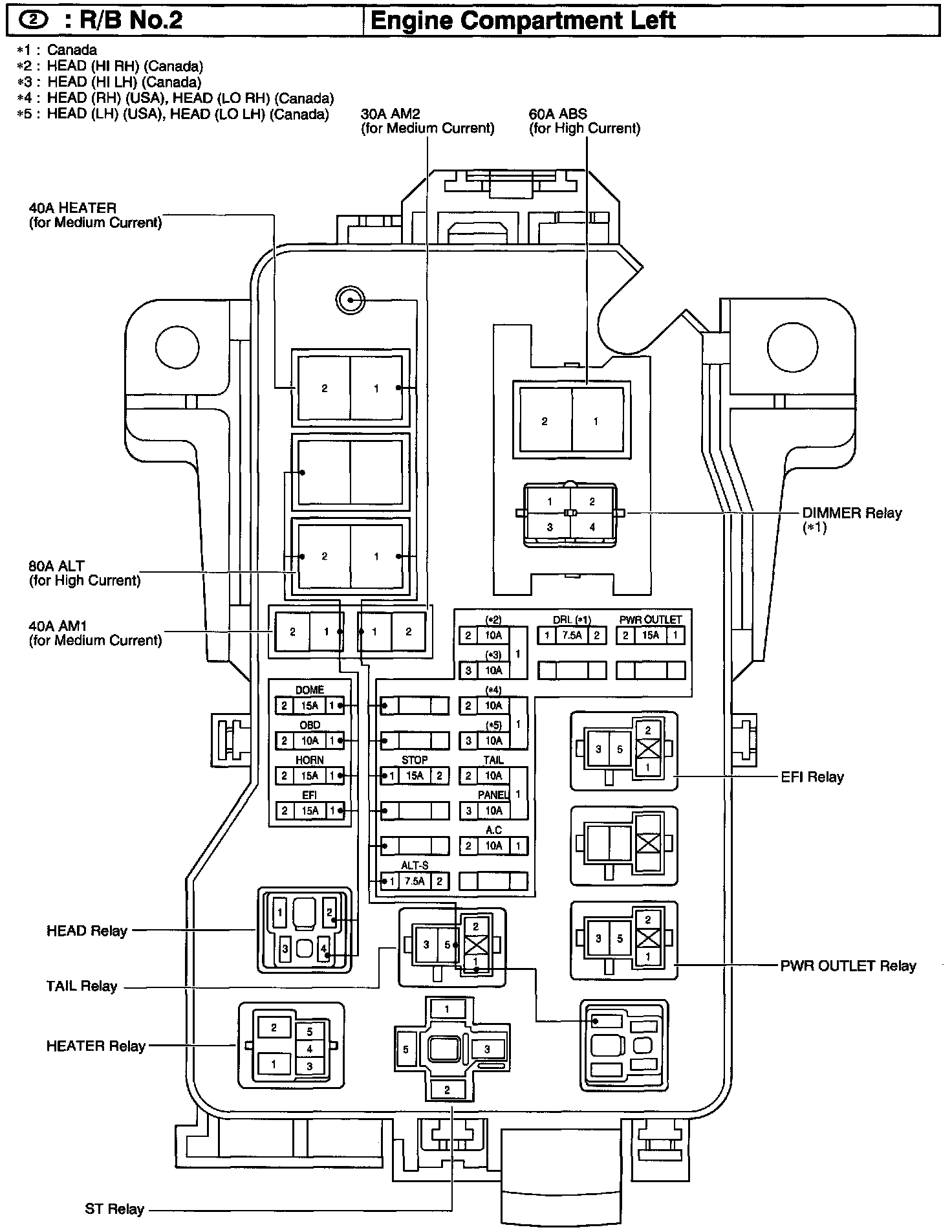

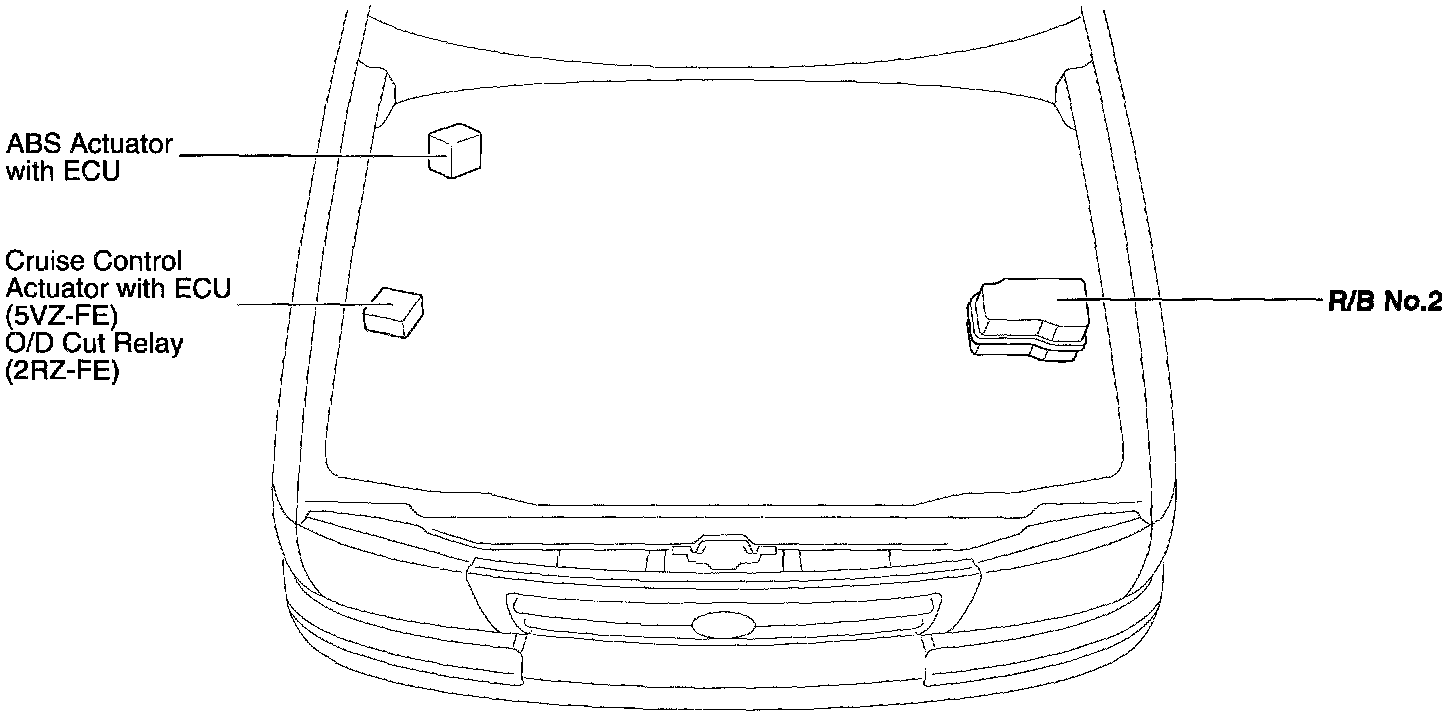

Underhood Fuses And Relays:

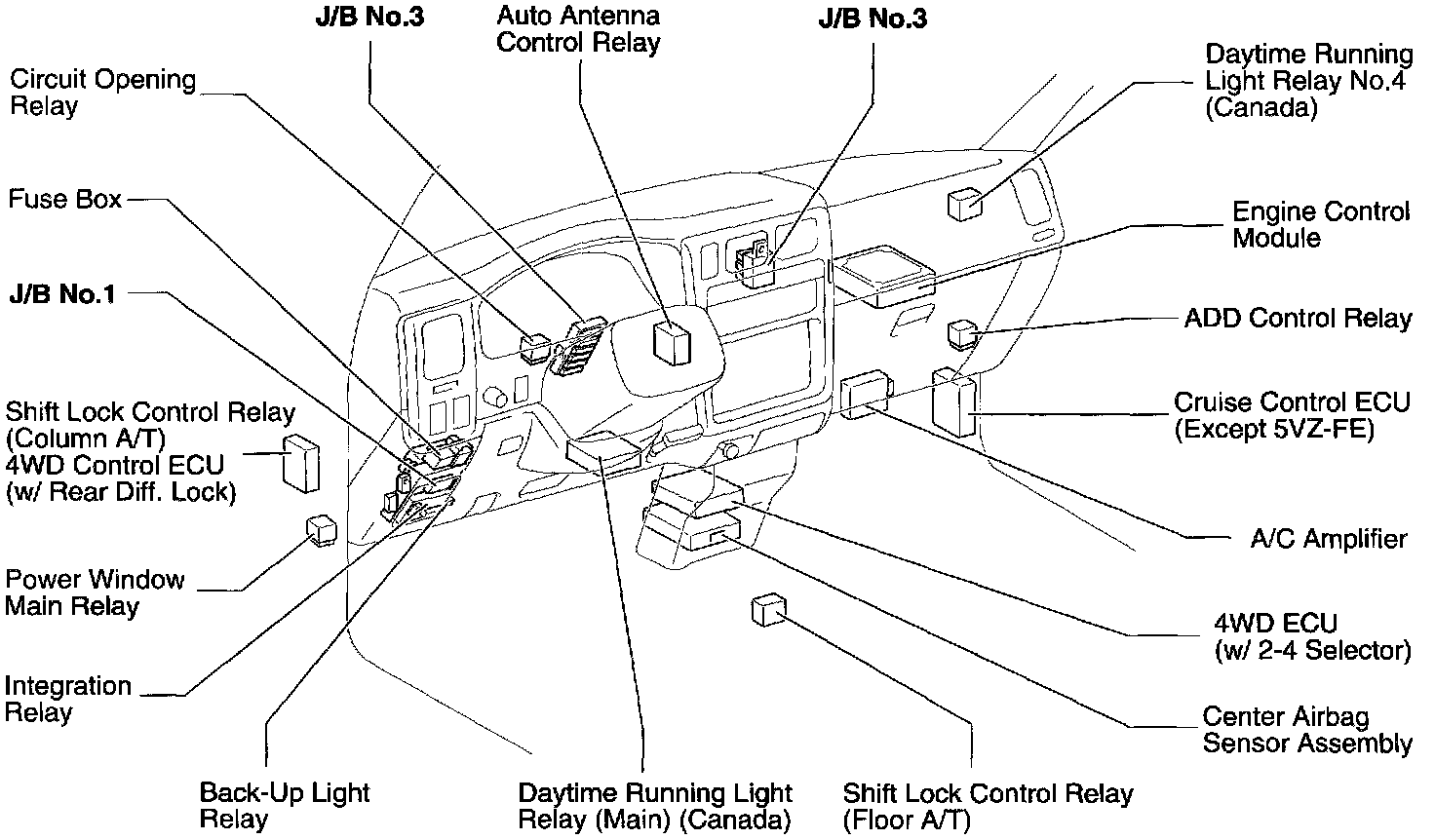

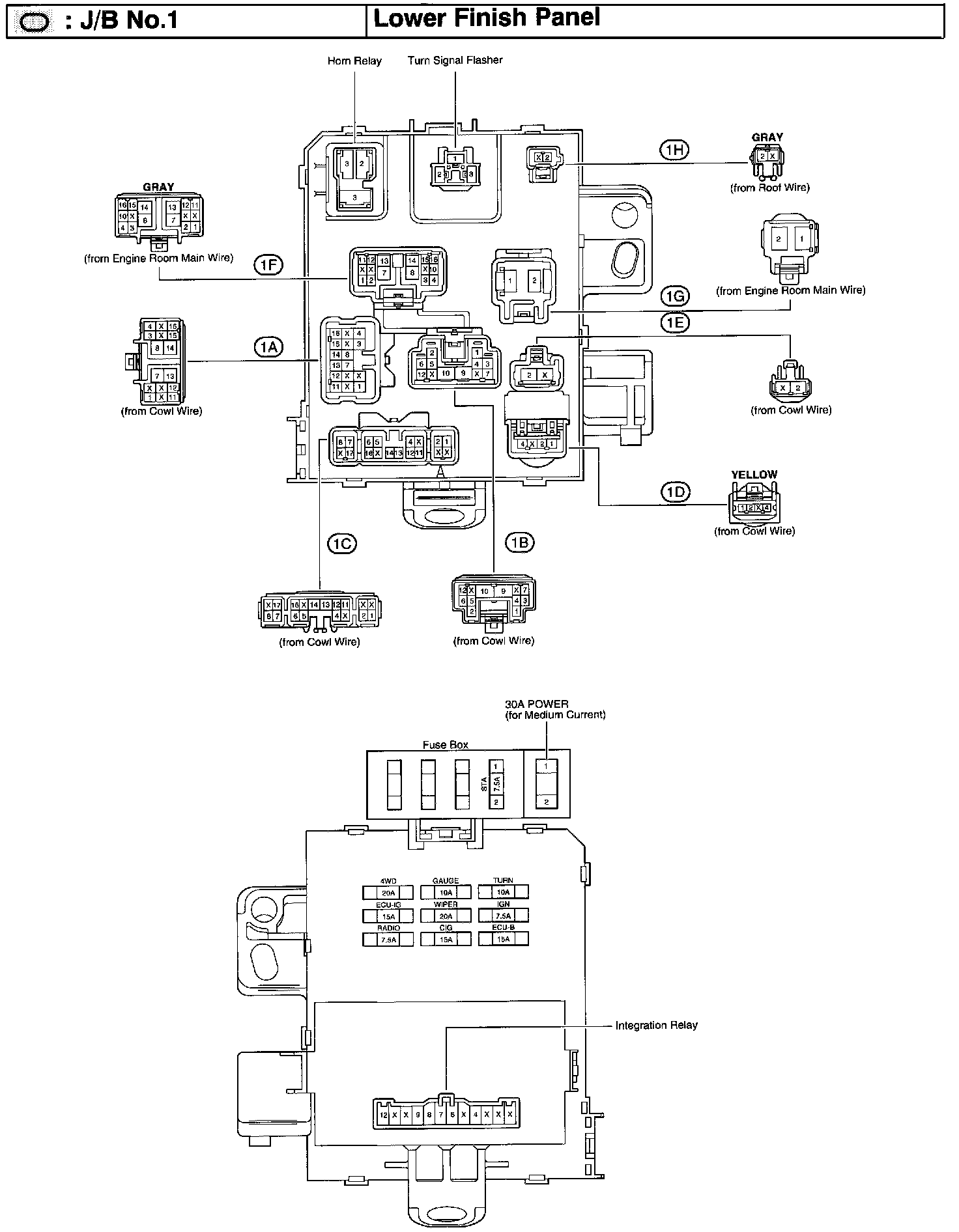

Underdash Fuses And Relays:




Details








Locations
