Idle Speed/Throttle Actuator - Electronic: Service and Repair

COMPONENTS

REMOVAL

1. REMOVE THROTTLE BODY
2. REMOVE IAC VALVE

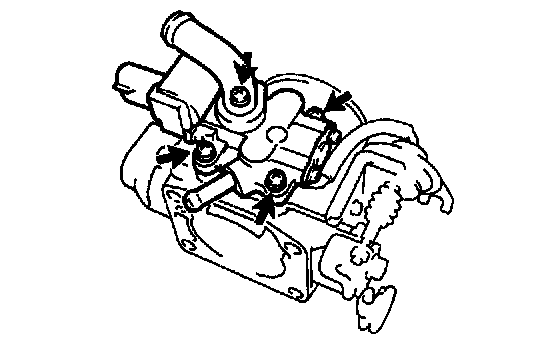

Remove the 4 screws, IAC valve and gasket.

INSTALLATION

1. INSTALL IAC VALVE




a. Place a new gasket on the throttle body.
b. Install the AC valve with the 4 screws.

2. INSTALL THROTTLE BODY
