Main Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION
When the cruise control main switch is turned off, the cruise control does not operate.

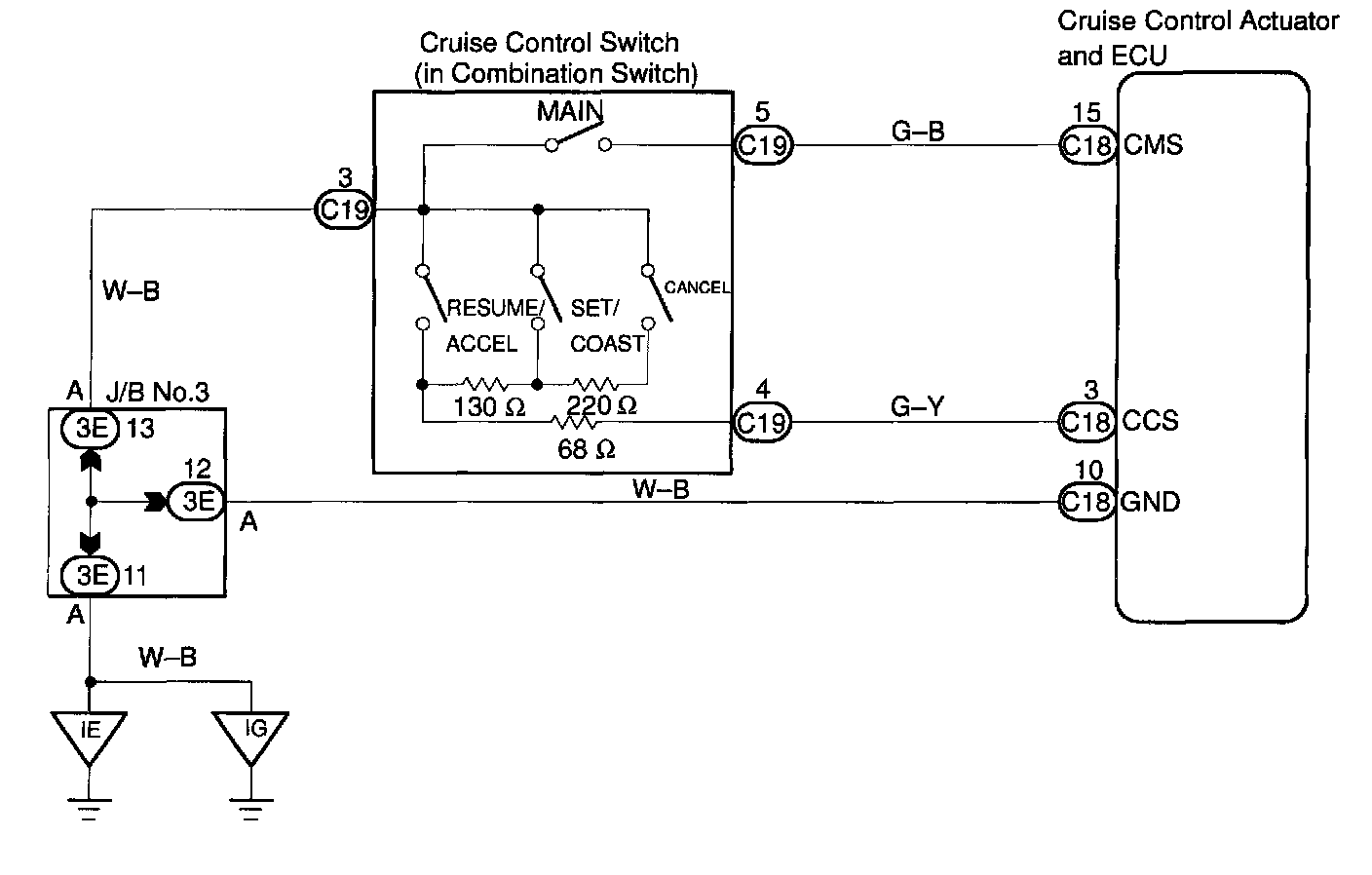

WIRING DIAGRAM

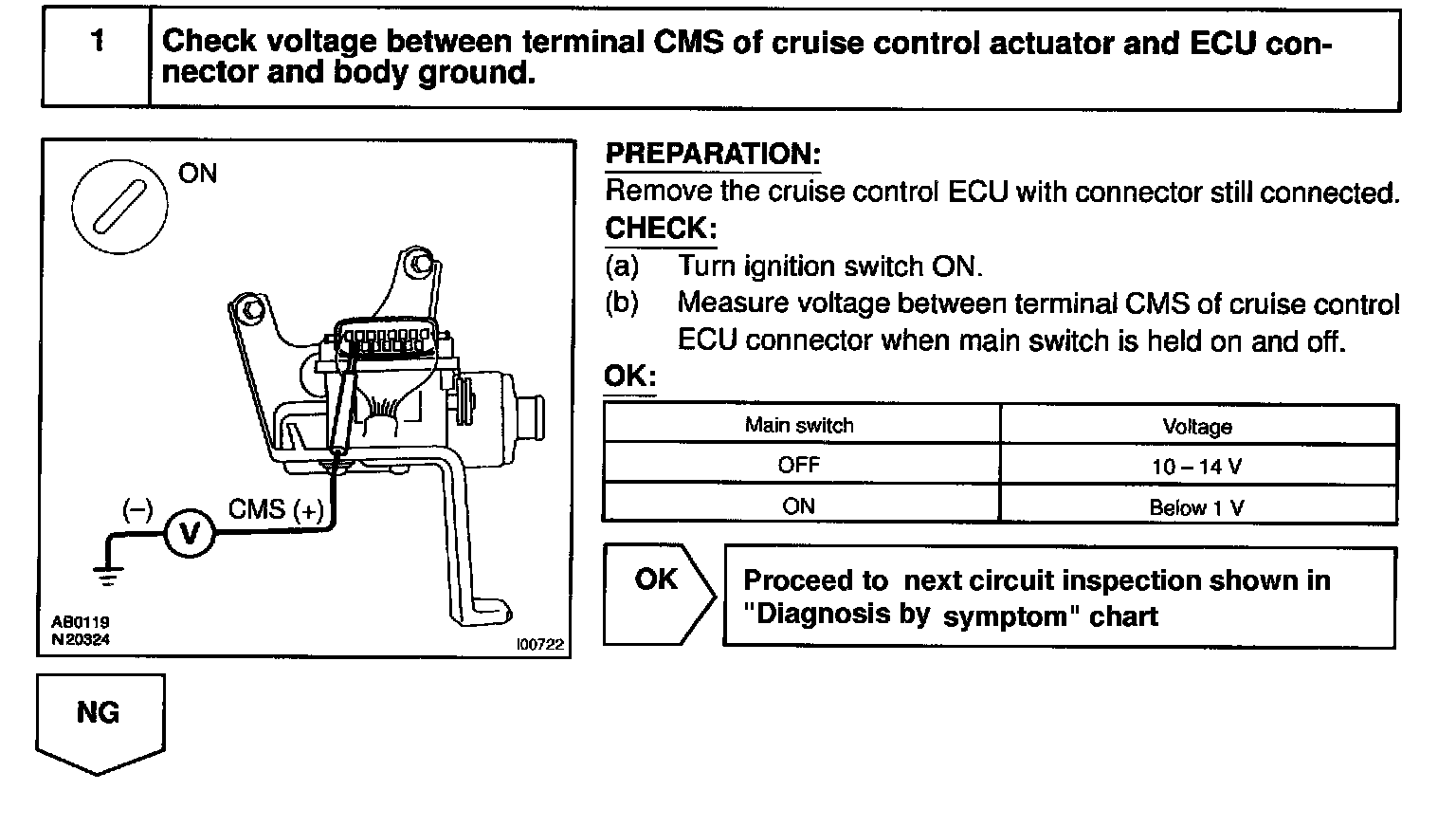

Step 1:

Step 2:

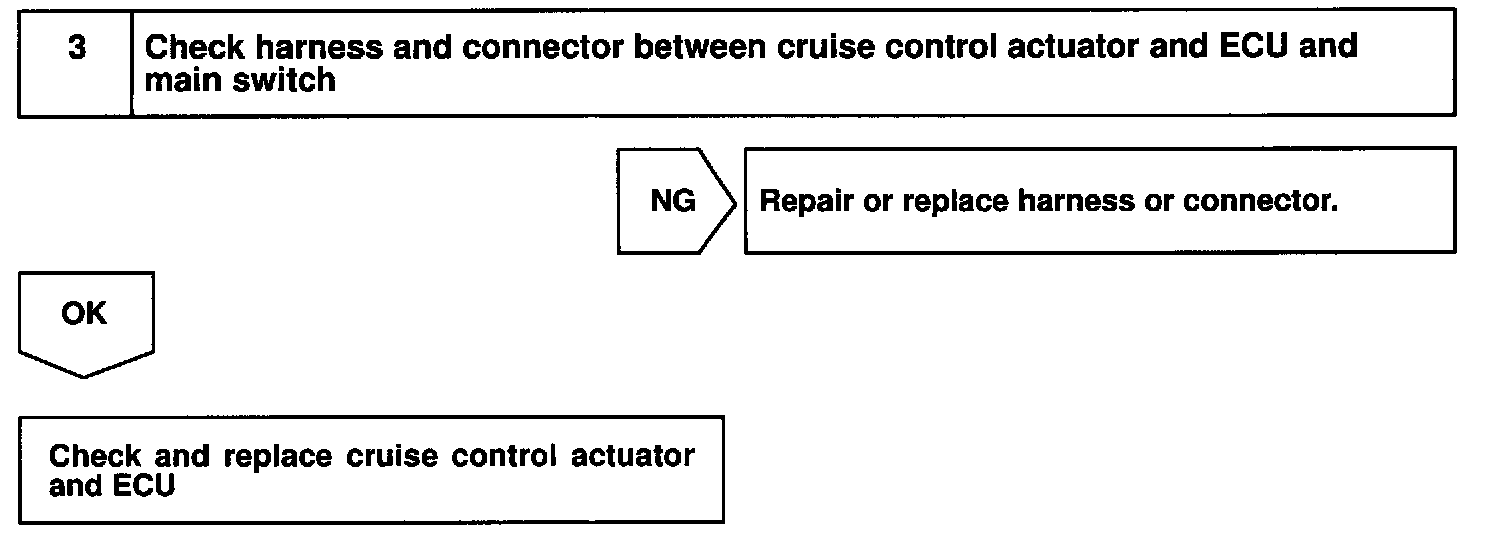

Step 3:

INSPECTION PROCEDURE
