Cruise Main Indicator Light Circuit

CIRCUIT DESCRIPTION
When the cruise control main switch is turned ON, CRUISE MAIN indicator light lights up.

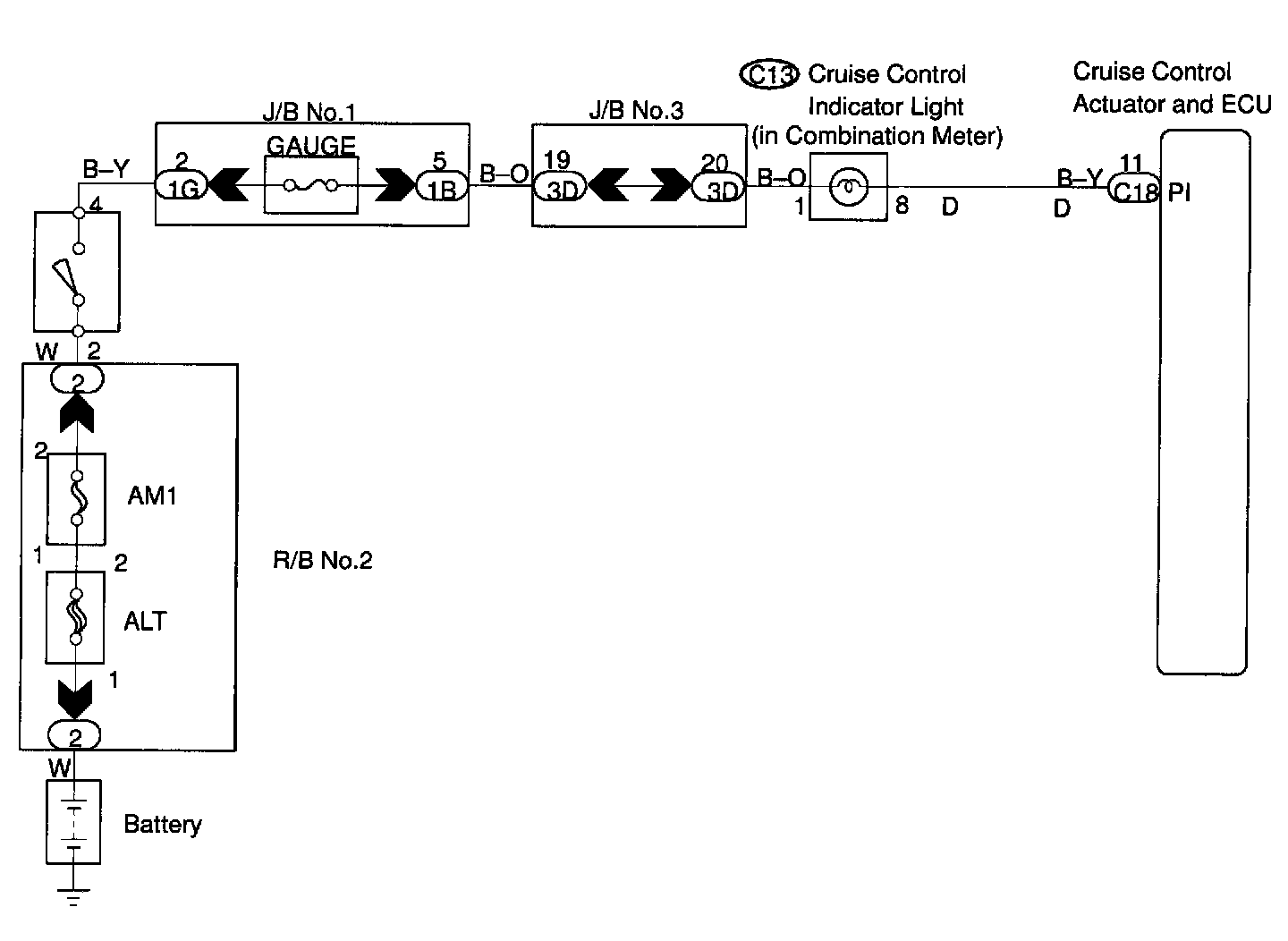

WIRING DIAGRAM

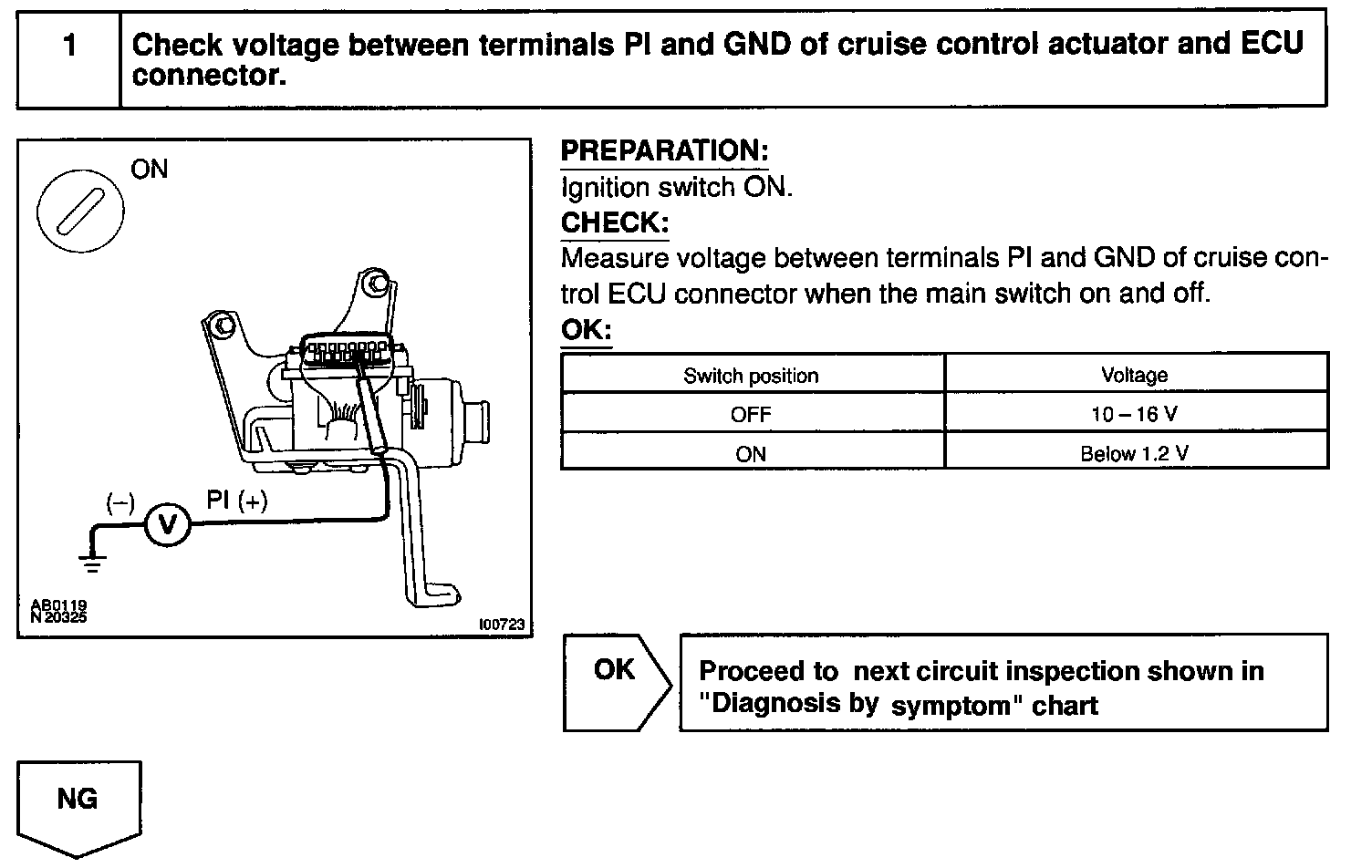

Step 1:

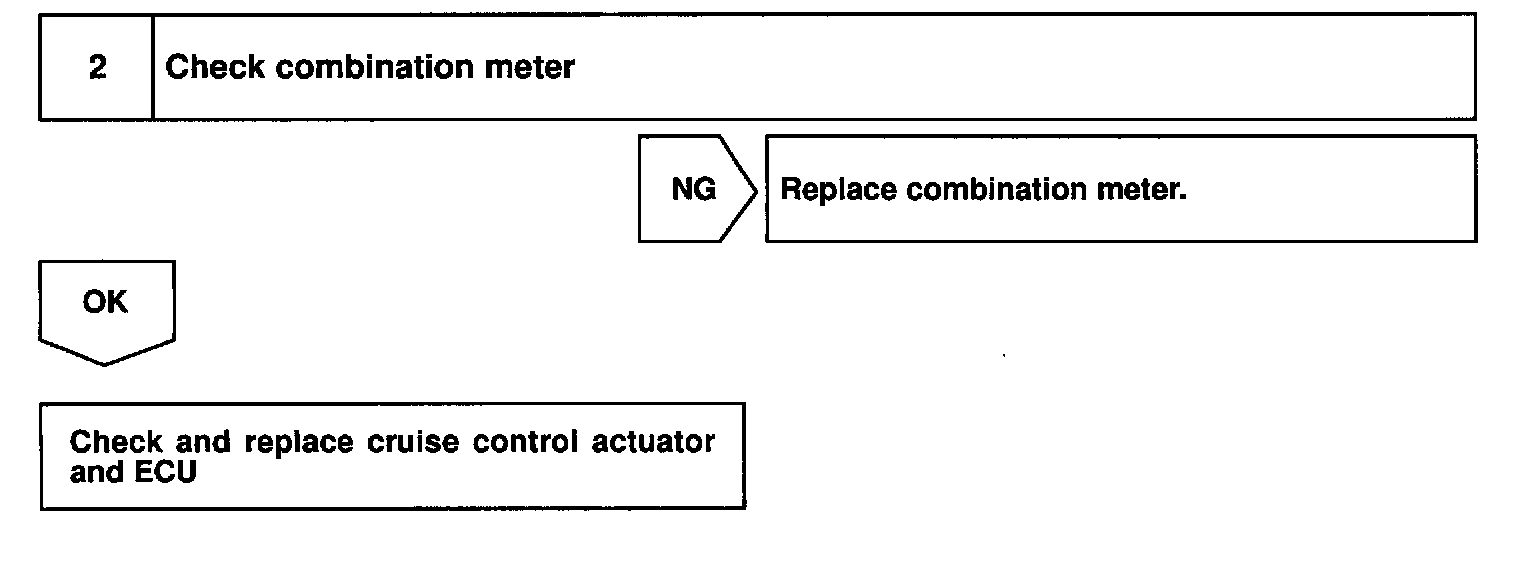

Step 2:

INSPECTION PROCEDURES
