Tacoma PreRunner Extra Cab 2WD L4-2.7L (3RZ-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Denso Made System
>>
Non-Trouble Code Procedures
>>
Diagnosis Circuit
Diagnosis Circuit
CIRCUIT DESCRIPTION
This circuit sends a signal to the ECU that outputs DTC.

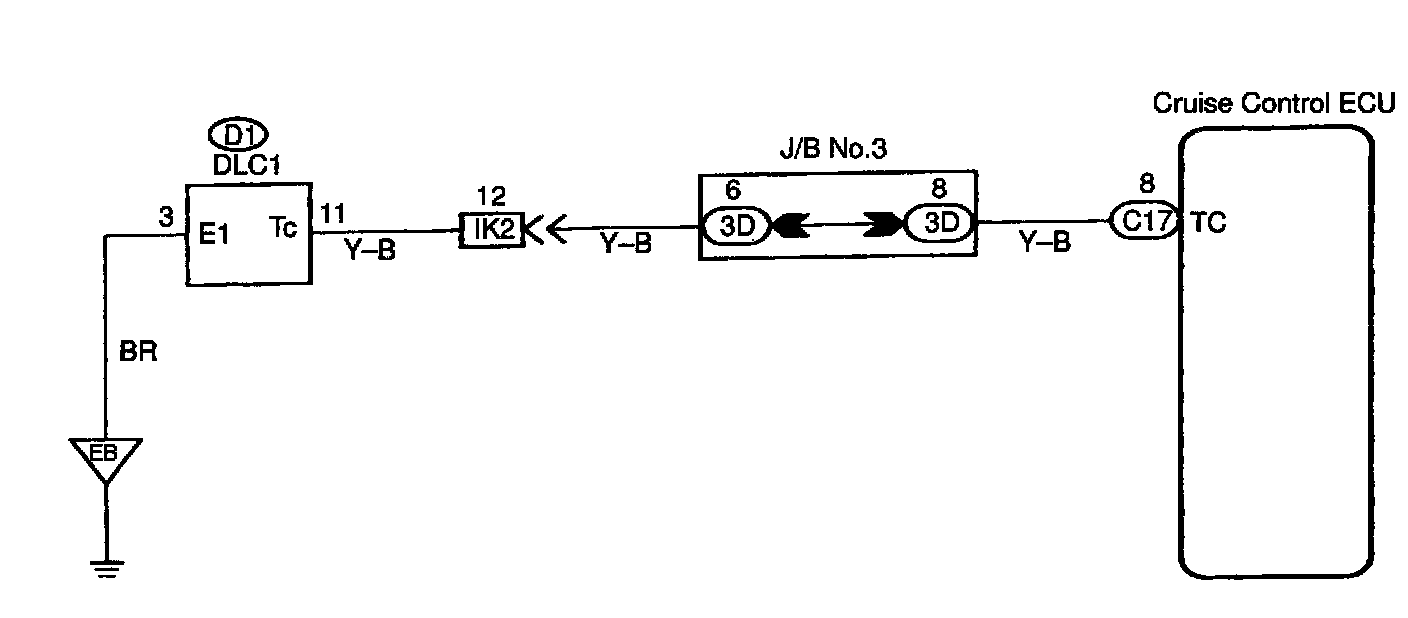

WIRING DIAGRAM
Step 1:
Step 2:

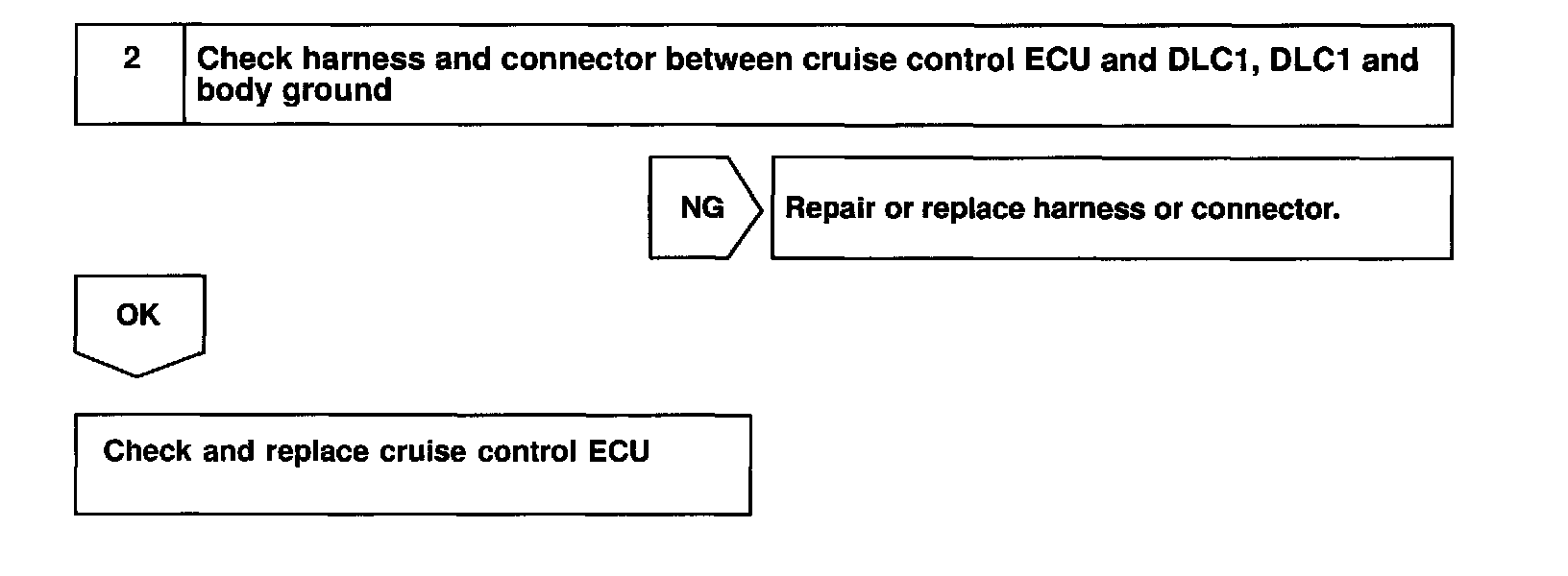

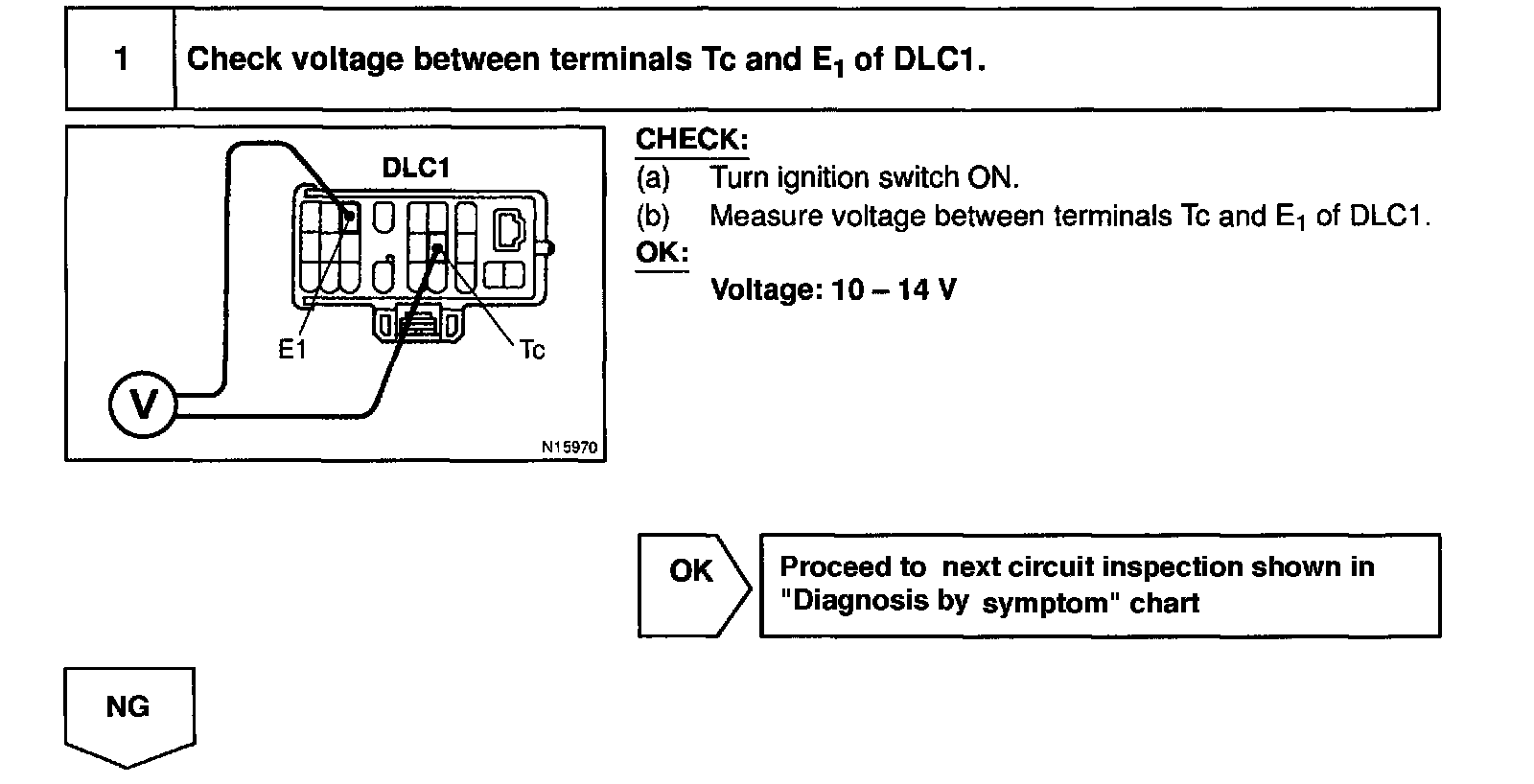

INSPECTION PROCEDURE
