P1310

DTC P1310 Ignition Circuit Malfunction (Bank2)

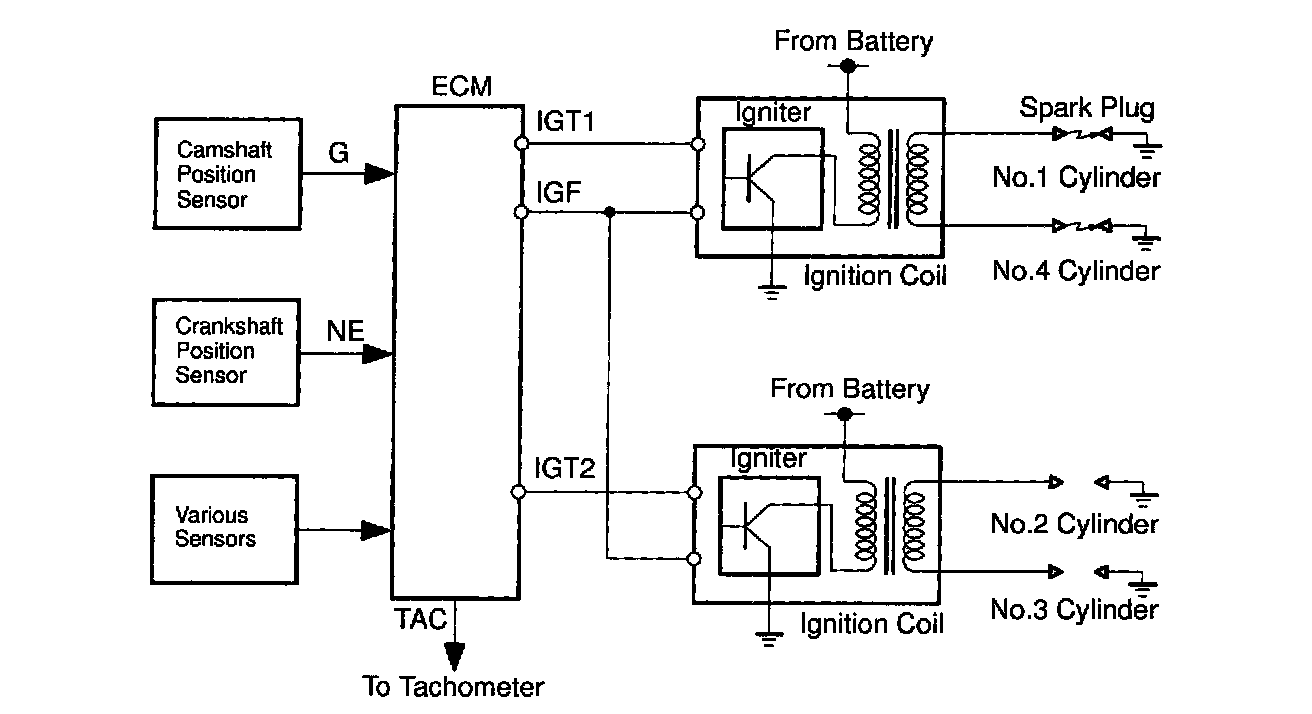

CIRCUIT DESCRIPTION
A DIS (Direct ignition System) has been adopted, The DIS improves the ignition timing accuracy, reduces high-voltage loss, and enhances the overall reliability of the ignition system by eliminating the distributor. The DIS is a 2-cylinder simultaneous ignition system which ignites 2 cylinders simultaneously with 1 ignition coil. In the 2-cylinder simultaneous ignition system, each of the 2 spark plugs is connected to the end of the secondary winding, High voltage generated in the secondary winding is applied directly to the 2 spark plugs. The sparks of the 2 spark plugs pass simultaneously from the center electrode to the ground electrode. The ECM determines ignition timing and outputs the ignition signals (IGT) for each cylinder. Based on IGT signals, the power transistors in the igniter cuts off the current to the primary coil in the ignition coil is supplied simultaneously to the two spark plugs via the high-tension cords that are connected to the both ends of the secondary coil. At the same time, the igniter also sends an ignition confirmation signal (IGF) as a fail-safe measure to the ECM.

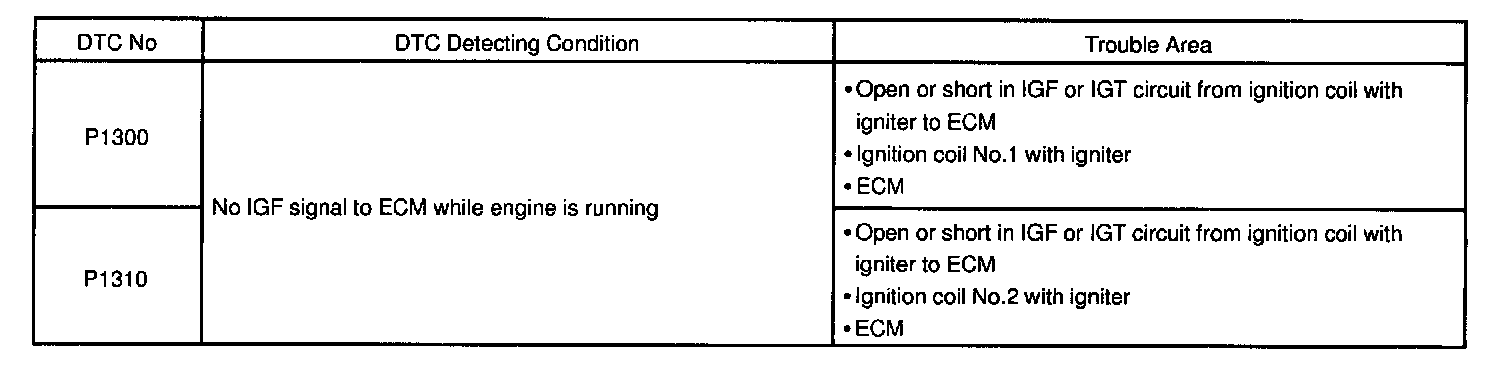

DETECTING CONDITIONS

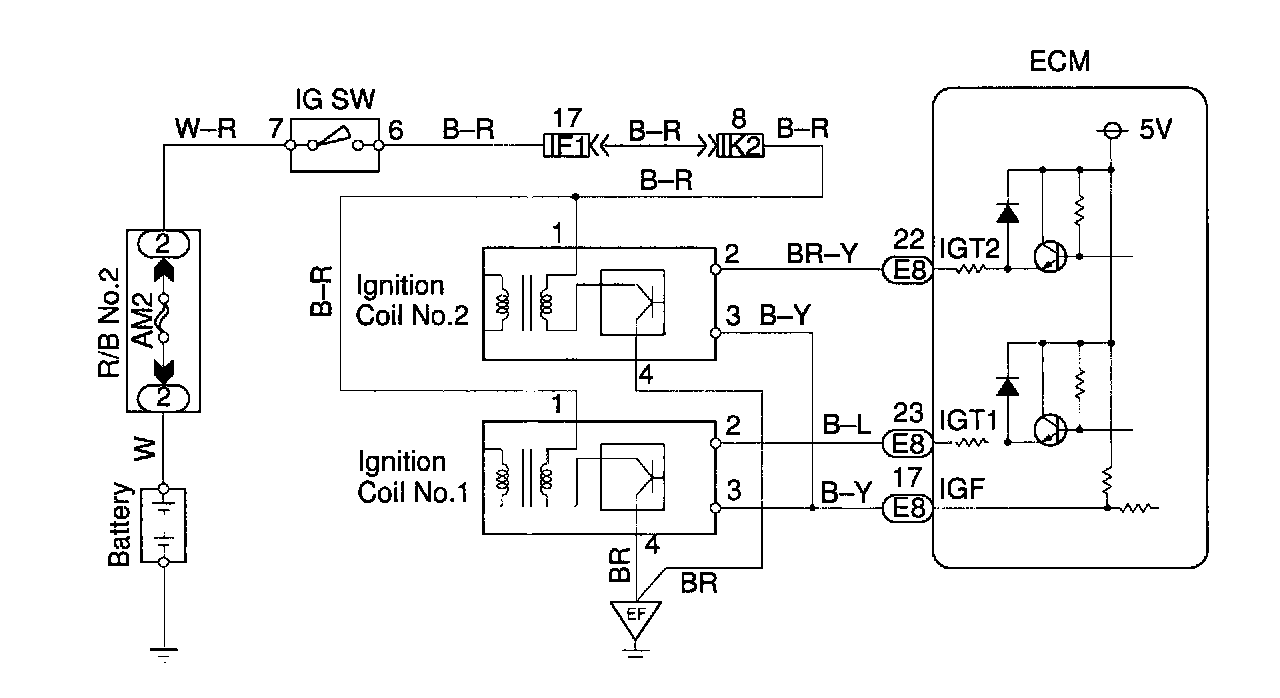

WIRING DIAGRAM

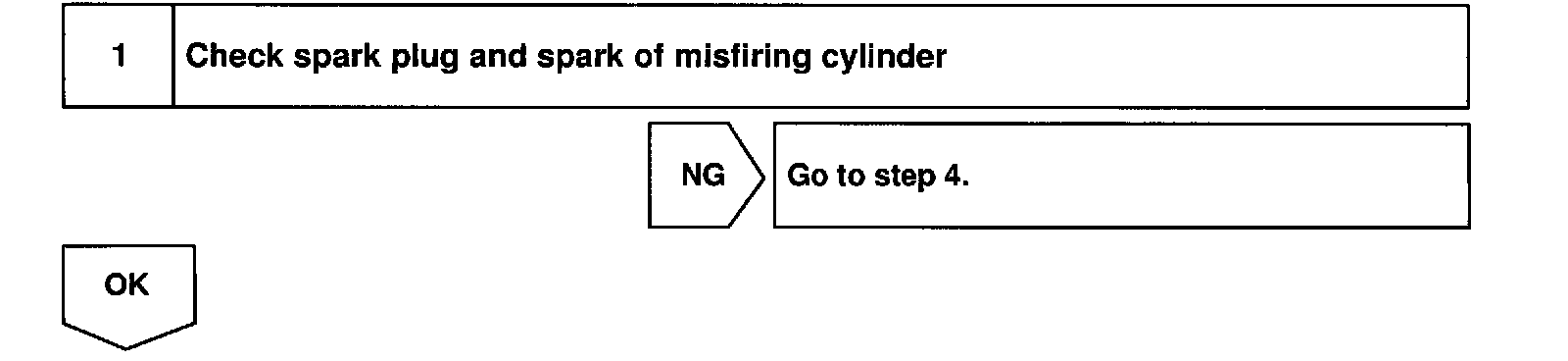

Step 1:

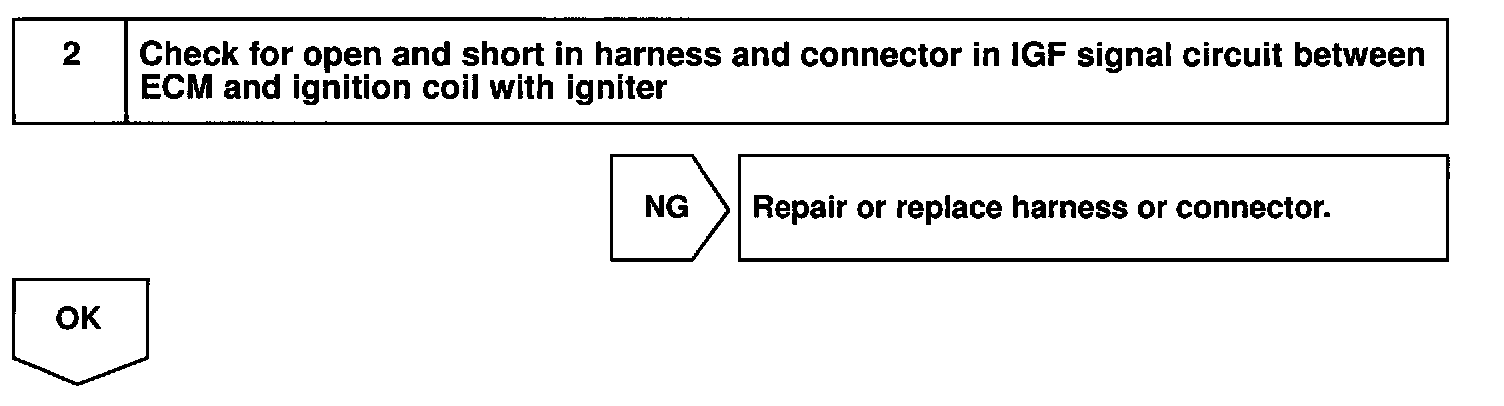

Step 2:

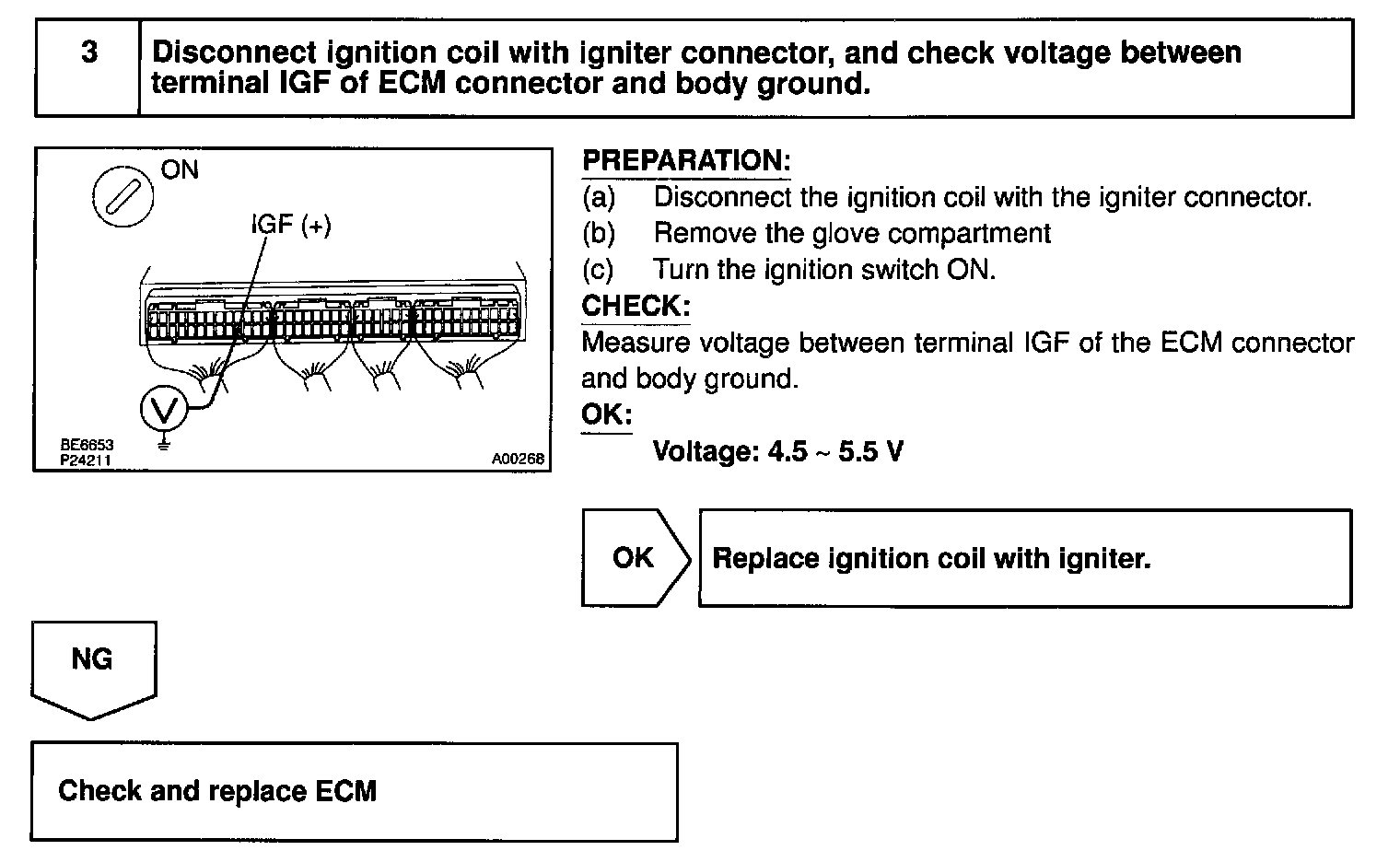

Step 3:

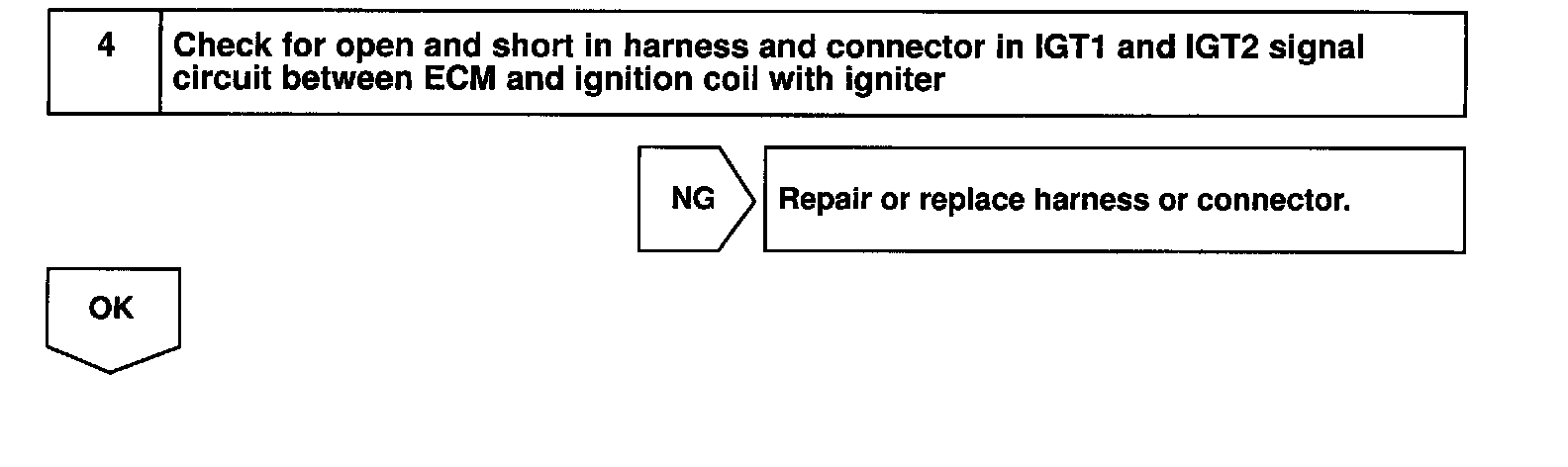

Step 4:

Step 5:

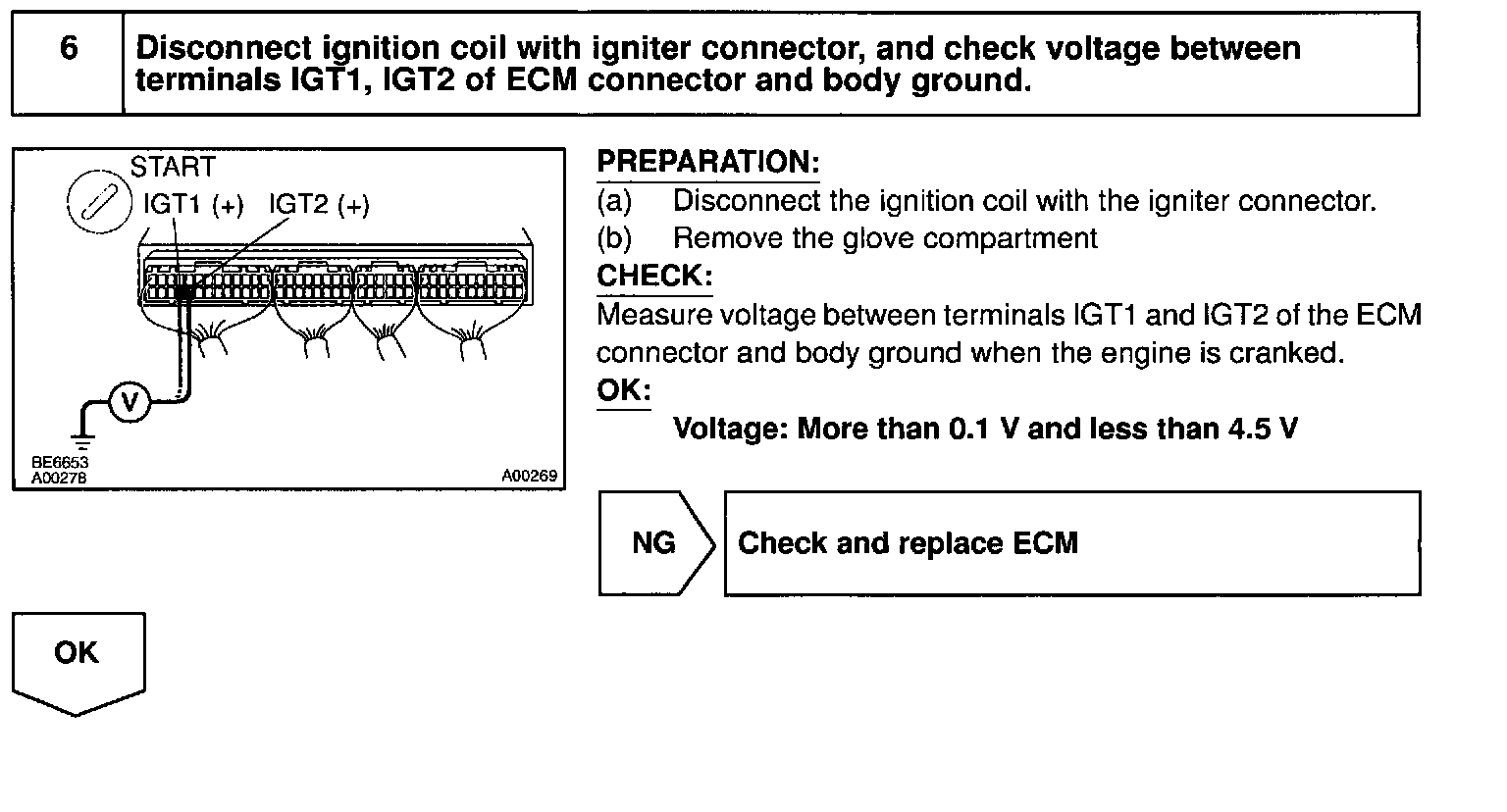

Step 6:

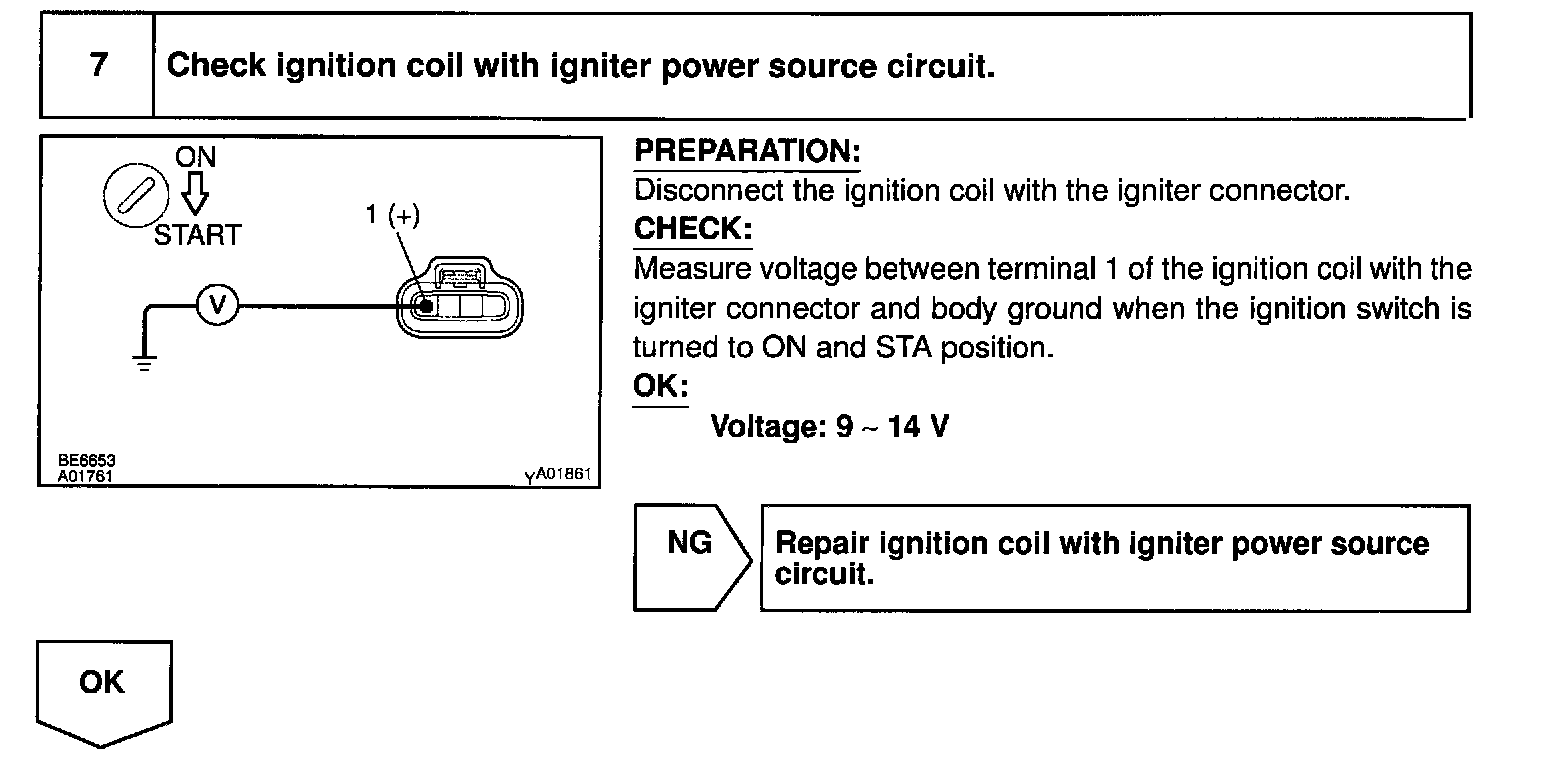

Step 7:

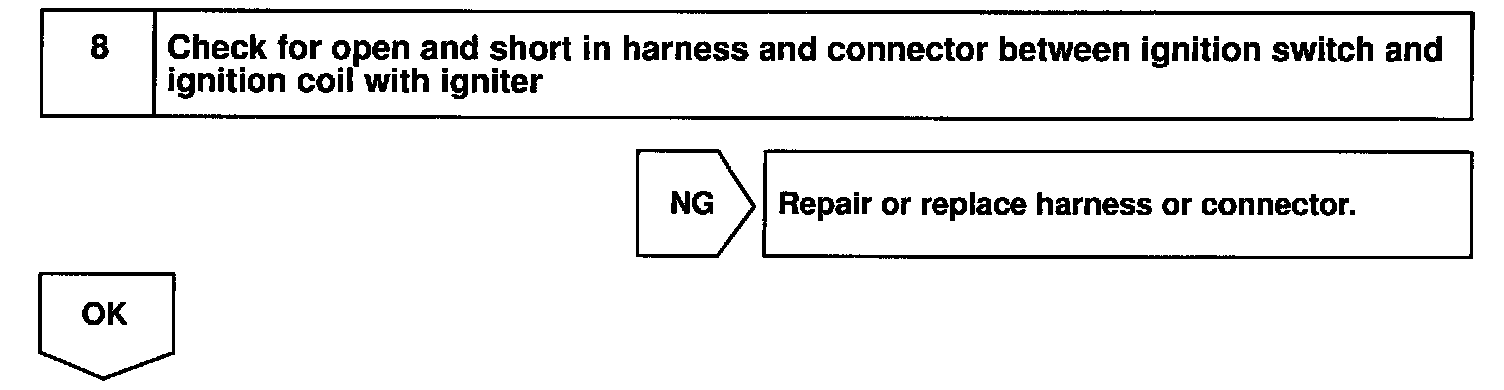

Step 8:

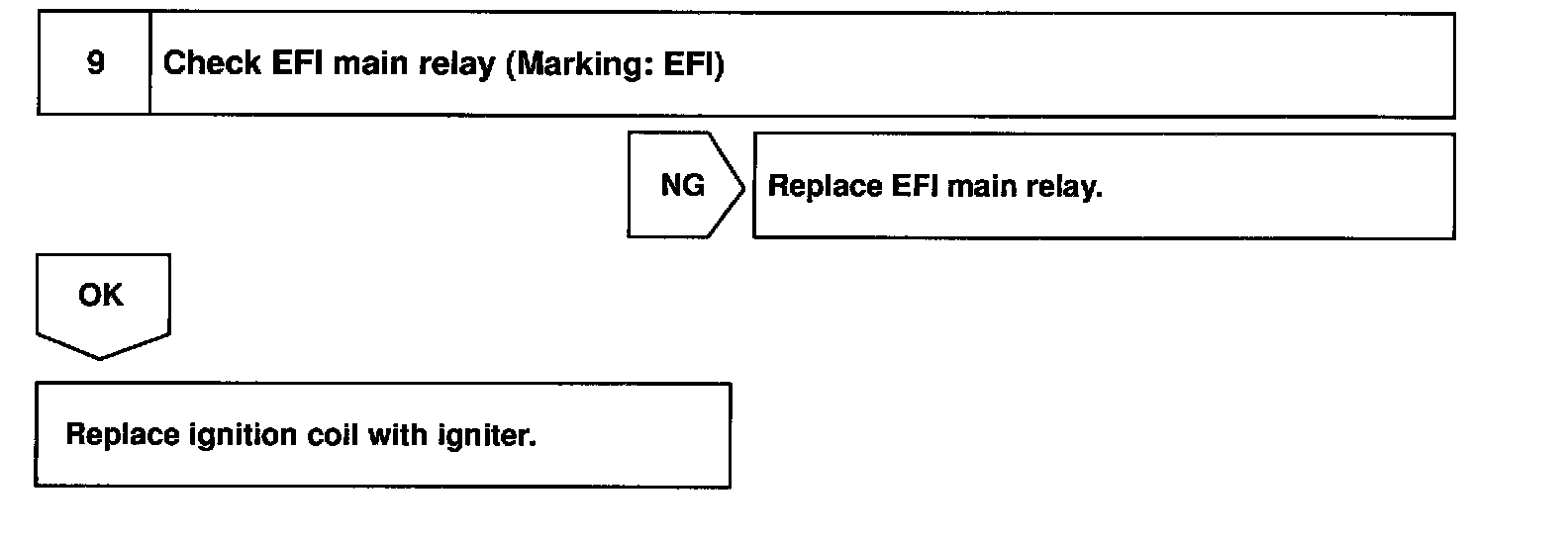

Step 9:

INSPECTION PROCEDURE

HINT:
- DTC P1300 is for the ignition circuit of the No.1 and No.4 cylinders.
- DTC P1310 is for the ignition circuit of the No.2 and No.3 cylinders.
- Read freeze frame data using TOYOTA hand-held tester or OBD II scan tool. Because freeze frame records the engine conditions when the malfunction is detected, when troubleshooting it is useful for determining whether the vehicle was running or stopped, the engine warmed up or not, the air-fuel ratio lean or rich, etc. at the time of the malfunction.
