P0770

DTC: P0770 - Shift Solenoid E Malfunction




SYSTEM DESCRIPTION
The ECM uses the signals from the Throttle position sensor, Air-flow meter and crankshaft position sensor to monitor the engagement condition of the lock-up clutch.

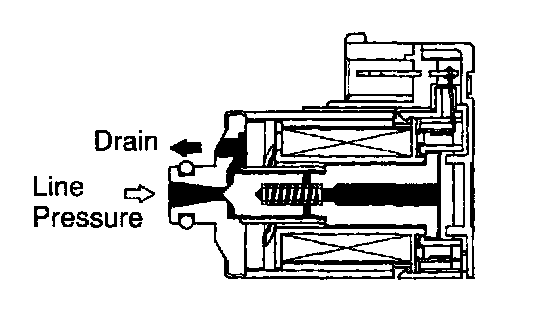

Then the ECM compares the engagement condition of the lock-up clutch with the lock-up schedule in the ECM memory to detect mechanical trouble of the shift solenoid valve SL, valve body and torque converter clutch.

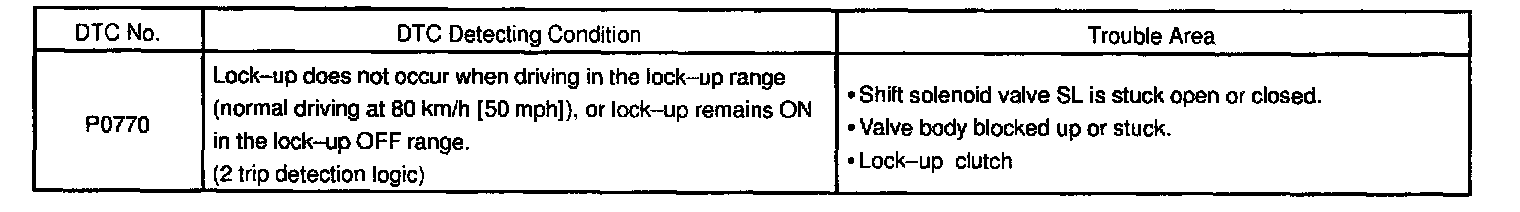

DETECTING CONDITIONS

Step 1:

Step 2:

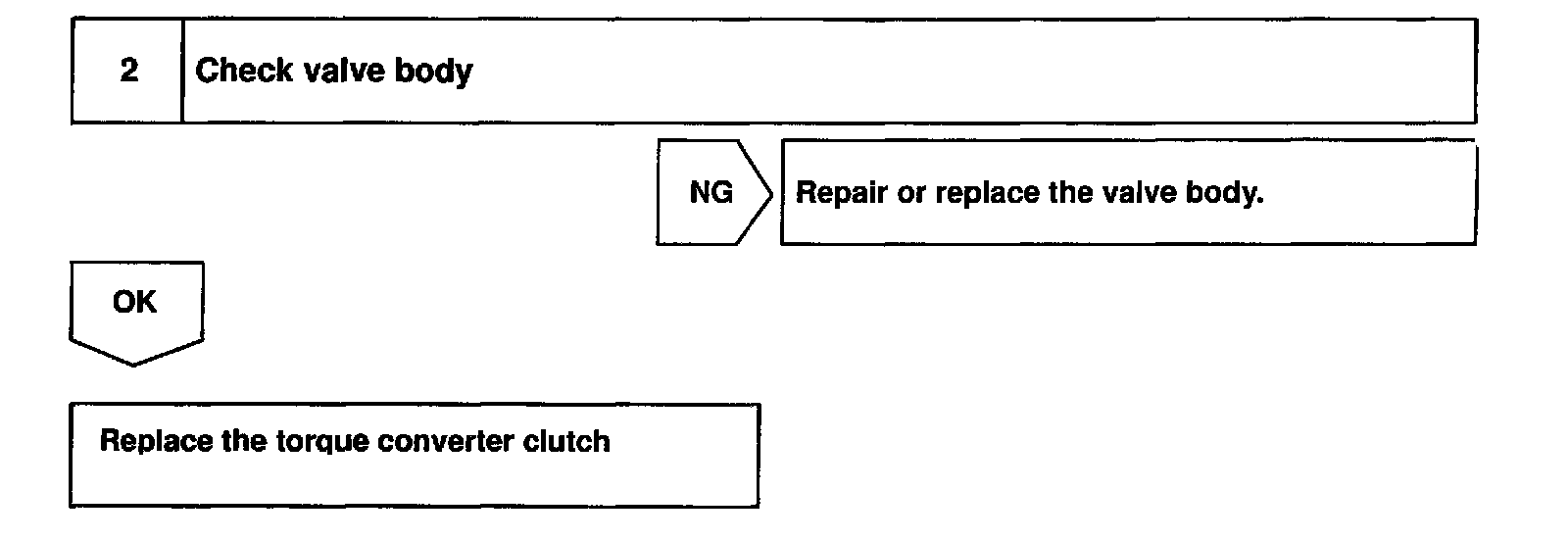

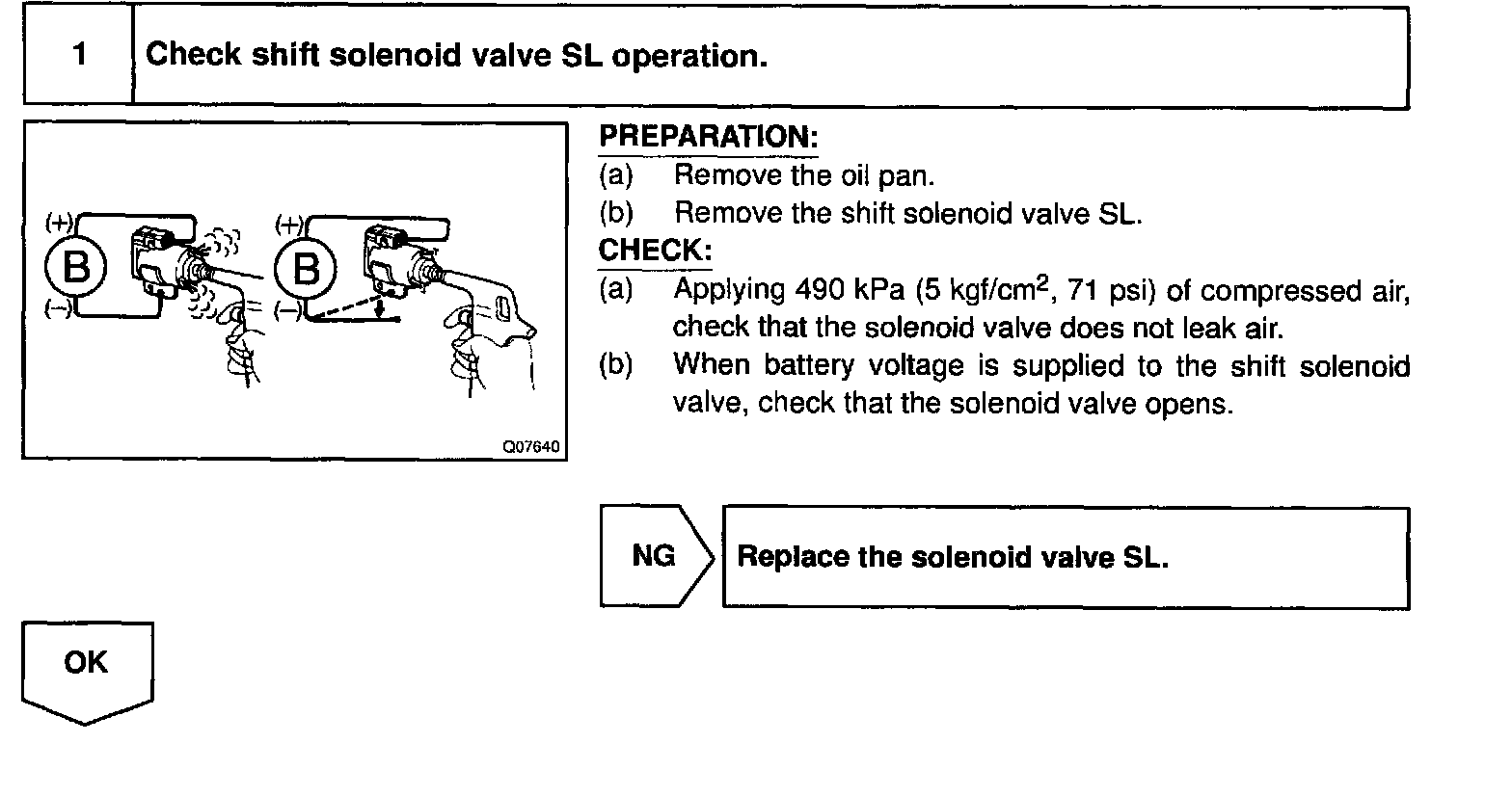

INSPECTION PROCEDURE
