Troubleshooting

DTC PO71O - Transmission Fluid Temperature Sensor Circuit Malfunction

CIRCUIT DESCRIPTION
The ATF temperature sensor converts fluid temperature into a resistance value which is input into the ECM.

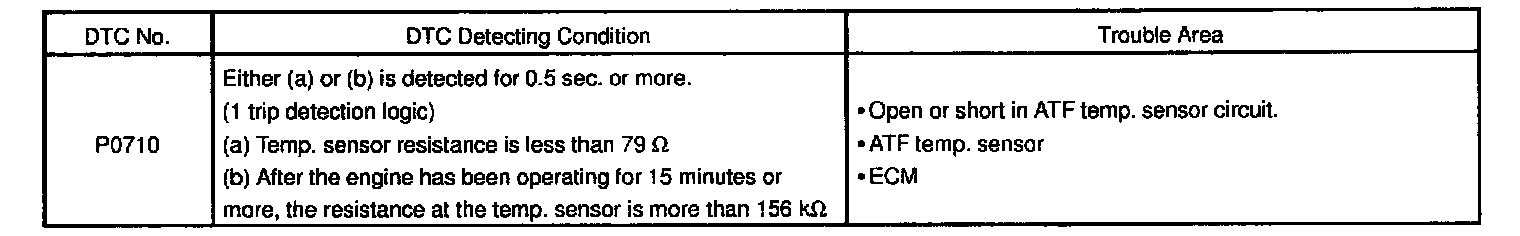

DETECTING CONDITIONS




WIRING DIAGRAM

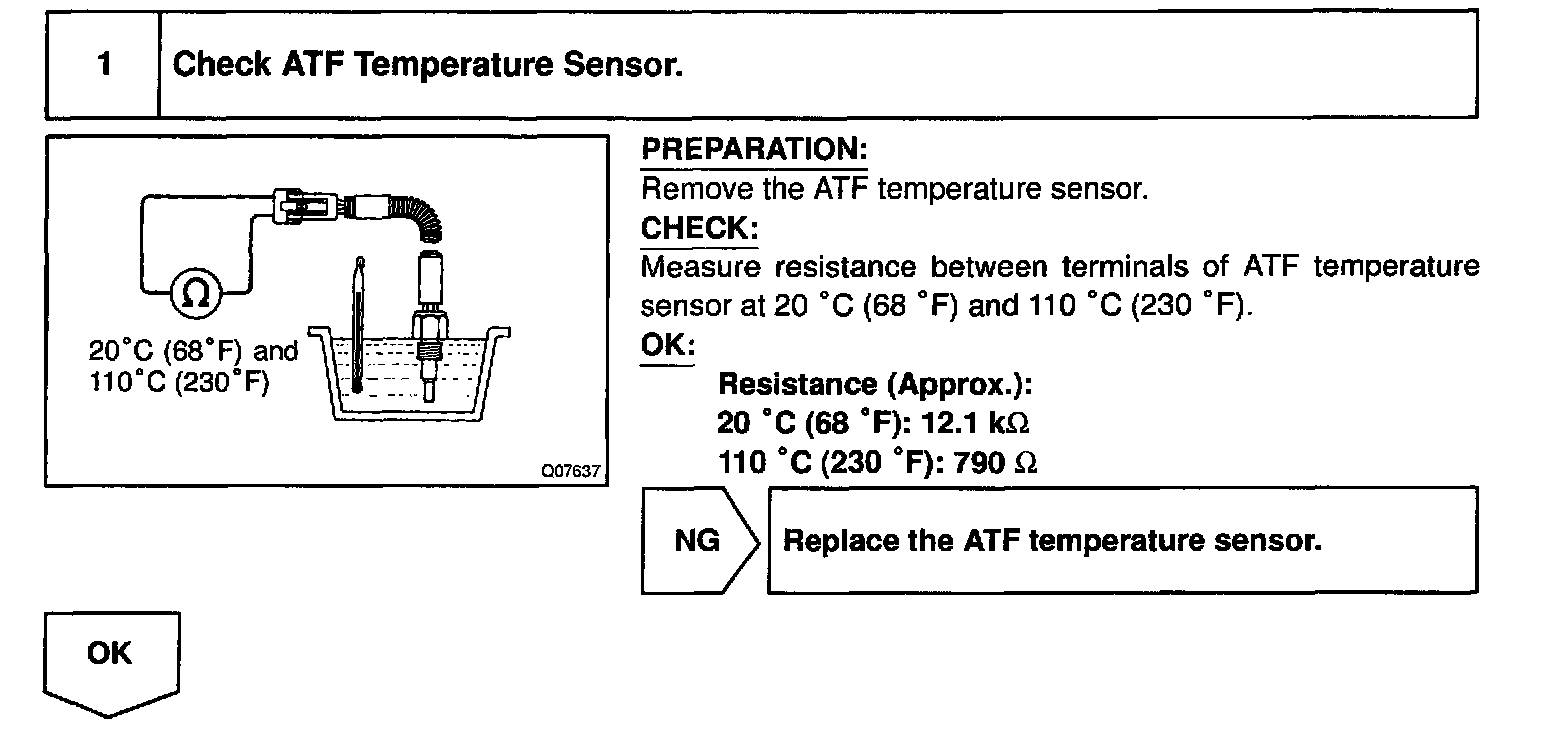

Step 1:

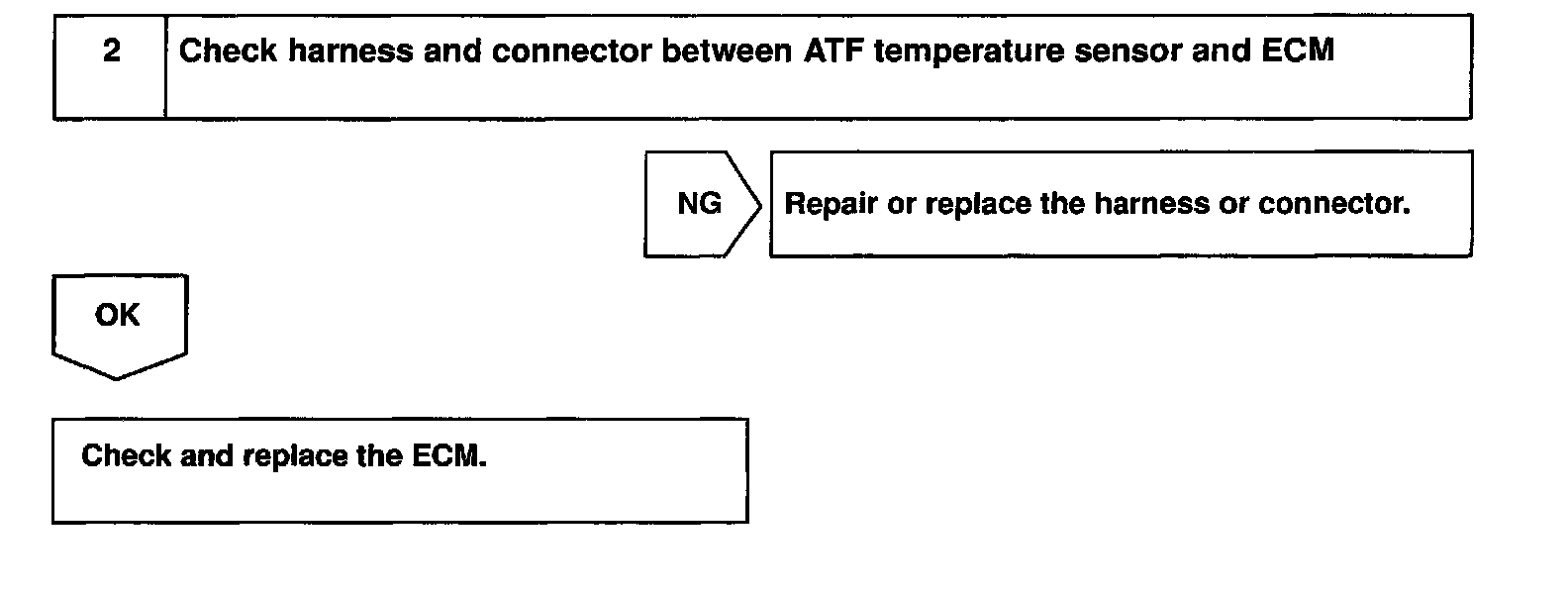

Step 2:

INSPECTION PROCEDURE
