DTC 16

DTC 16 Front Airbag Sensor (LH) Malfunction




CIRCUIT DESCRIPTION
The front airbag sensor (LH) circuit consists of the airbag sensor assembly and front airbag sensor (LH).
For details of the function of each component, see OPERATION.
DTC B1158/B1159/15 is recorded when malfunction is detected in the front airbag sensor (LH) circuit.

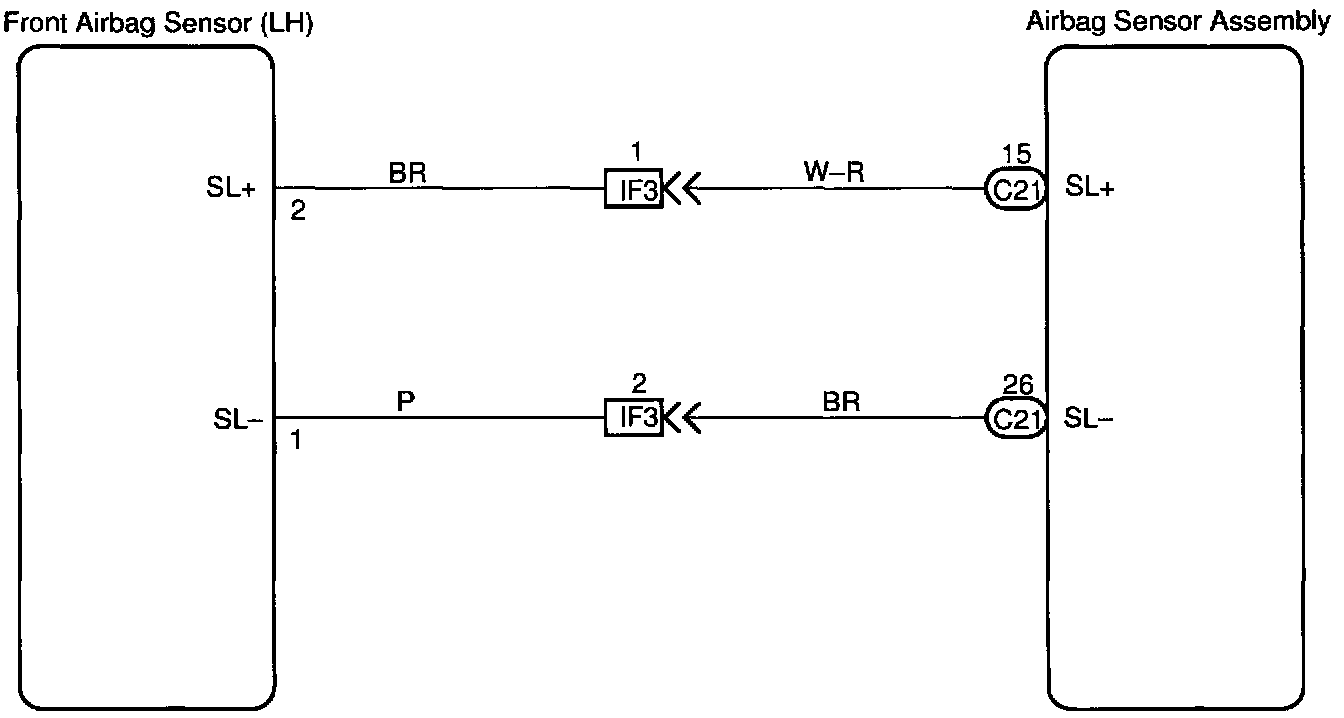

WIRING DIAGRAM

INSPECTION PROCEDURE




Step 1/Prepare for Inspection

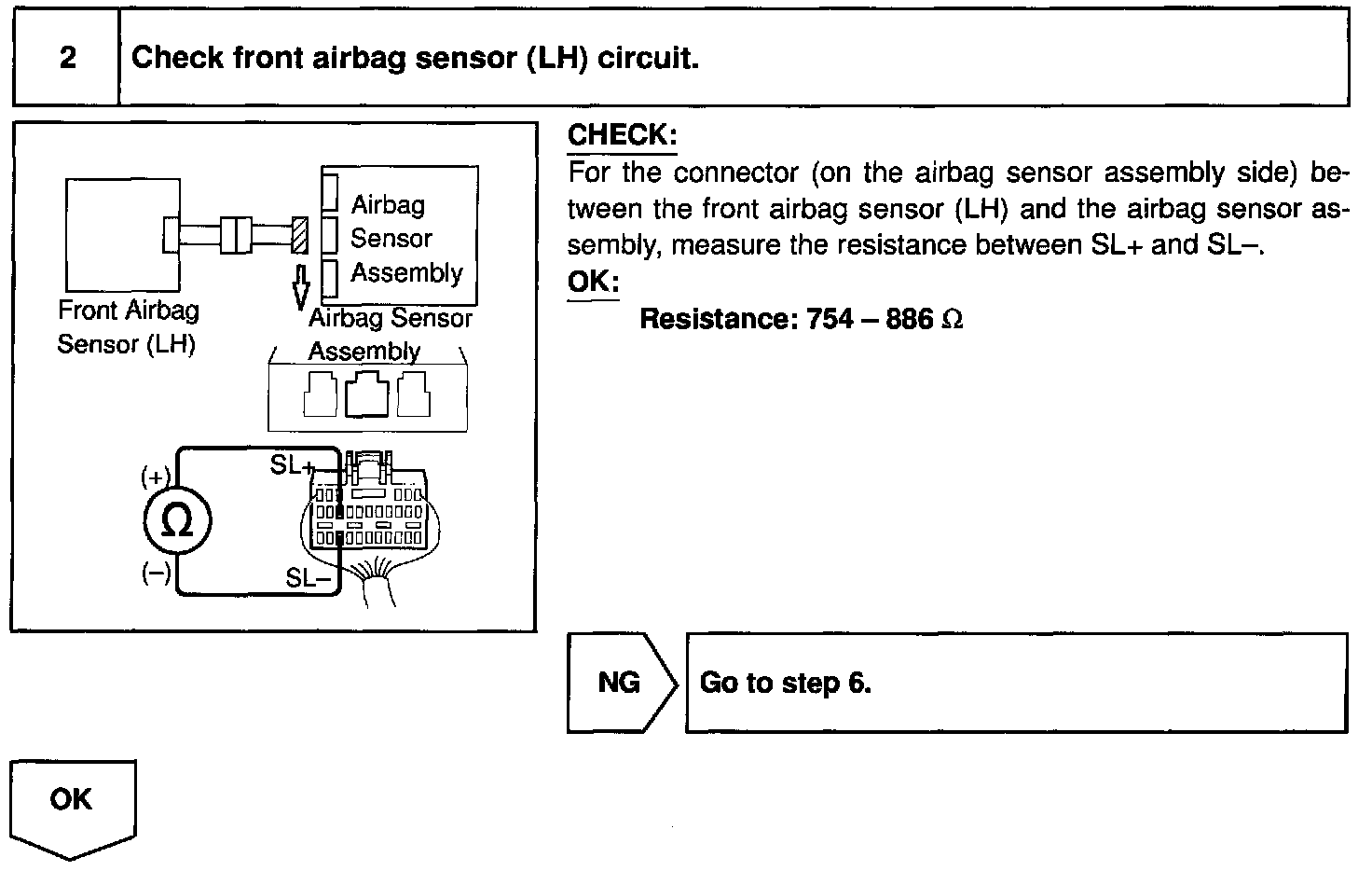

Step 2/Check front airbag sensor (LH) circuit

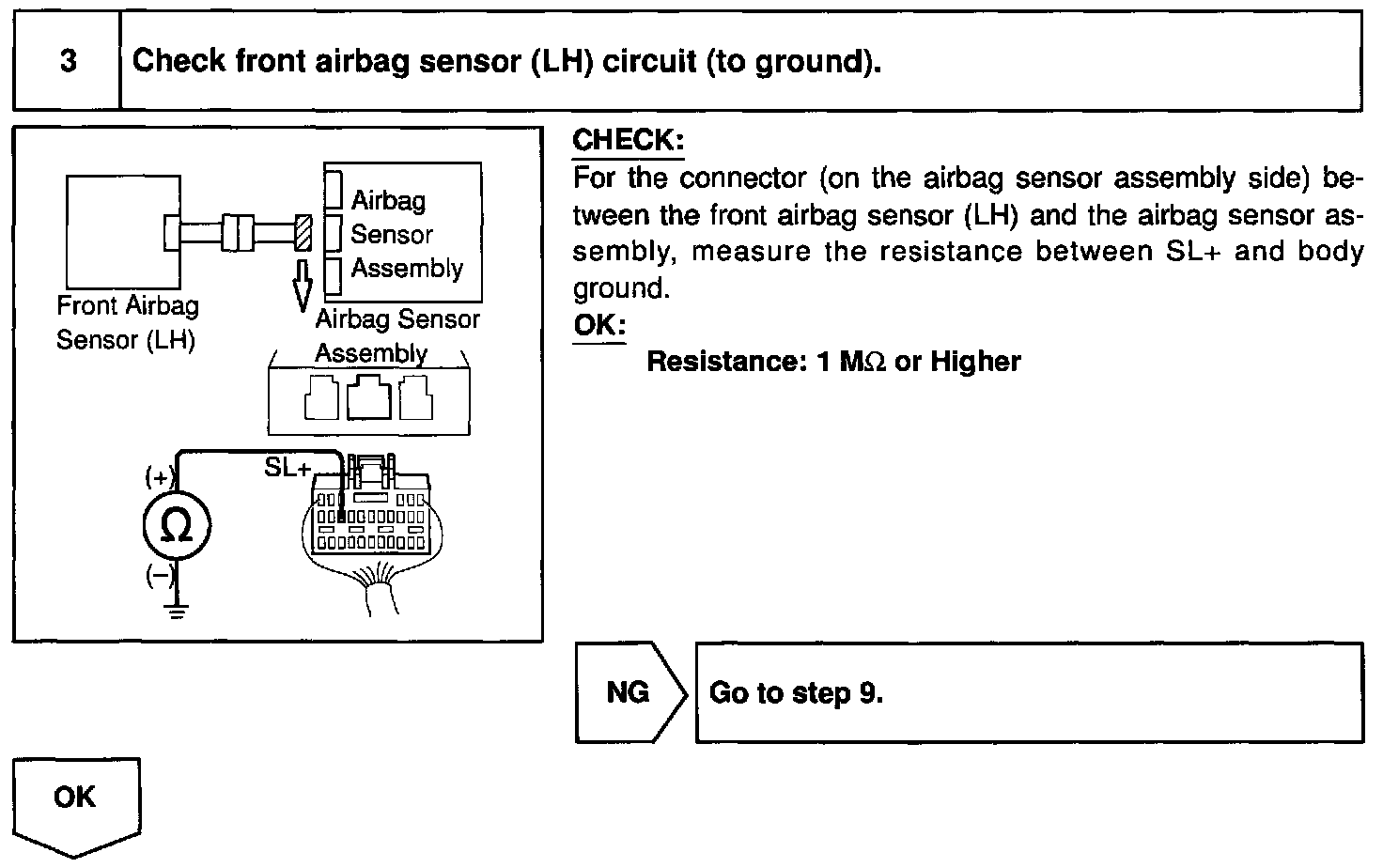

Step 3/Check front airbag sensor (LH) circuit (to Ground)

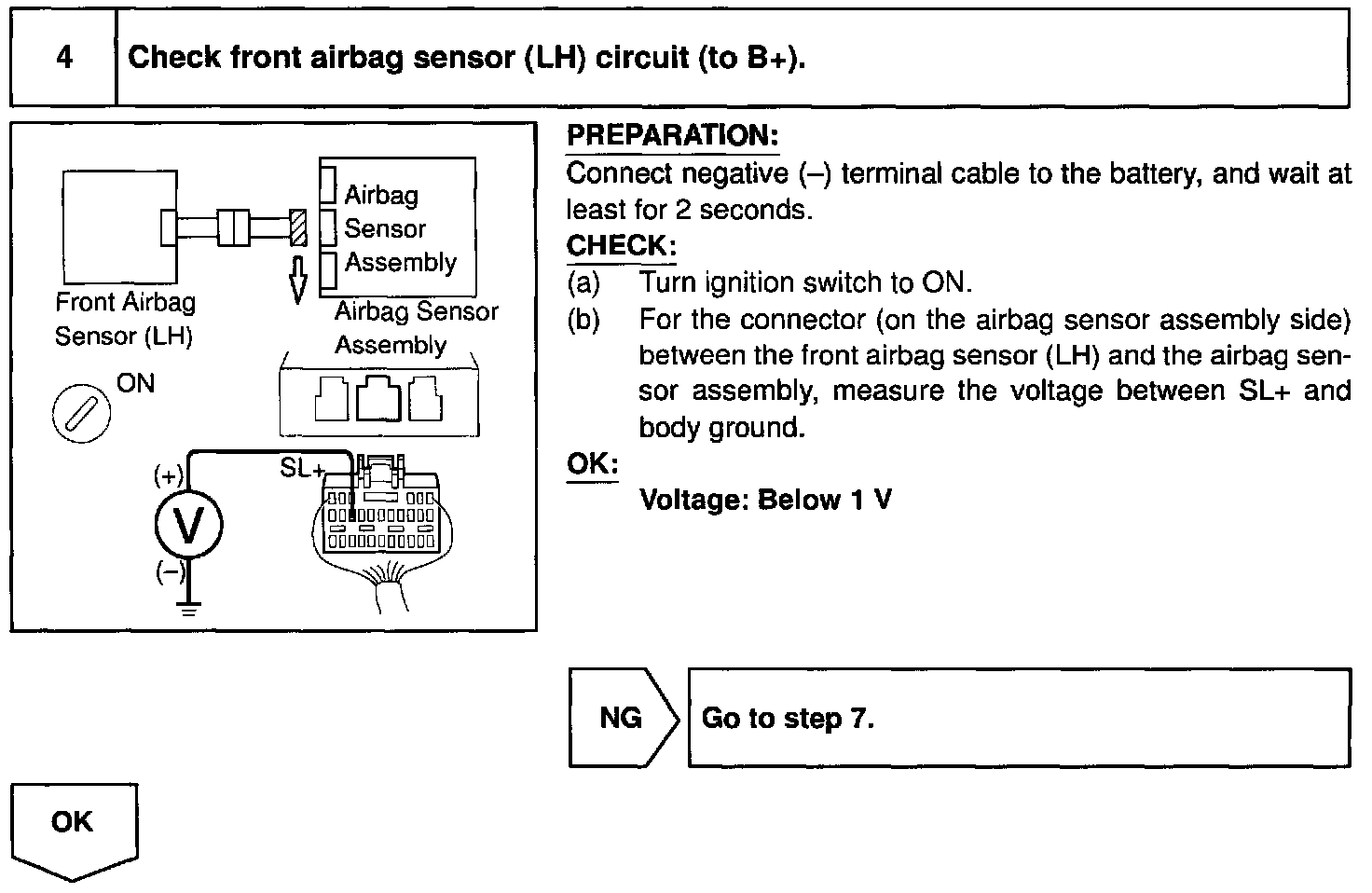

Step 4/Check front airbag sensor (LH) circuit (to B+)

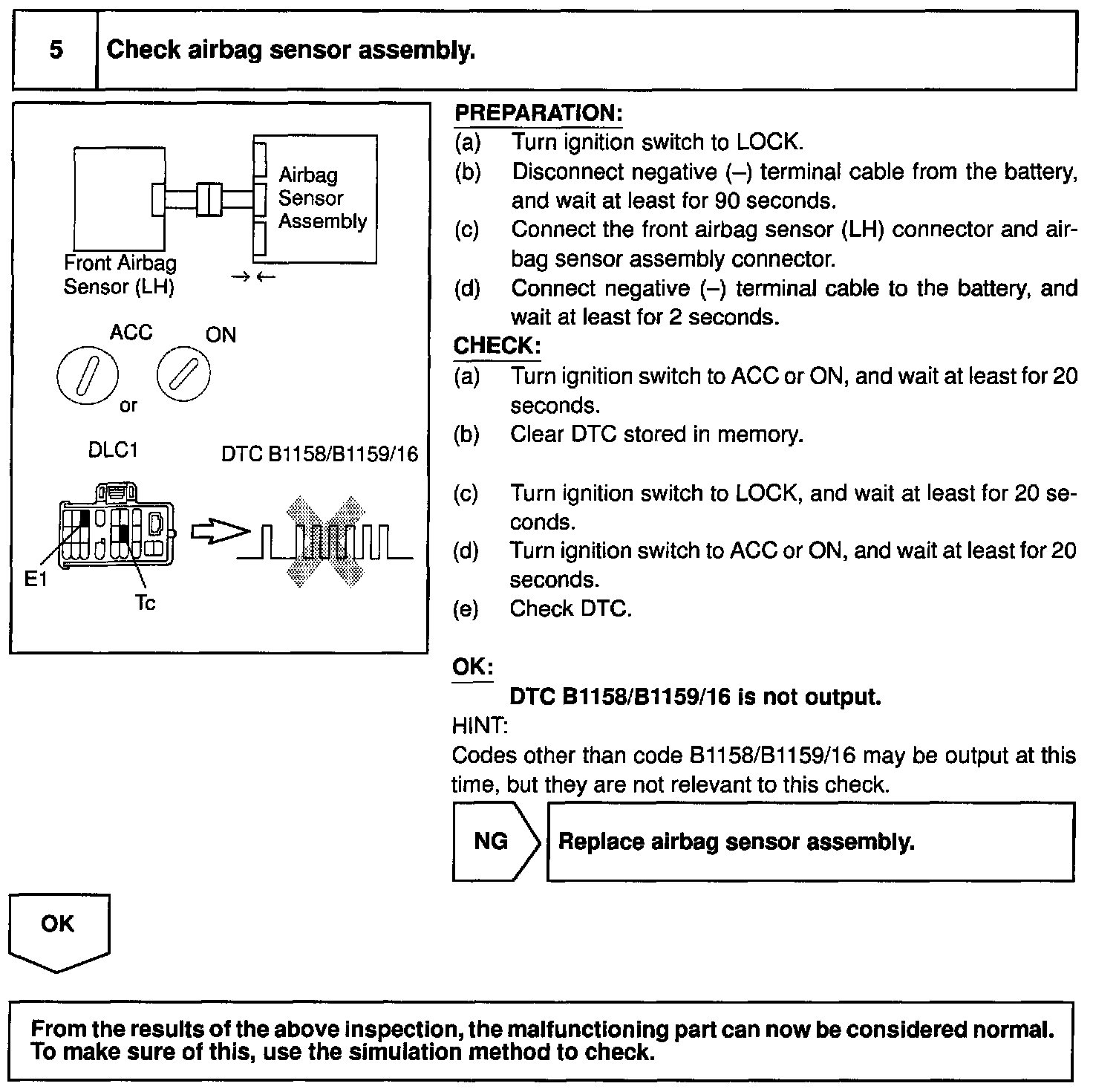

Step 5/Check airbag sensor assembly

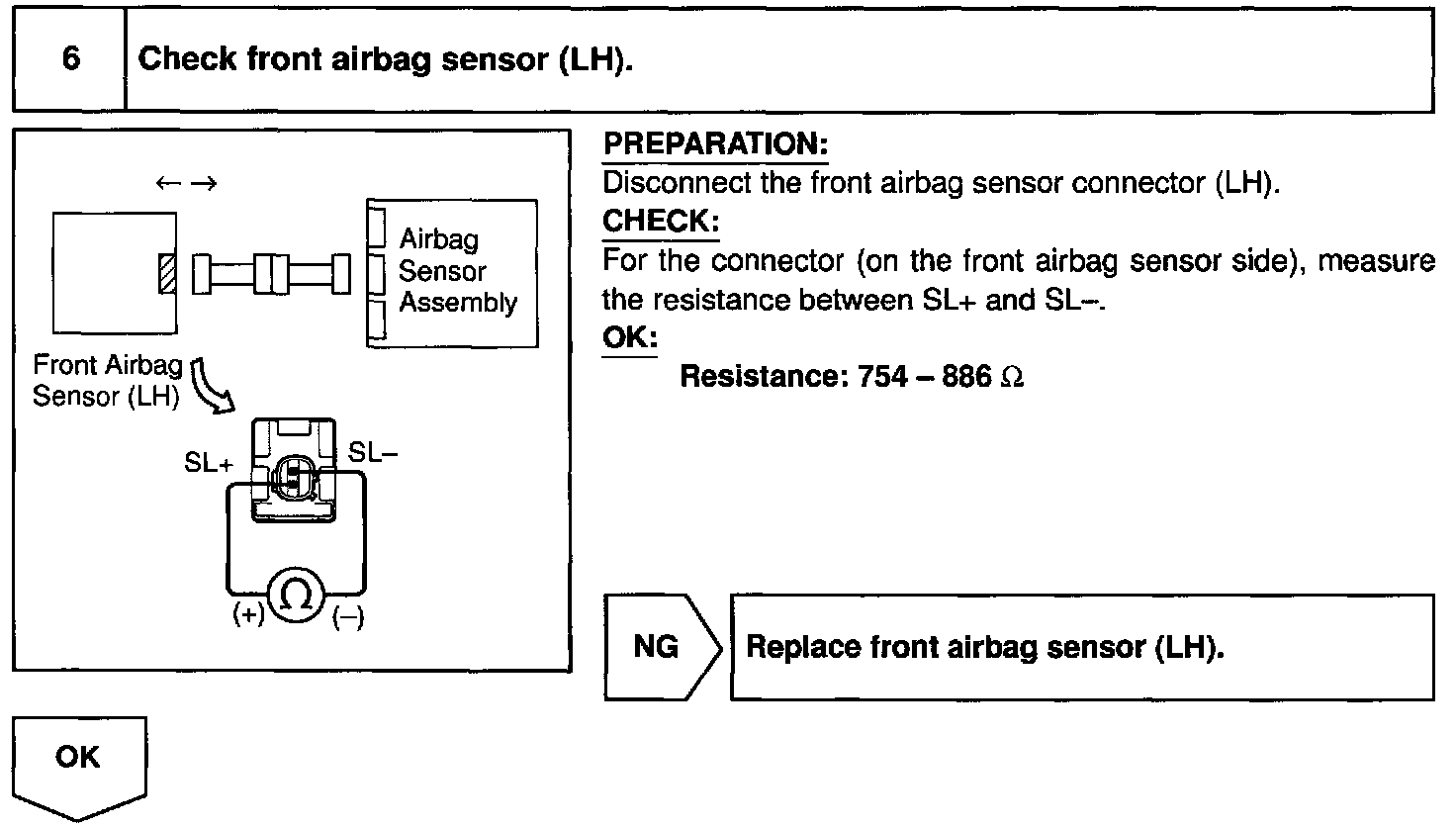

Step 6/Check front airbag sensor (LH)

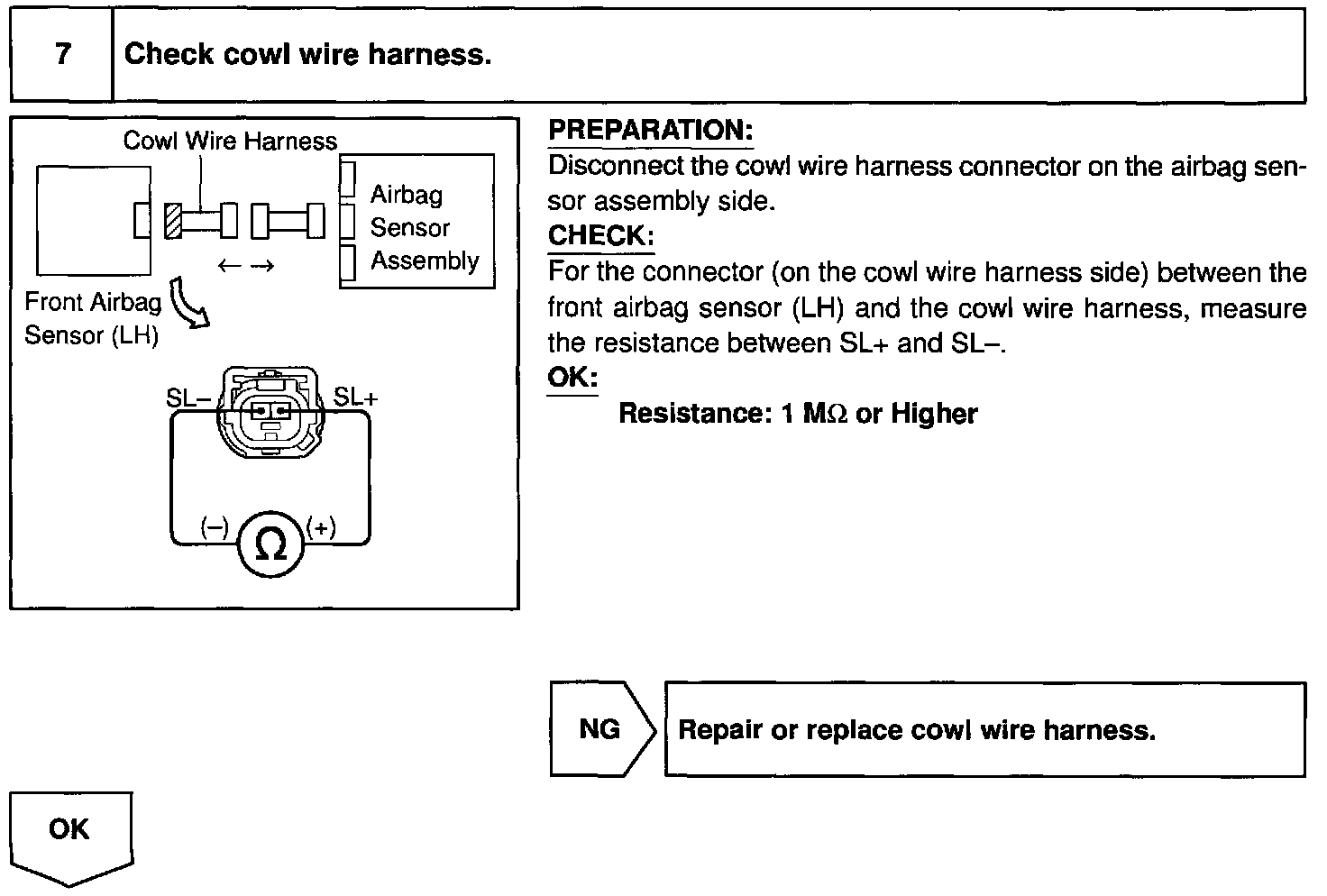

Step 7/Check cowl wire harness

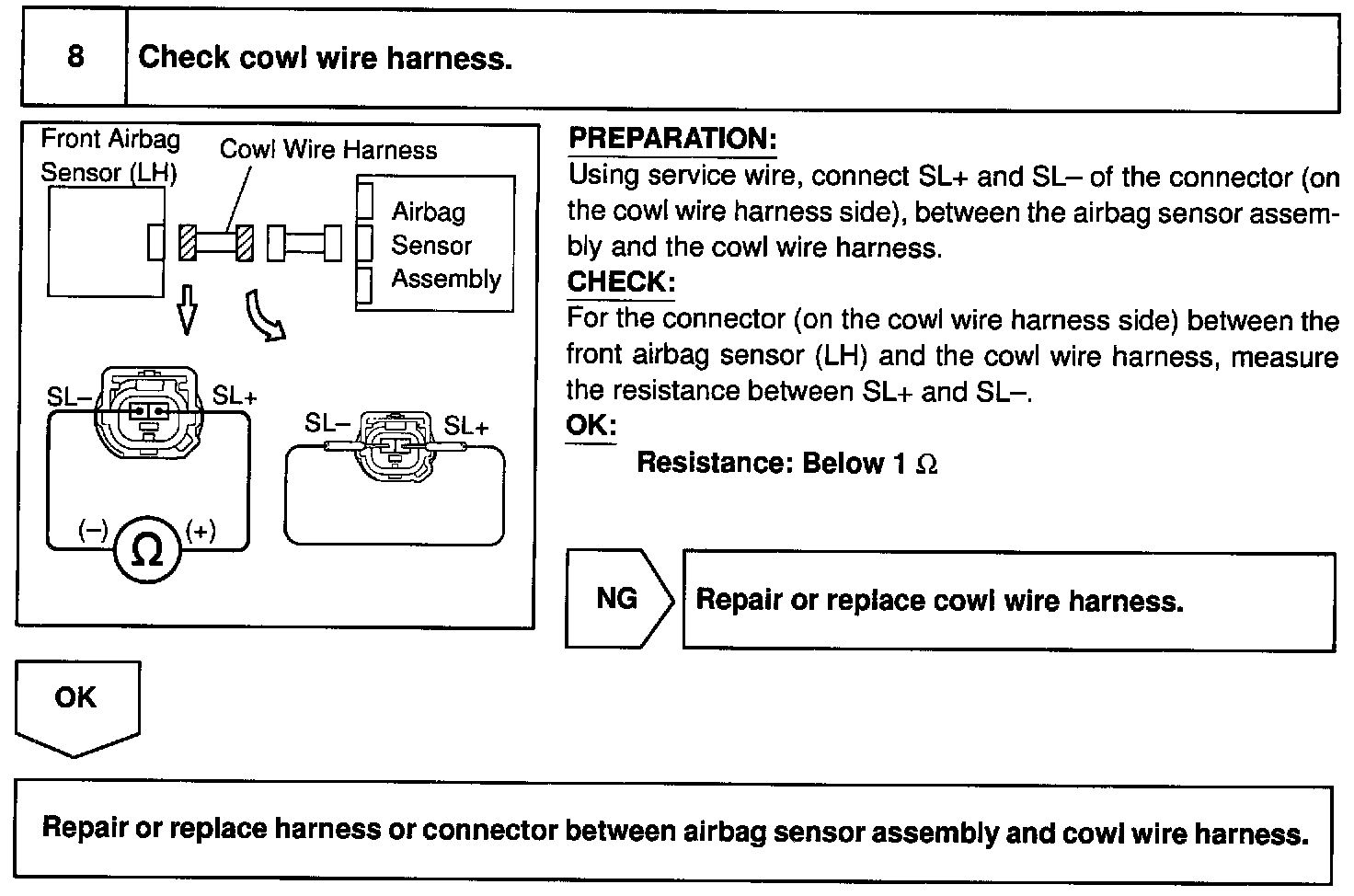

Step 8/Check cowl wire harness

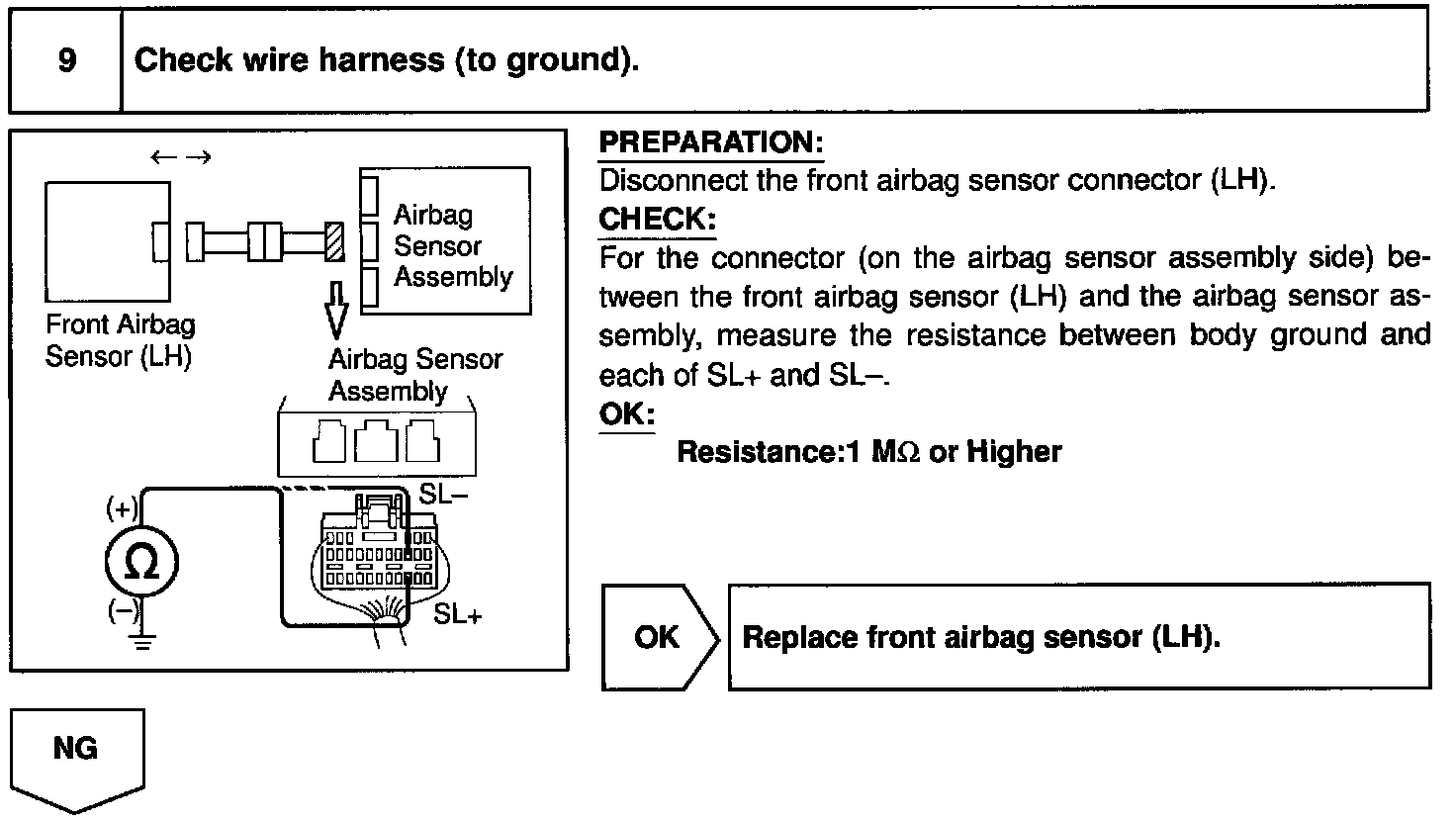

Step 9/Check cowl wire harness (to ground)

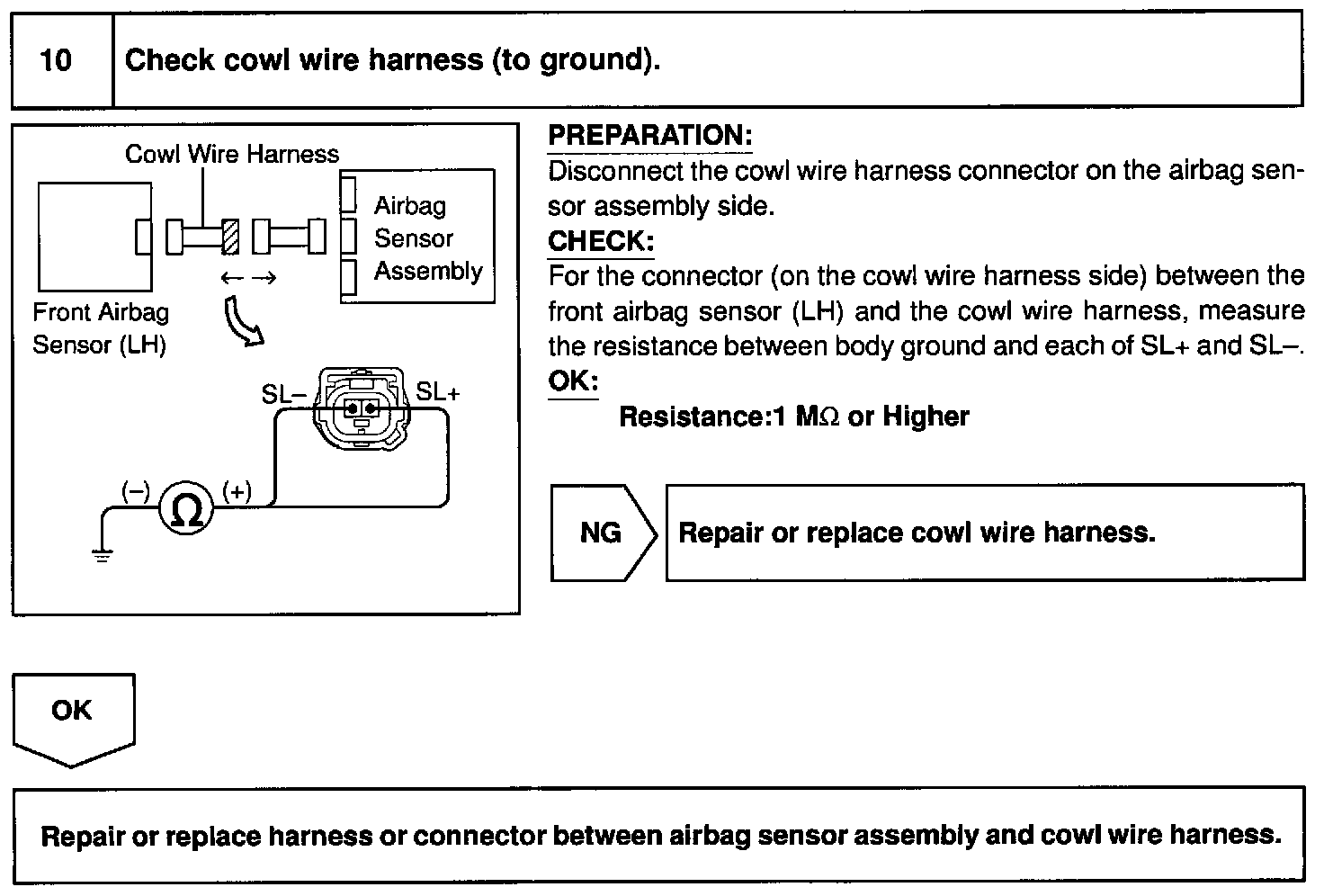

Step 10/Check cowl wire harness (to ground)

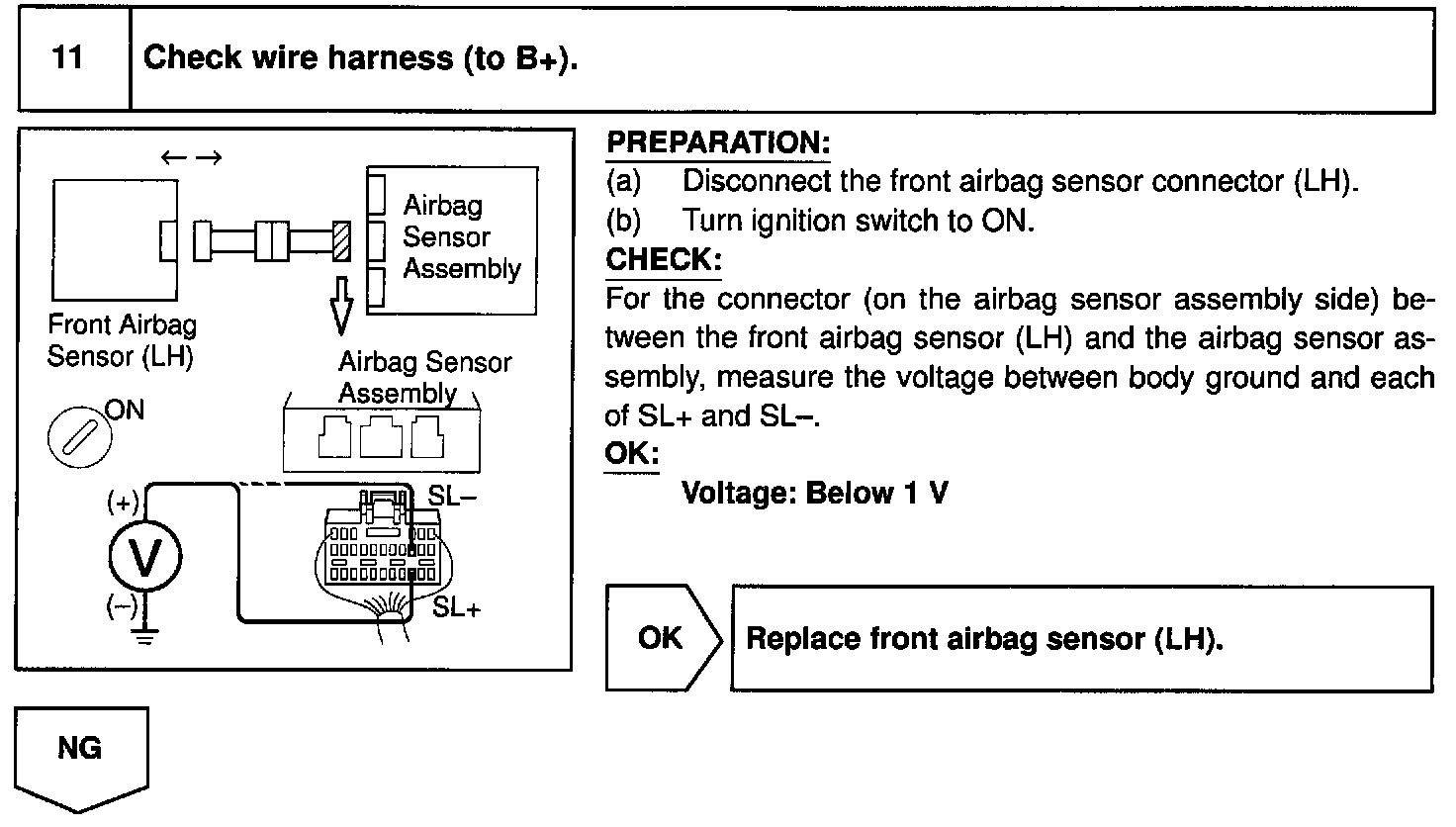

Step 11/Check wire harness (to B+)

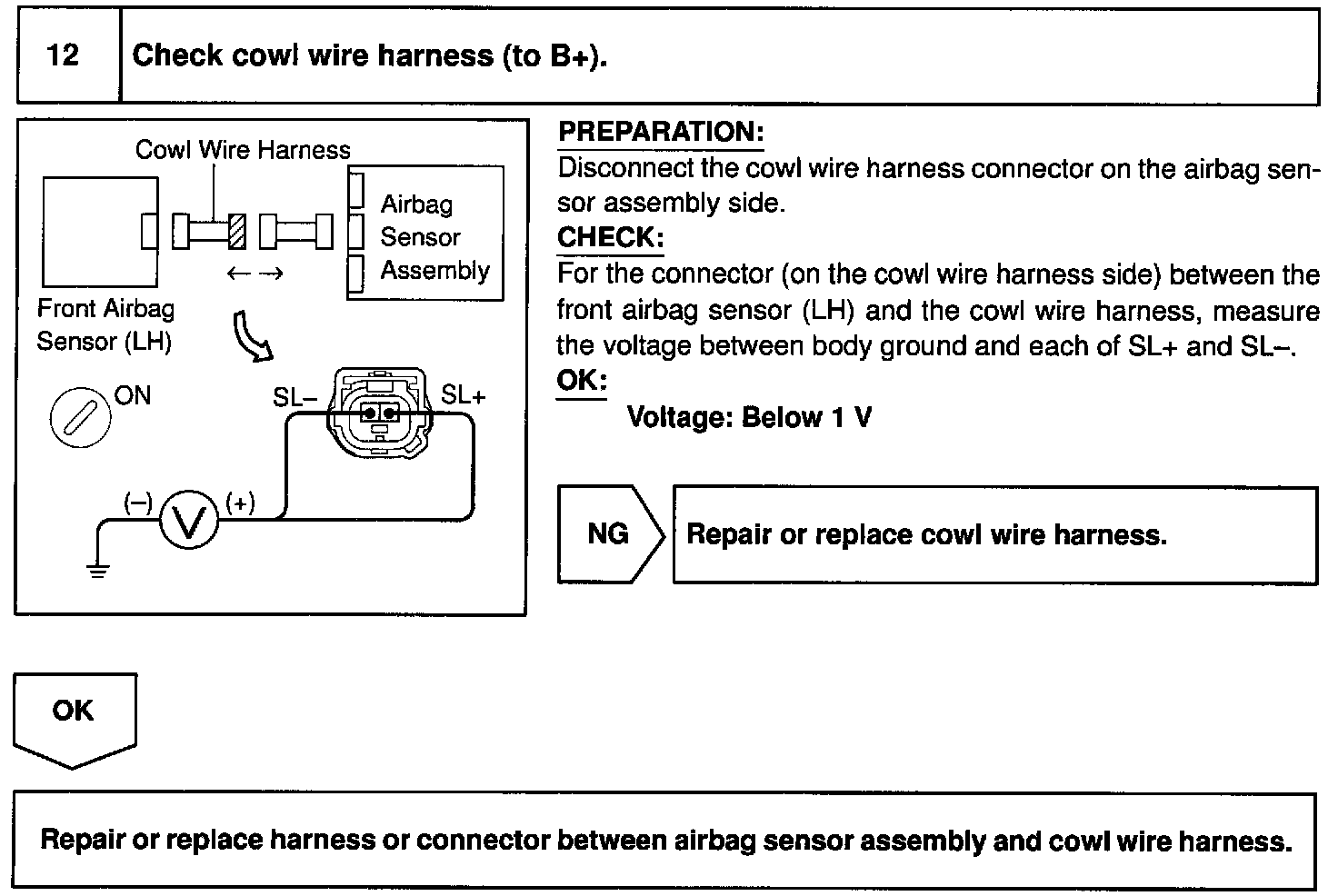

Step 12/Check cowl wire harness (to B+)
