DTC 11

DTC 11 ABS Control (Solenoid) Relay Circuit

CIRCUIT DESCRIPTION
This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay goes on.

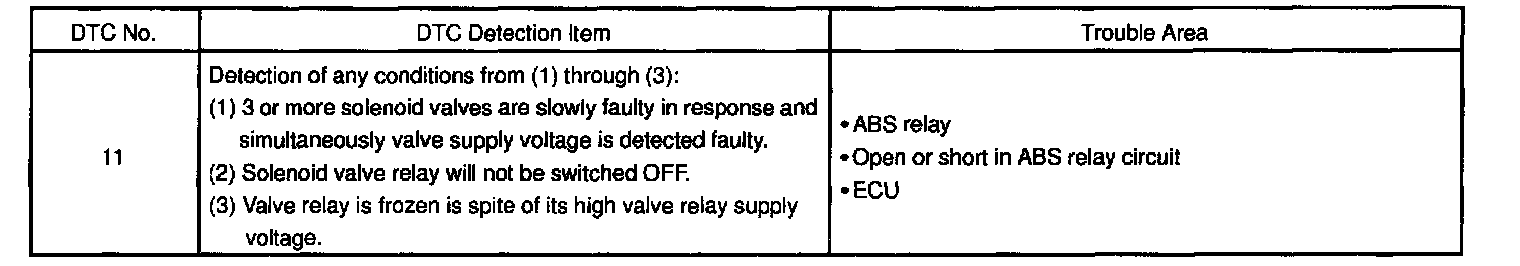

DETECTING CONDITIONS

Fail safe function:
If trouble occurs in the ABS relay circuit, the ECU cuts off current to the ABS relay and prohibits ABS control.

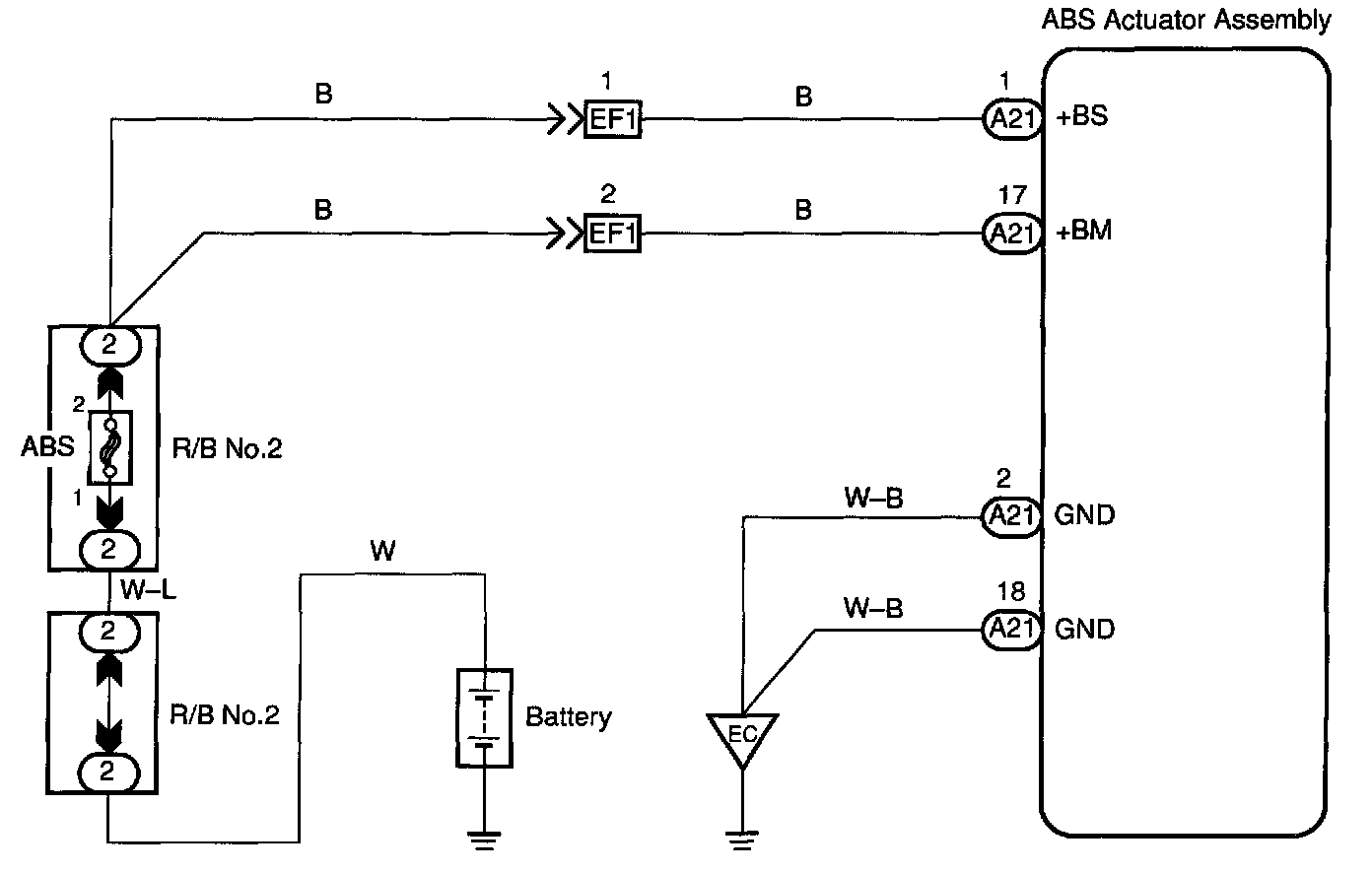

WIRING DIAGRAM

Step 1:

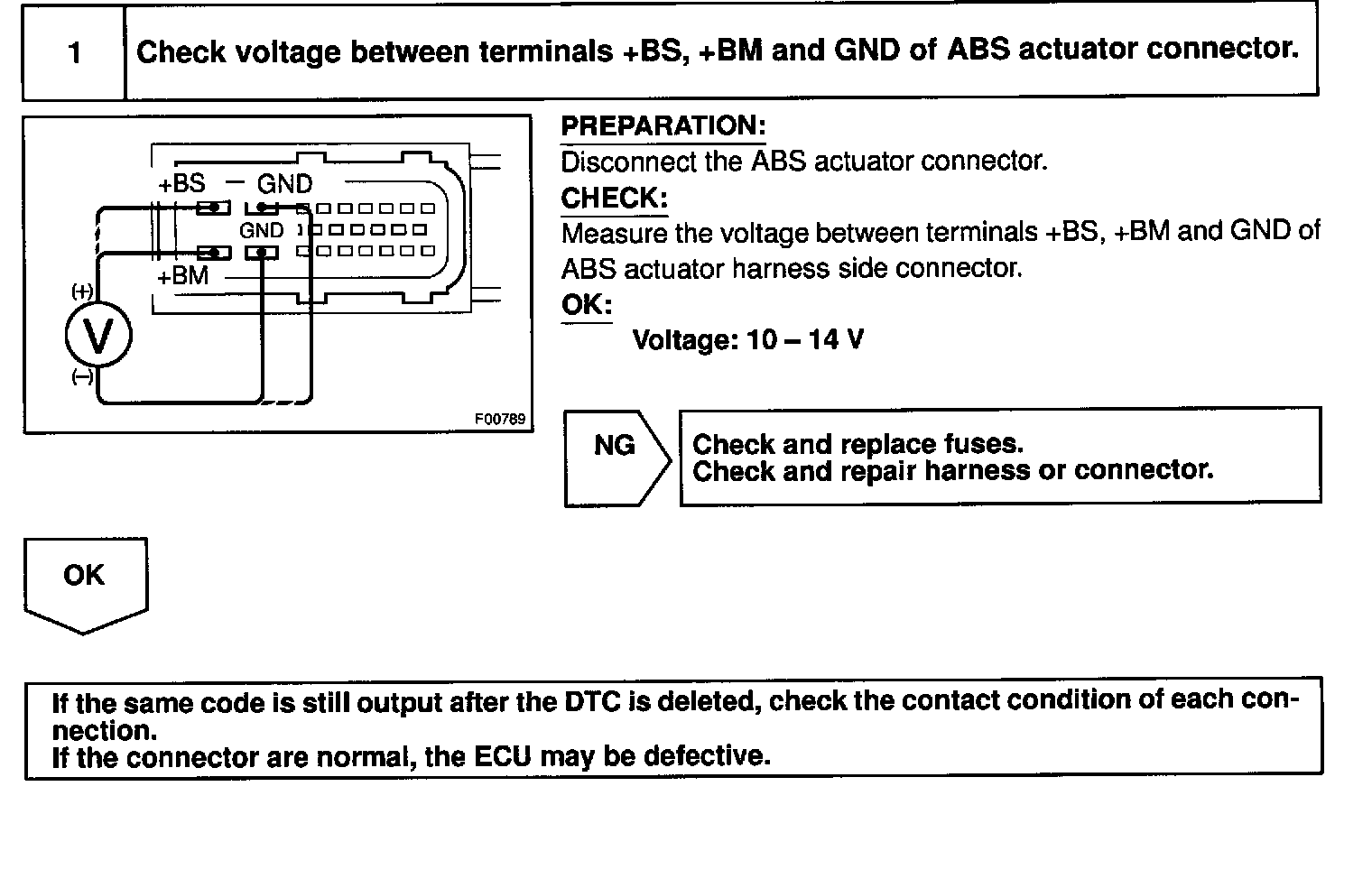

INSPECTION PROCEDURE
