ABS (Antilock Brake System)

Diagnosis System

HINT:
- Using SST 09843-18020, connect the terminals Tc and E1.

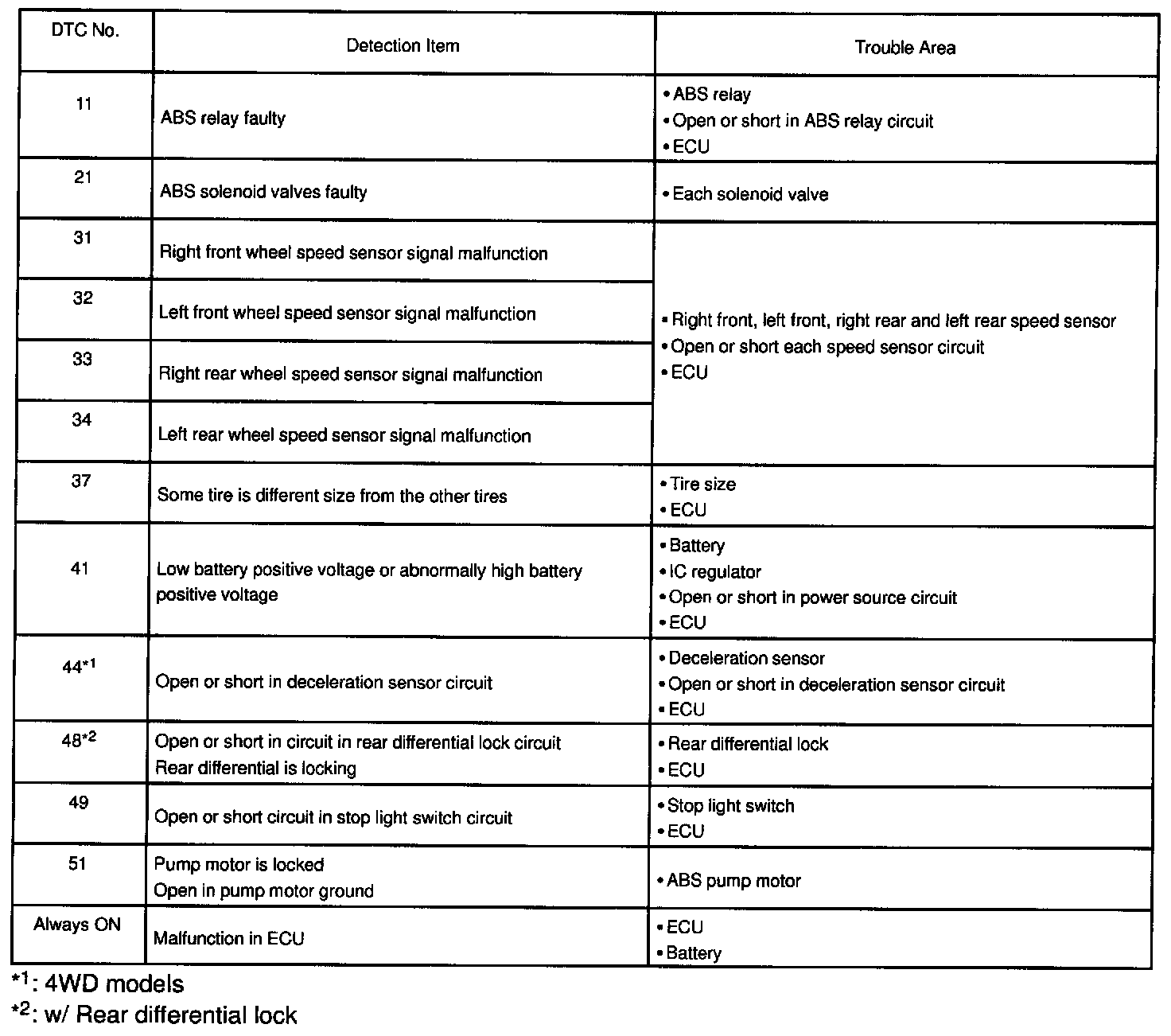

- If a malfunction code is displayed during the DTC check, check the circuit listed that the code.

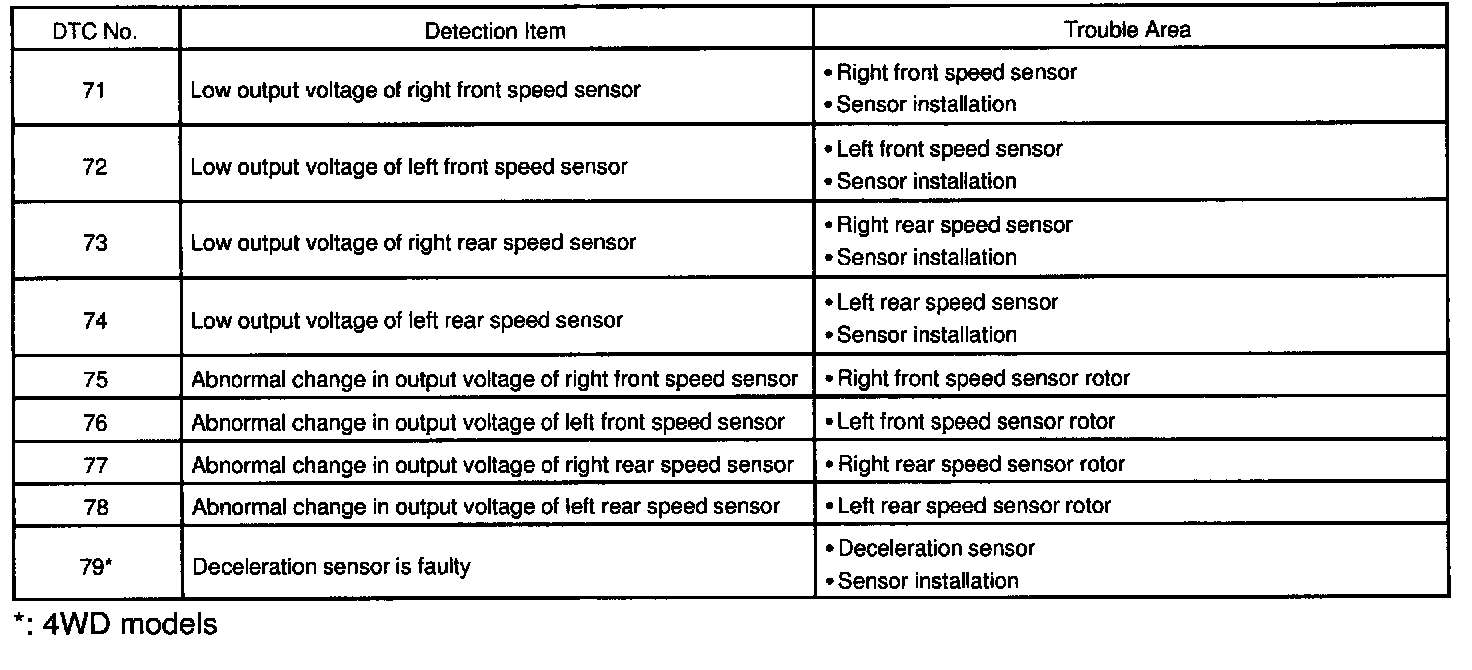

DTC of the Speed Sensor Check Function






HINT:
See the list of DTC shown above.
- If every sensor is normal, a normal code is output (A cycle of 0.25 sec. ON and 0.25 sec. OFF is repeating).
- If 2 or more malfunctions are indicated at the same time, the lowest numbered code will be displayed 1st.
