B0133

DTC B0133 Short In P/T Squib (RH) Circuit (to B+)




CIRCUIT DESCRIPTION

The P/T squib (RH) circuit consists of the airbag sensor assembly and seat belt pretensioner (RH).
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, see OPERATION.
DTC B0133/62 is recorded when a B+ short is detected in the P/T squib (RH) circuit.




WIRING DIAGRAM

INSPECTION PROCEDURE

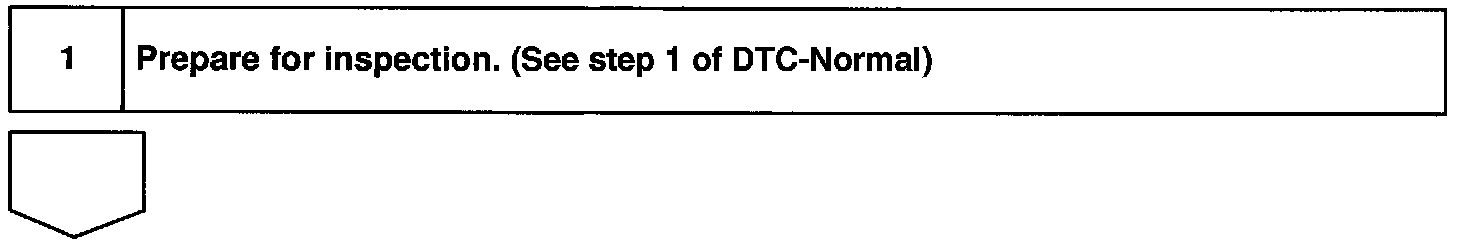

Step 1/Prepare for Inspection

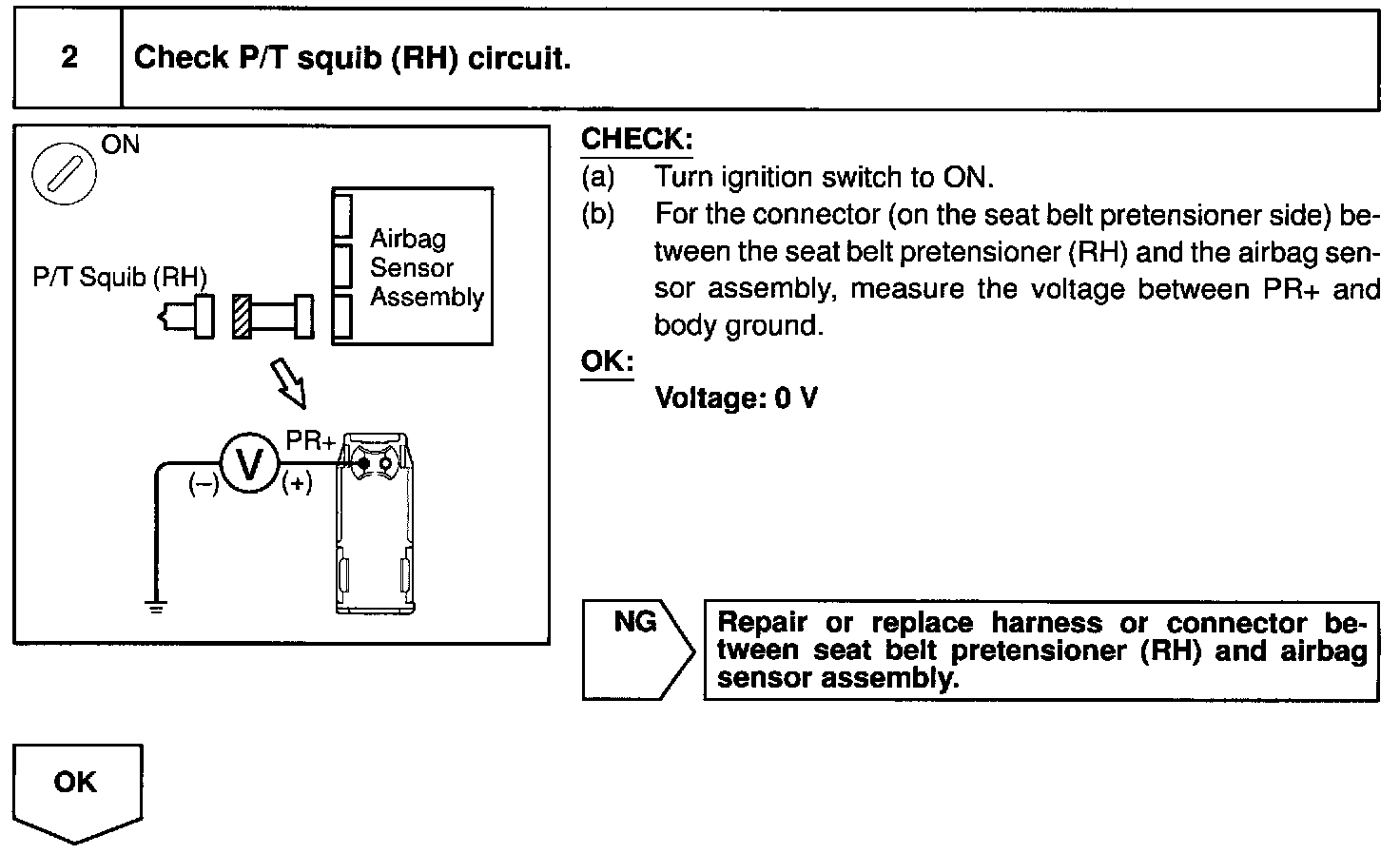

Step 2/Check P/T squib (RH) circuit




Step 3/Check airbag sensor assembly

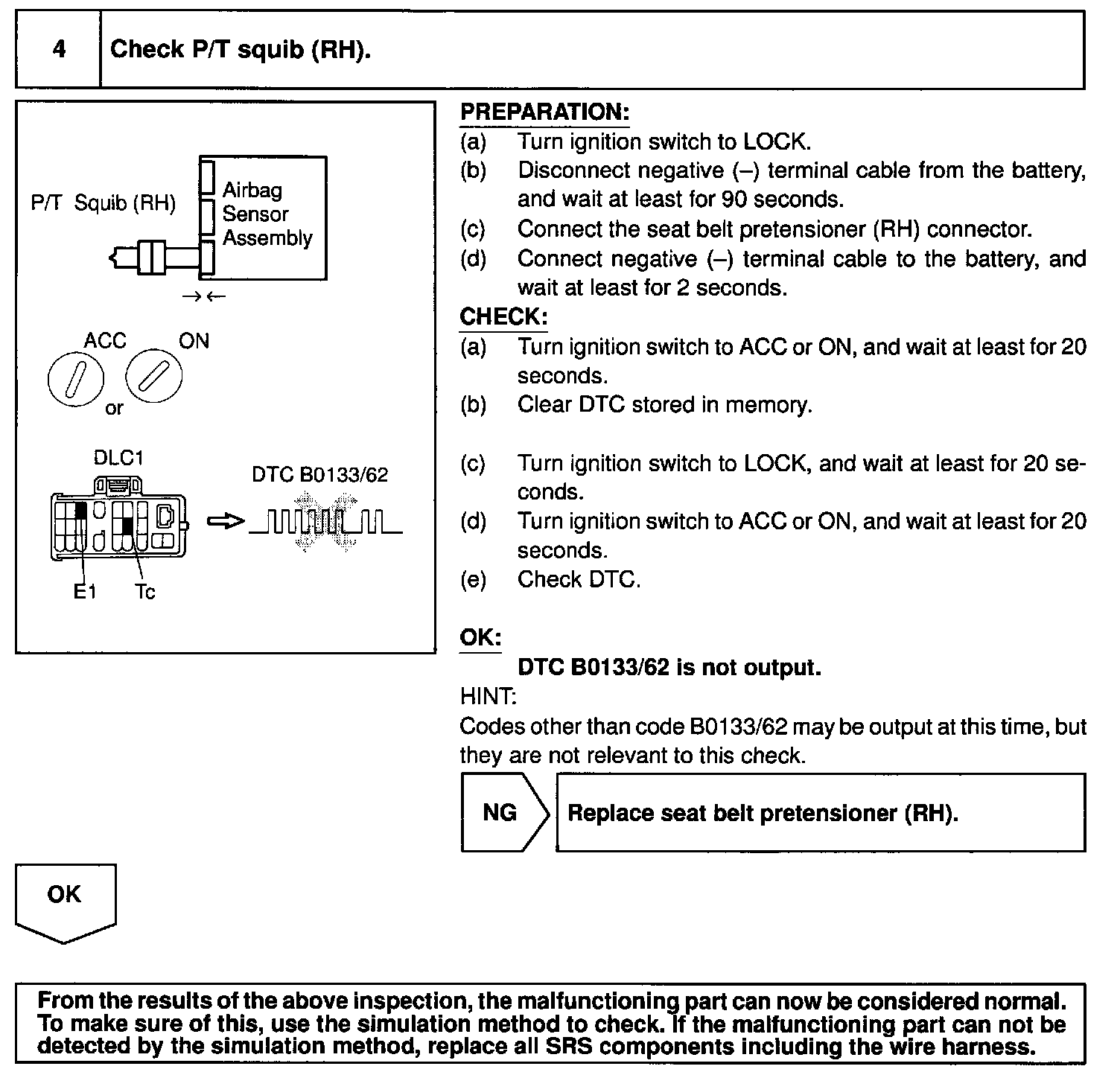

Step 4/Check P/T squib (RH)
