B0106

DTC B0106 Open In P Squib Circuit




CIRCUIT DESCRIPTION

The P squib circuit consists of the airbag sensor assembly and front passenger airbag assembly.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, see OPERATION.

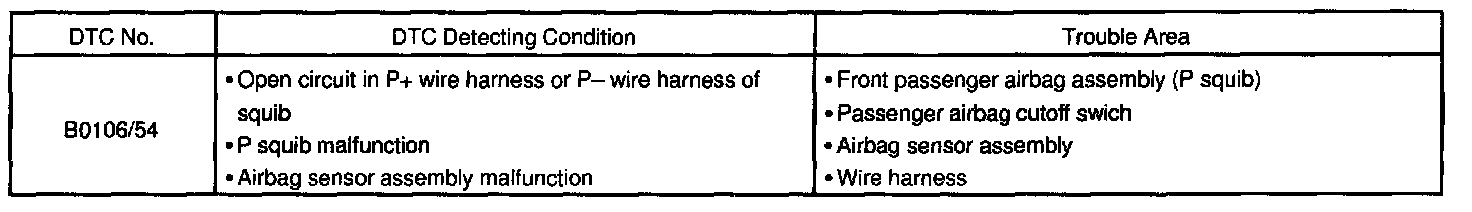

DTC B0106/54 is recorded when an open is detected in the P squib circuit.




WIRING DIAGRAM

INSPECTION PROCEDURE

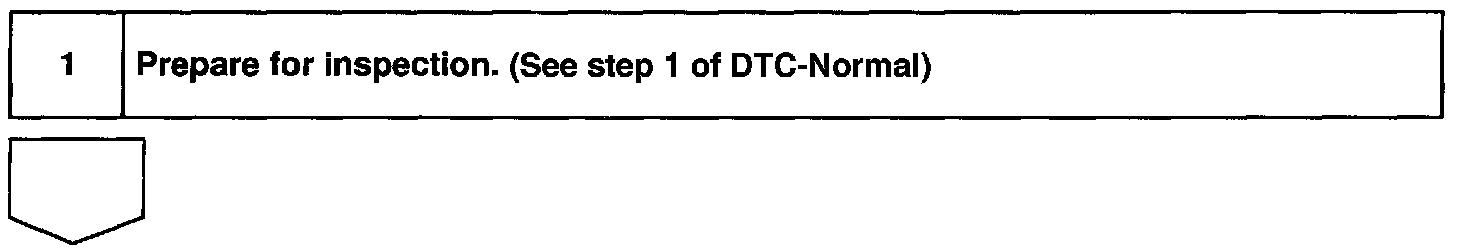

Step 1/Prepare for Inspection

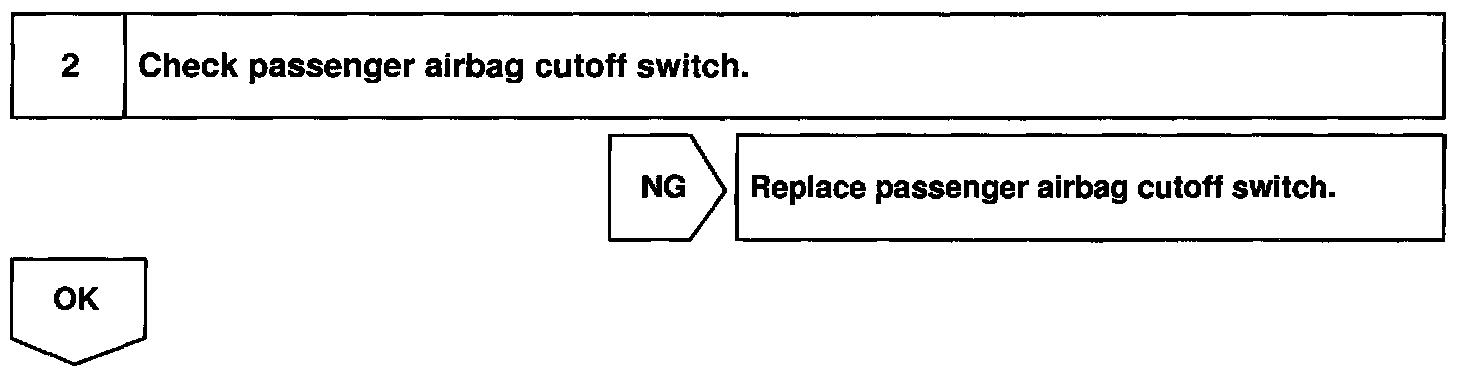

Step 2/Check Passenger airbag cutoff switch

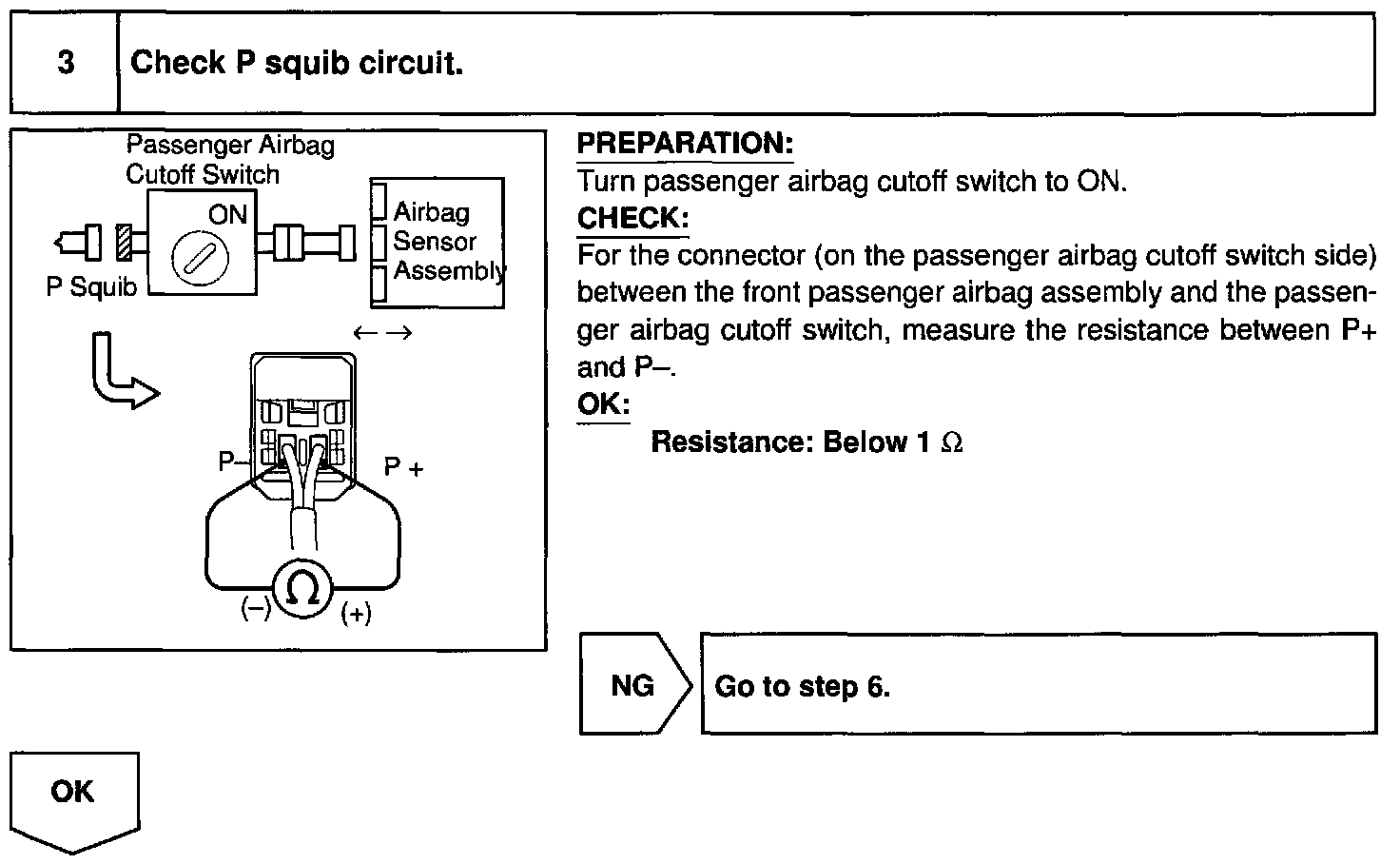

Step 3/Check P squib circuit

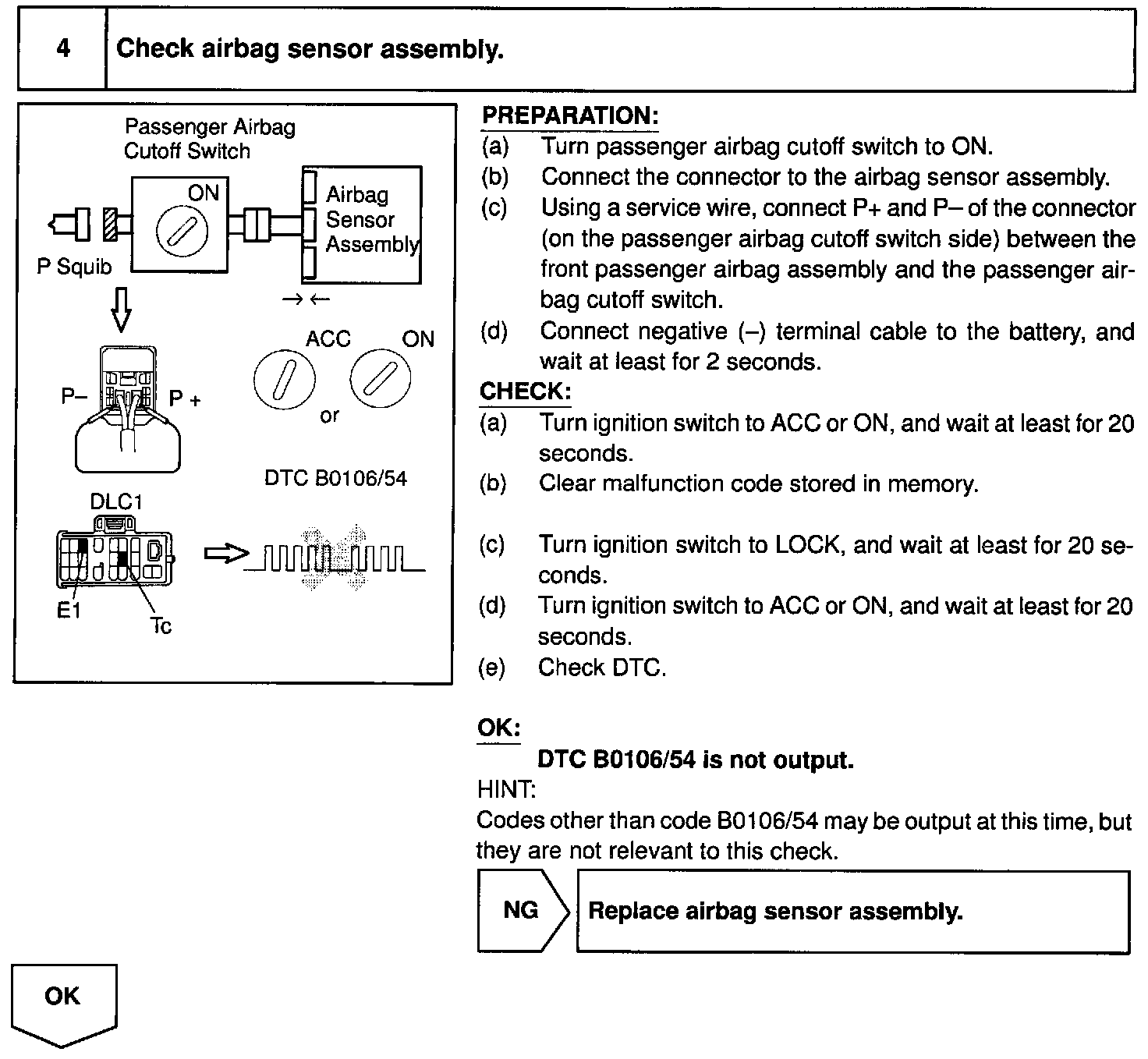

Step 4/Check airbag sensor assembly

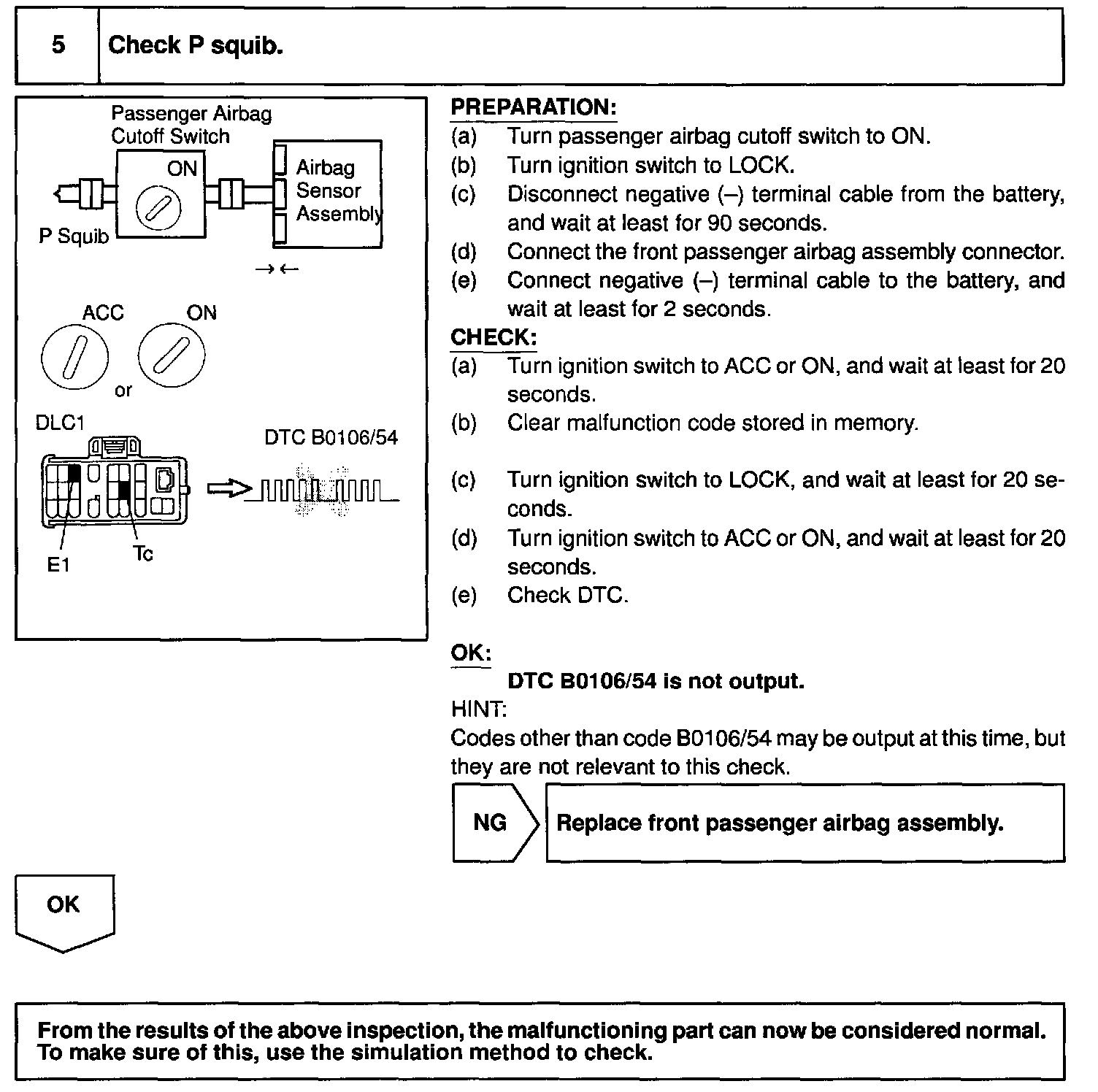

Step 5/Check P squib

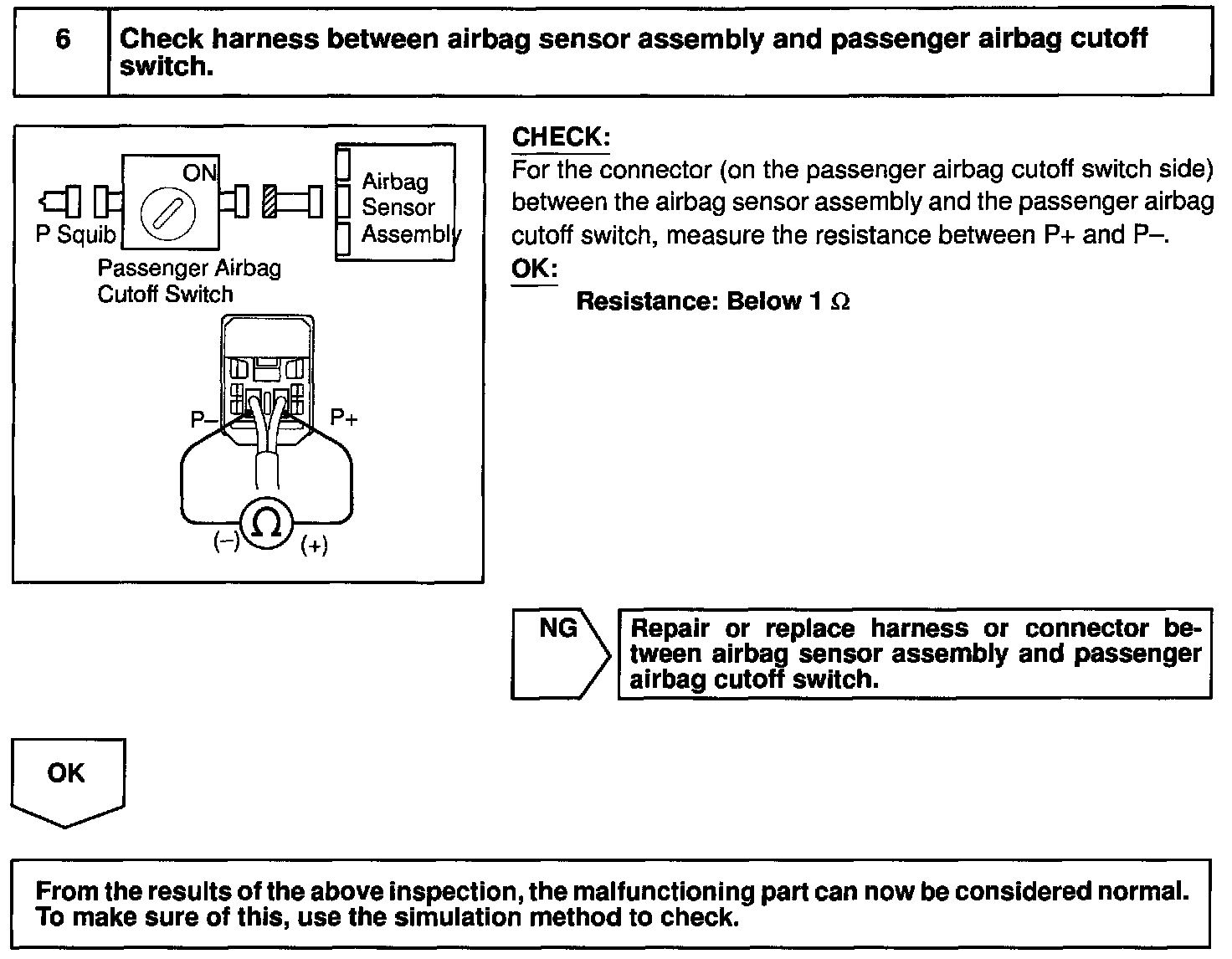

Step 6/Check harness between airbag sensor assembly and Passenger airbag cutoff switch
