DTC B0103 Short in D Squib Circuit (to B+)




CIRCUIT DESCRIPTION

The D squib circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.

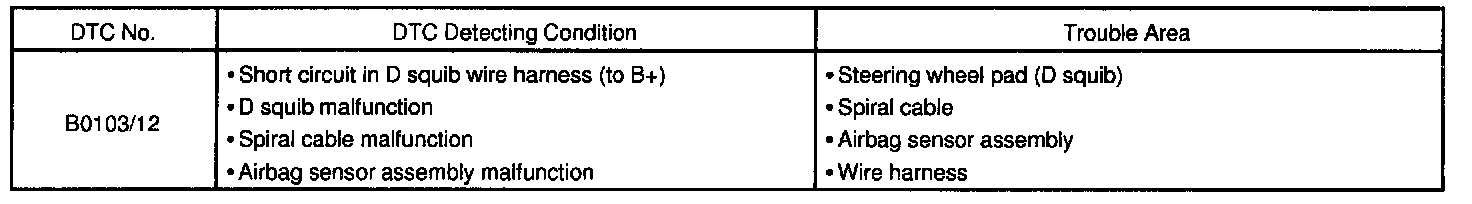

DTC B0103/12 is recorded when a B+ short is detected in the D squib circuit.

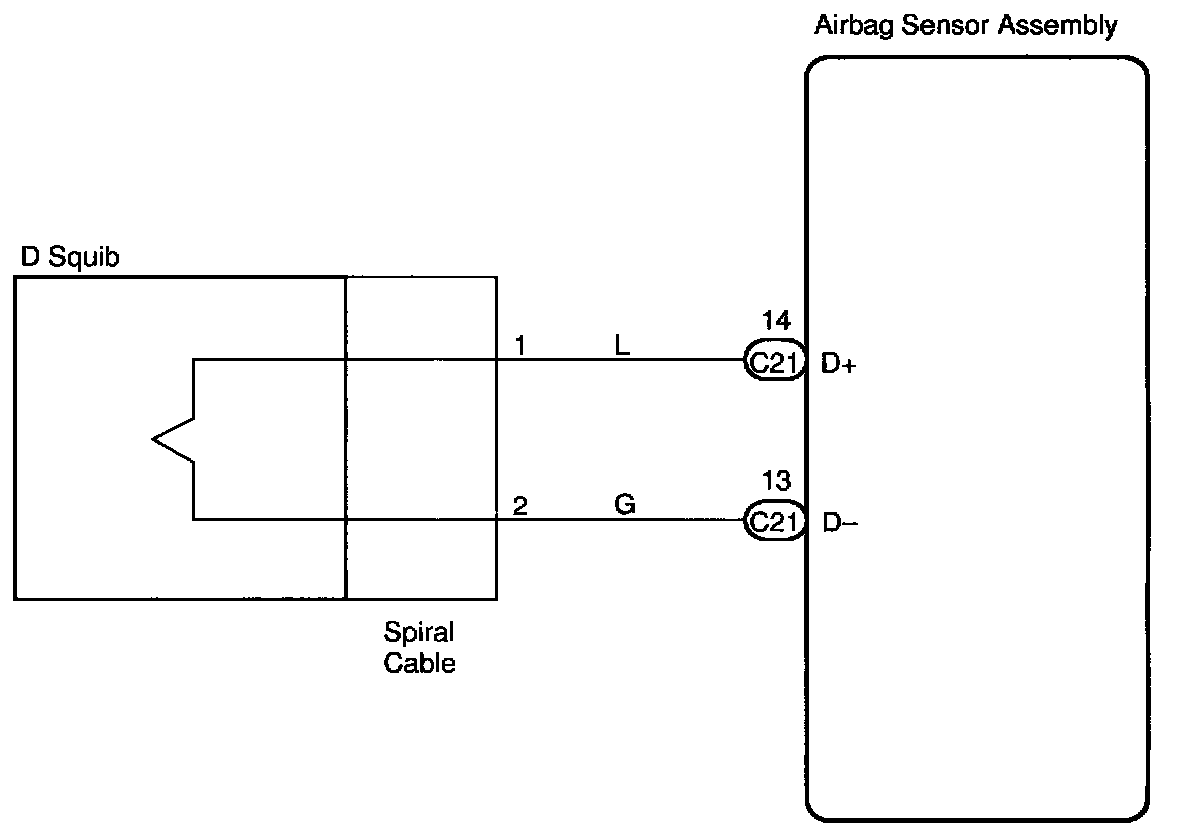

WIRING DIAGRAM

INSPECTION PROCEDURE

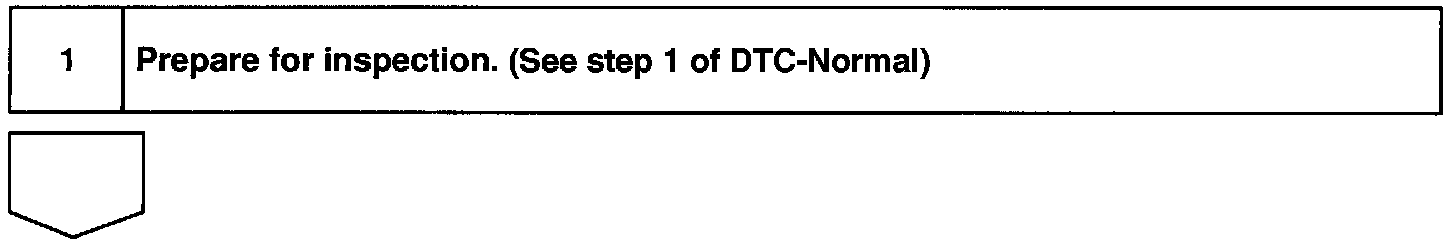

Step 1/Prepare for Inspection

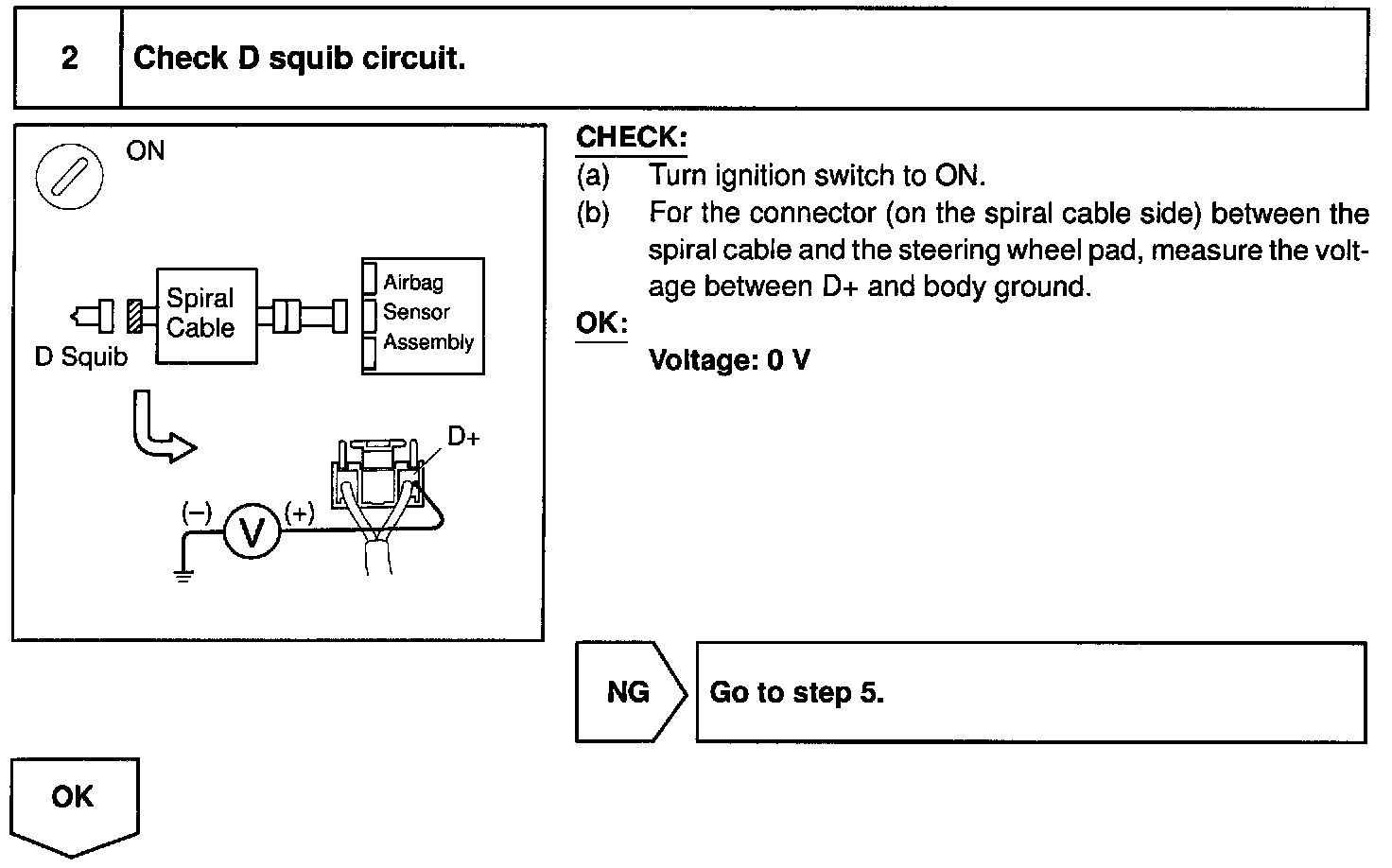

Step 2/Check D squib circuit

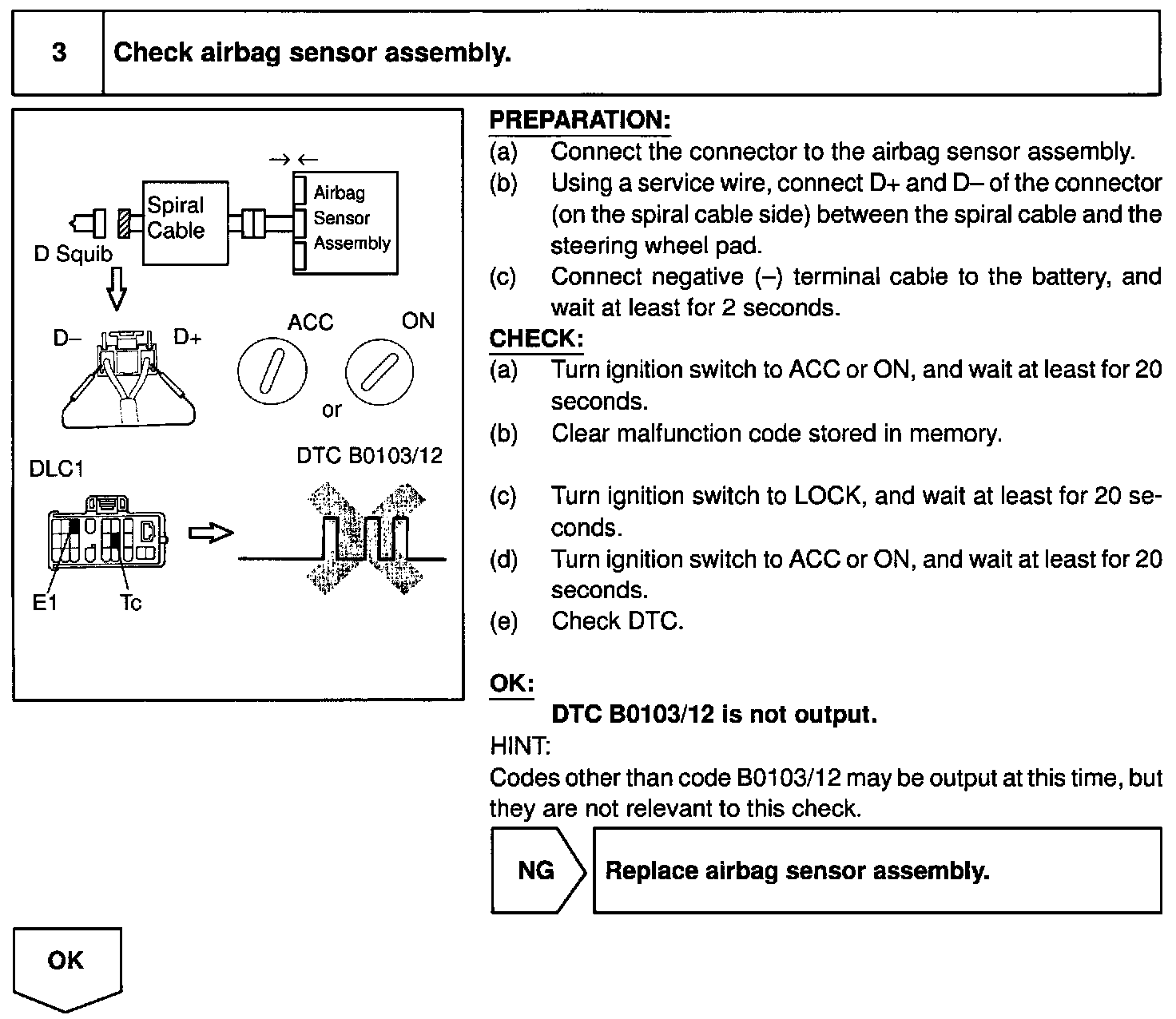

Step 3/Check airbag sensor assembly

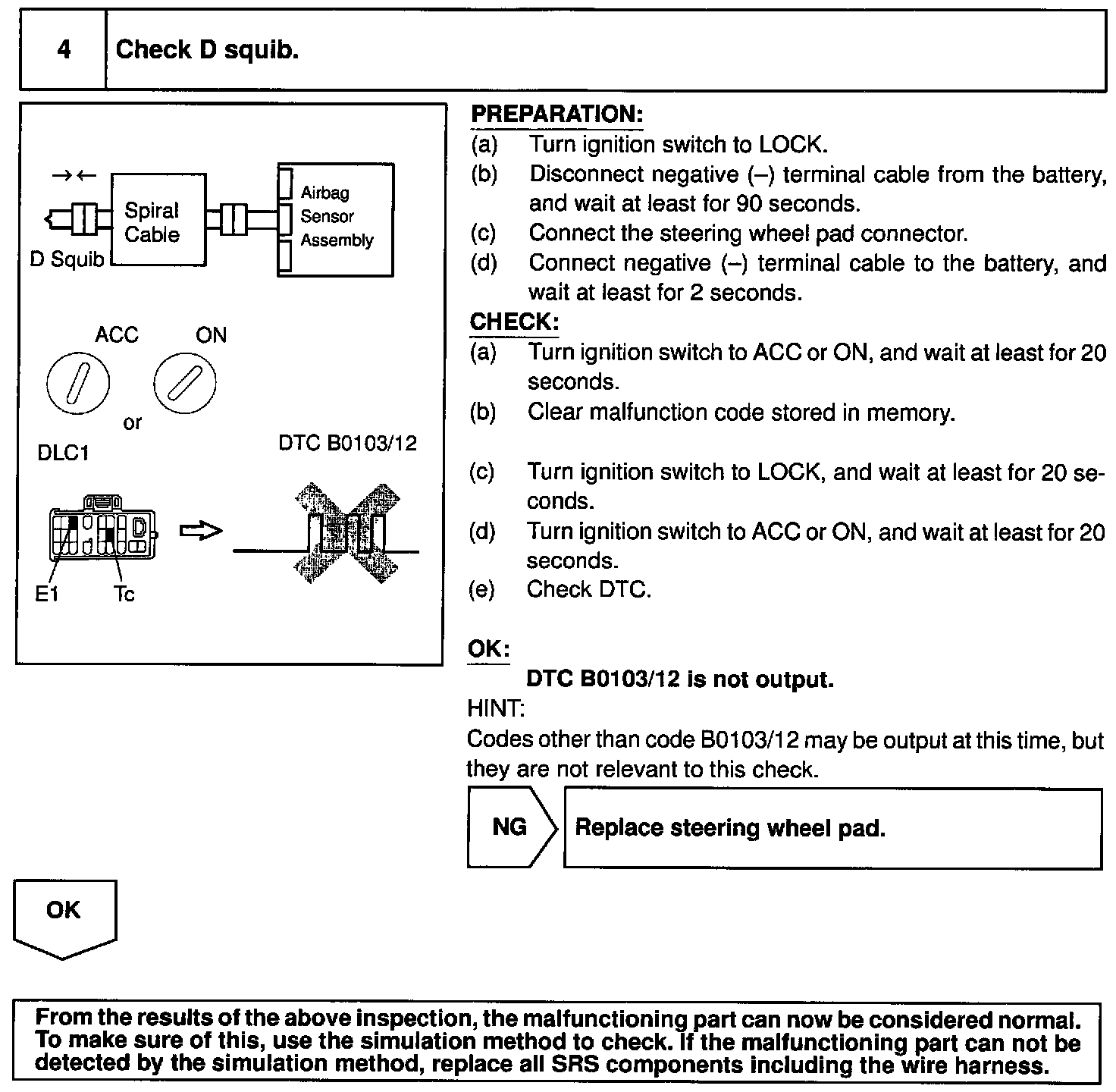

Step 4/Check D squib

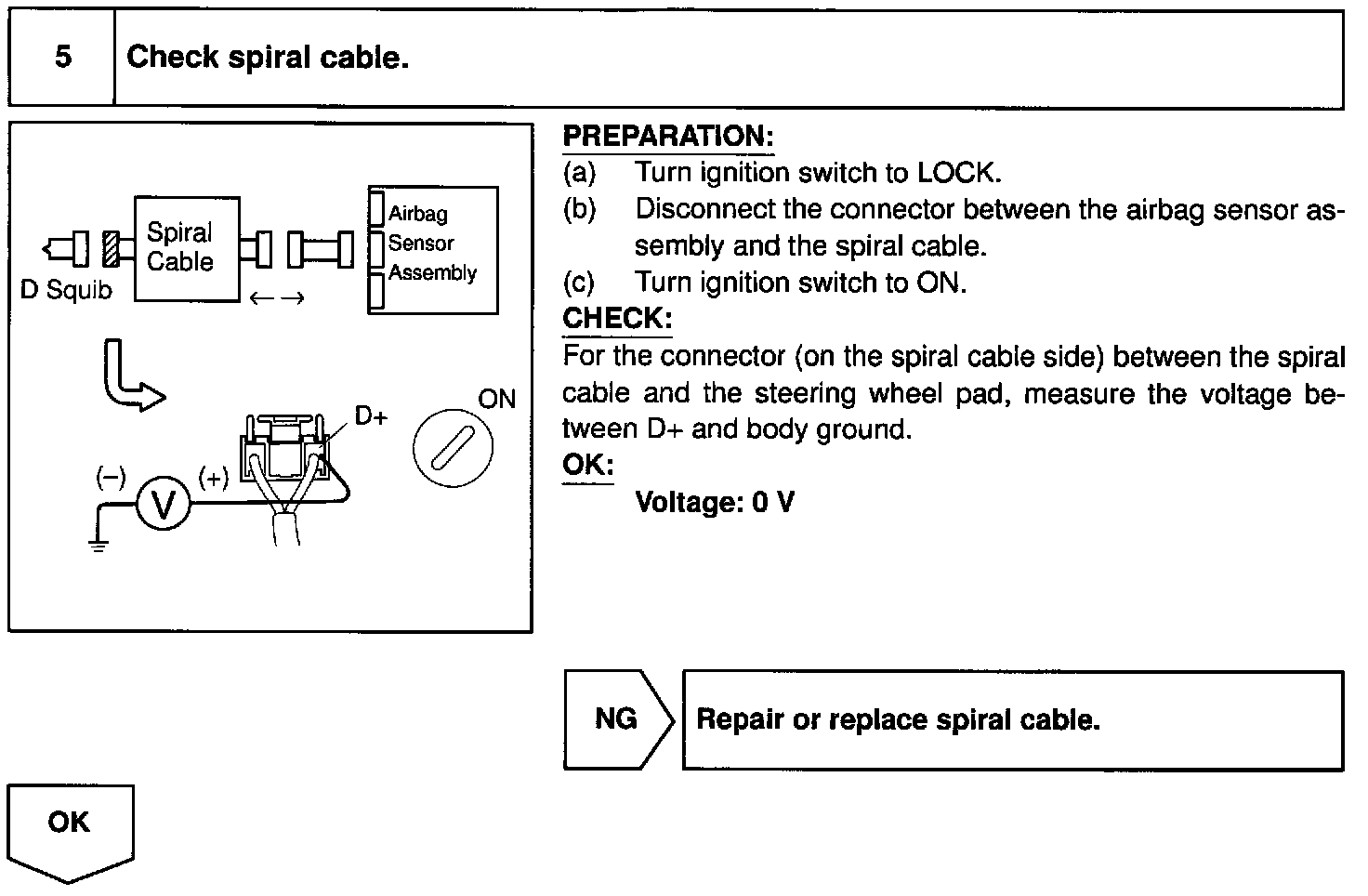

Step 5/Check Spiral Cable




Step 6/Check harness between airbag sensor assembly and Spiral Cable
