FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Toyota Truck
>>
1982
>>
Pickup 2WD L4-2188cc L,DSL
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
A/T Technical Data
A/T Technical Data

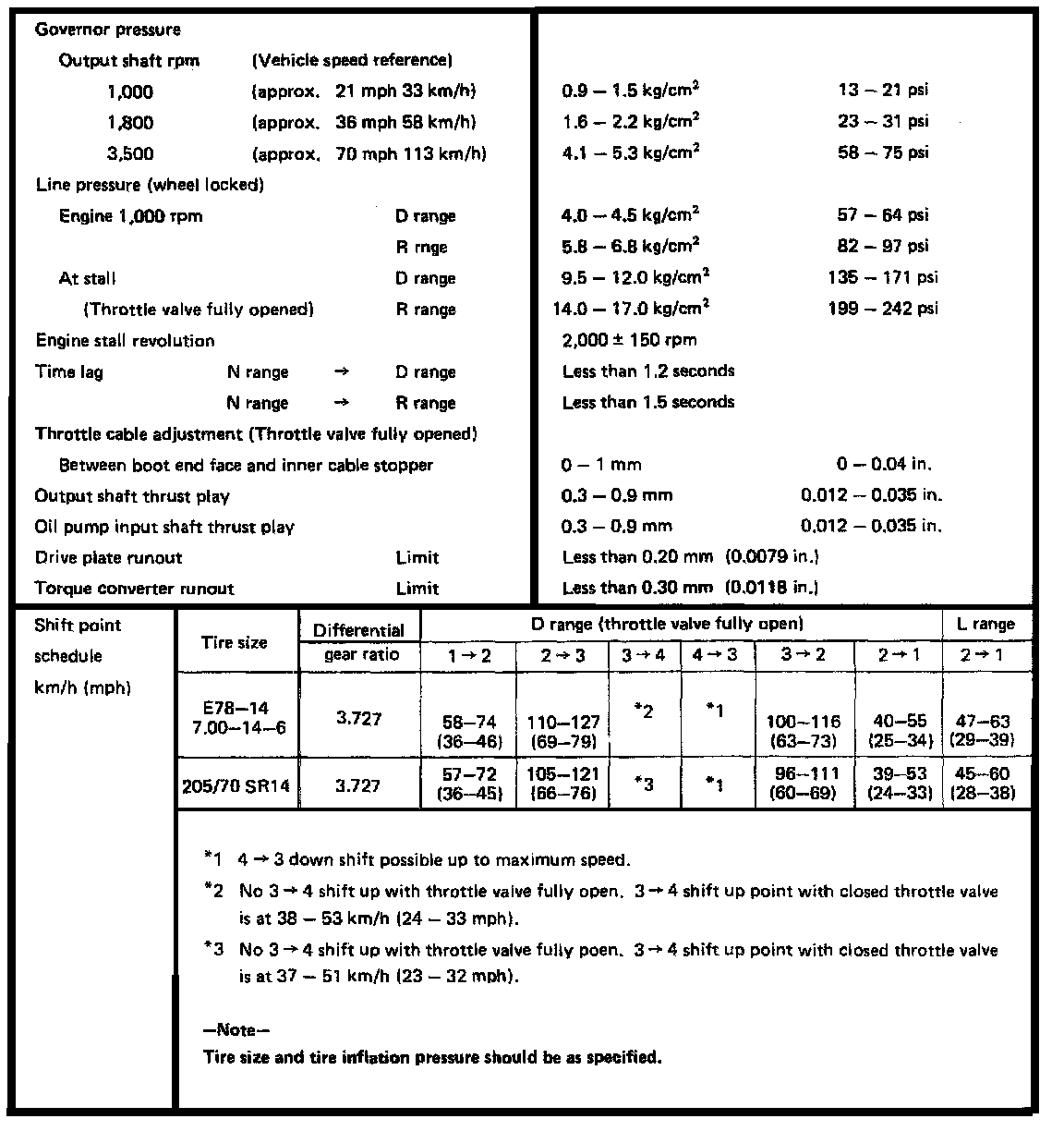

A43D 4-spd A/T, Governor Pressure/Shift Points:

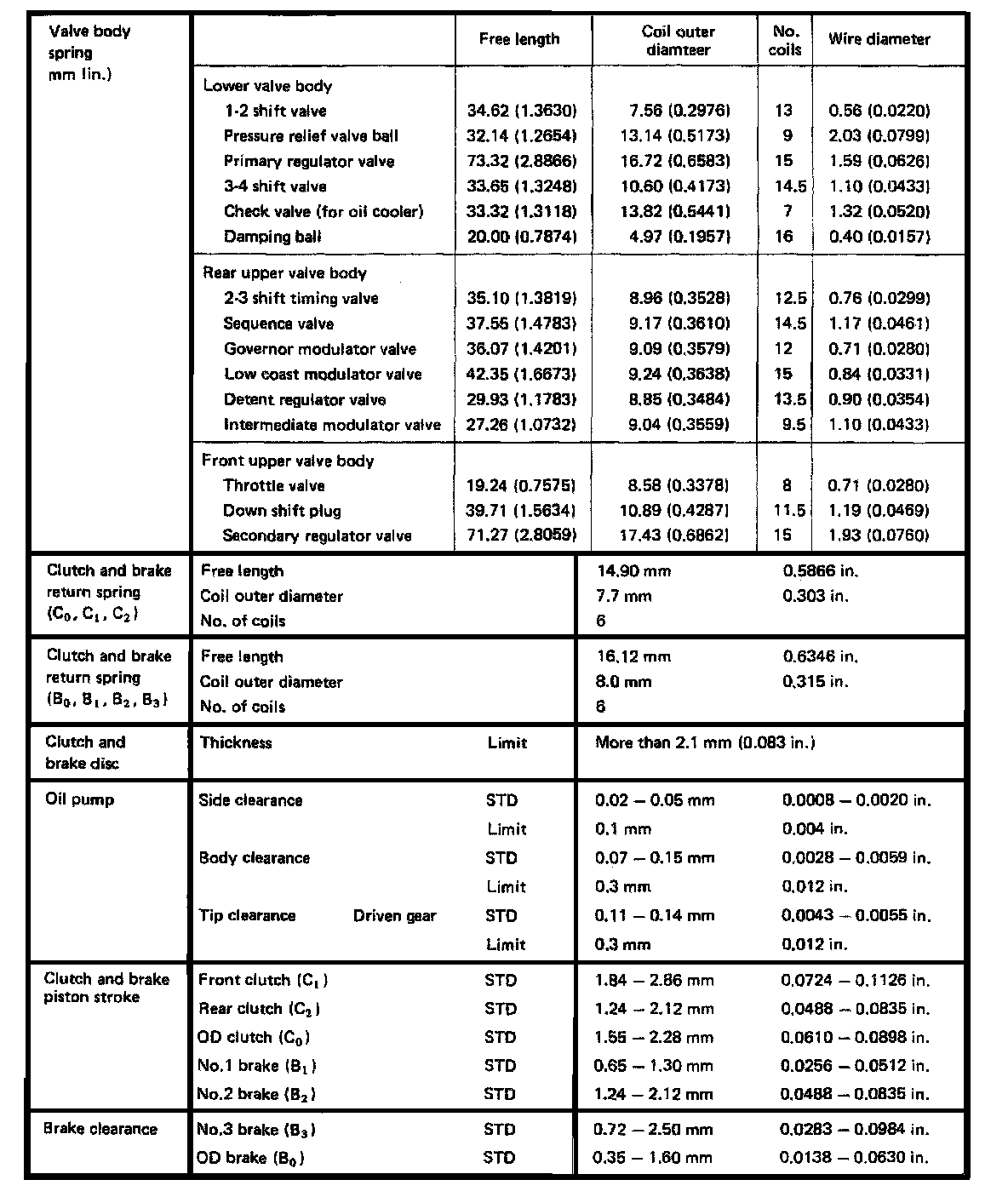

A43D 4-spd A/T, Valve Body/Clutch And Brake:

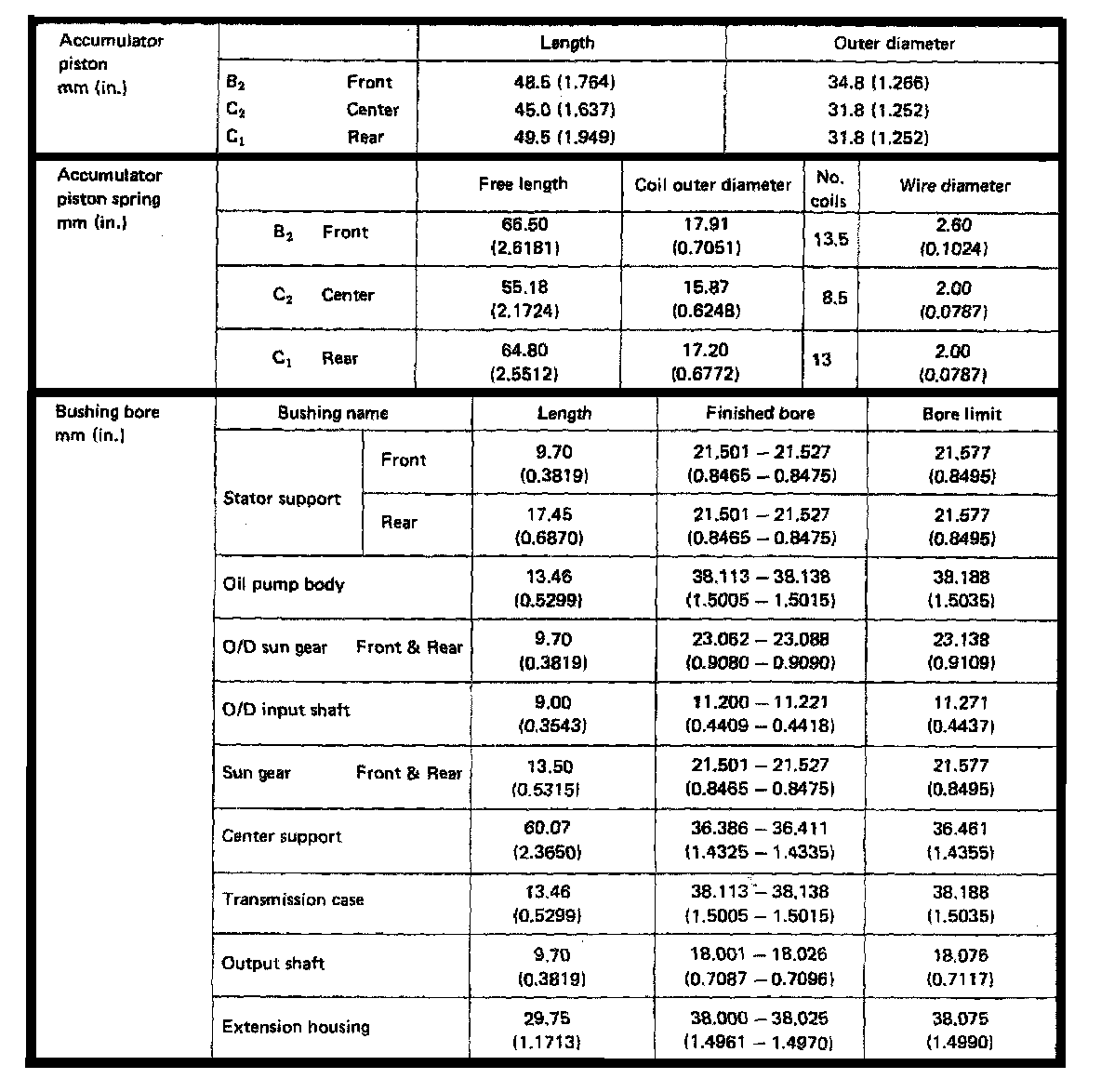

A43D 4-spd A/T, Accumulator Clearance:
