FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Suzuki
>>
2012
>>
SX4 4WD L4-2.0L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transfer Case
>>
Service and Repair
>>
Overhaul
>>
Transfer Assembly
>>
Components
Components

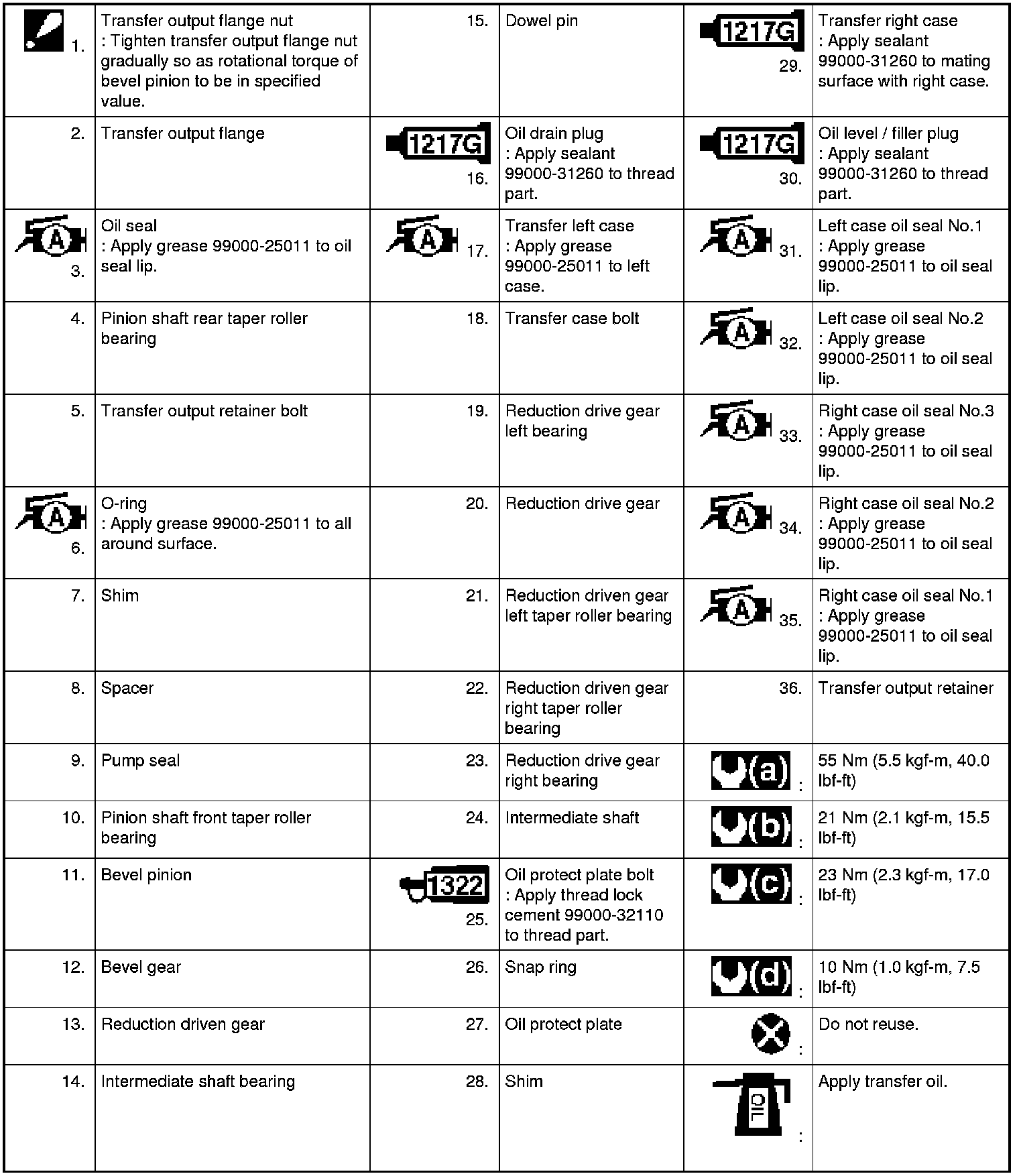

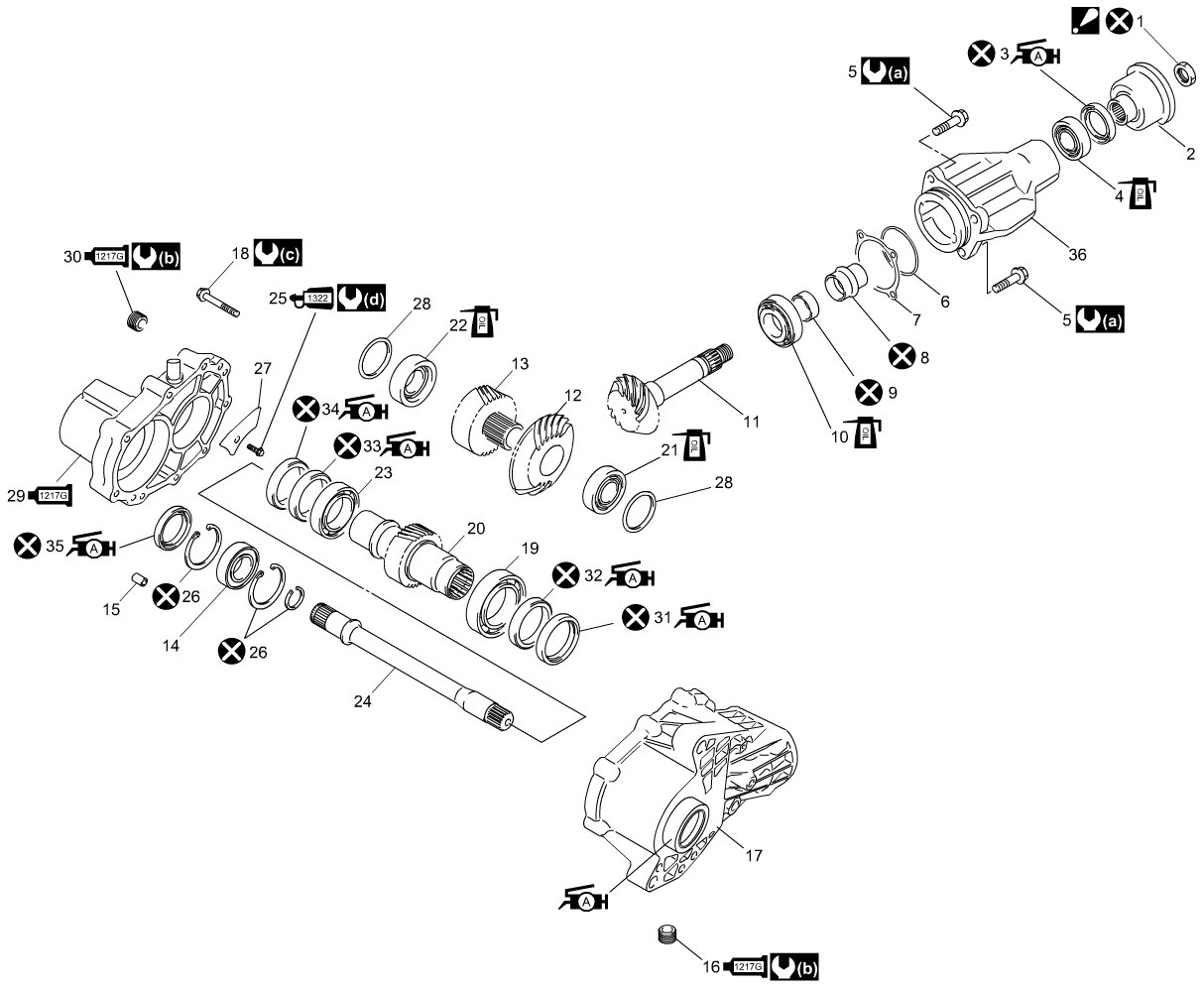

Transfer Assembly Components
Transfer Output Retainer Assembly Disassembly and Reassembly
