Reduction Driven Gear Assembly Disassembly and Reassembly

Reduction Driven Gear Assembly Disassembly and Reassembly

Disassembly

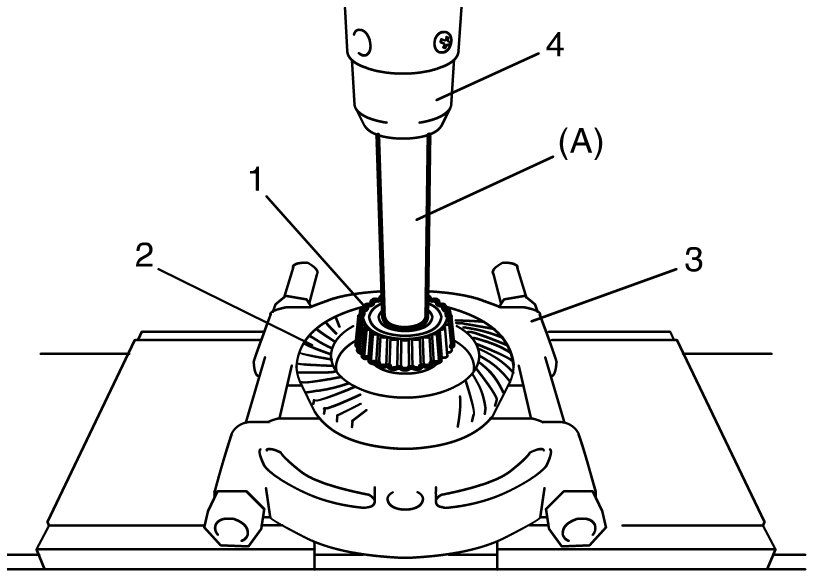

1) Remove left bearing (1) and bevel gear (2) using special tool, bearing puller (3) and hydraulic press (4).
Special Tool

(A): 09925-98221

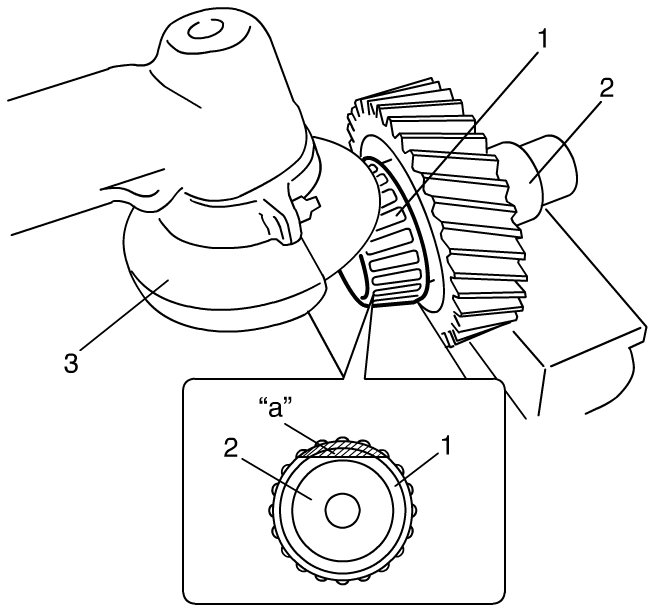

2) In order to remove right bearing (1) from reduction driven gear (2), grind with a grinder (3) one part "a" of bearing as illustrated till it becomes thin.

NOTE:
If you grind the bearing too much, you will damage the reduction driven gear.

Limit the amount of grinding to the minimum amount necessary.





3) Break with a chisel (1) the thin ground bearing (2), and it can be removed.






Reassembly

NOTE:

Using bolts other than the specified bolts may cause problems with the rear differential.

Use only the specified bolts.

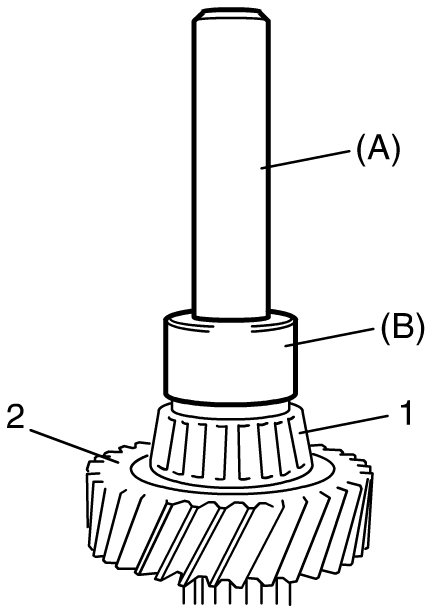

1) Install right bearing (1) to reduction driven gear (2) using special tools and hydraulic press.
Special Tool

(A): 09924-74510

(B): 09925-16310

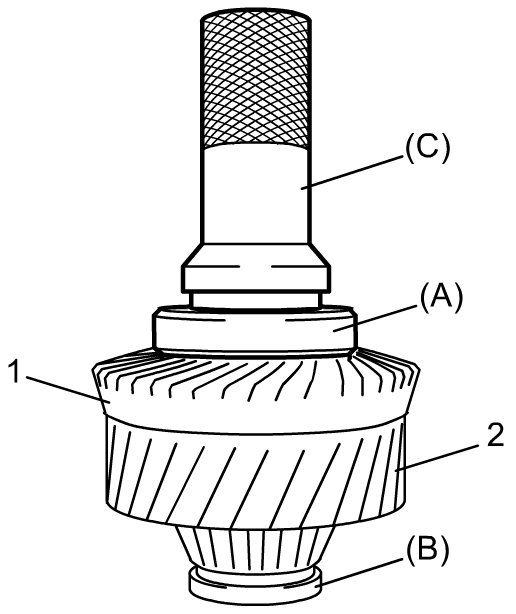

2) Install bevel gear (1) to reduction driven gear (2) using special tools and hydraulic press.
Special Tool

(A): 09924-07710

(B): 09924-84510-005

(C): 09925-15410





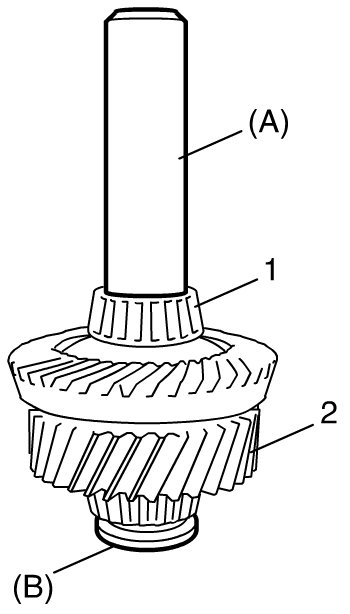

3) Install left bearing (1) to reduction driven gear (2) using special tools and hydraulic press.
Special Tool

(A): 09913-84510

(B): 09924-84510-005
