2WD/4WD Switch Removal and Installation




2WD/4WD Switch Removal and Installation

Removal

1) Disconnect negative cable at battery.

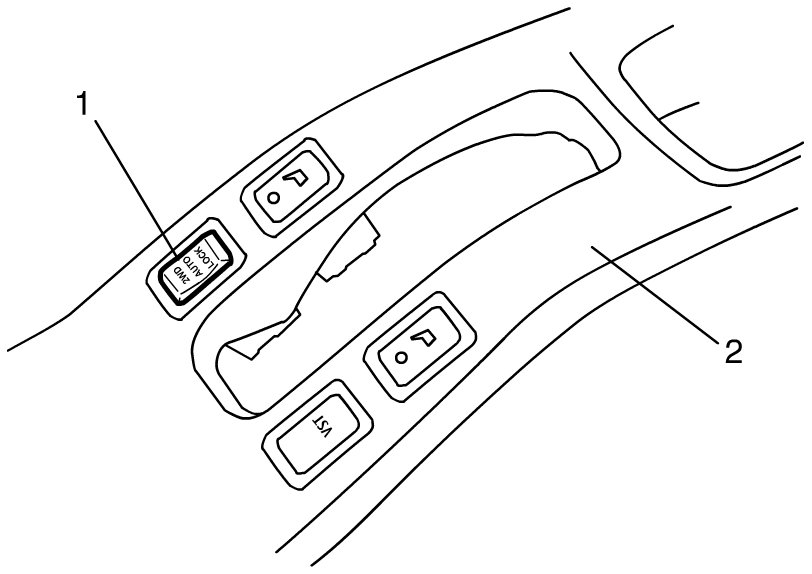

2) Remove console box (2).
3) Remove 2WD/4WD switch (1) from console box.






Installation

2WD/4WD Switch Inspection

Reverse removal procedure for installation.
