Home >> Suzuki >> 2012 >> SX4 4WD L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Testing and Inspection

Differential Assembly: Testing and Inspection

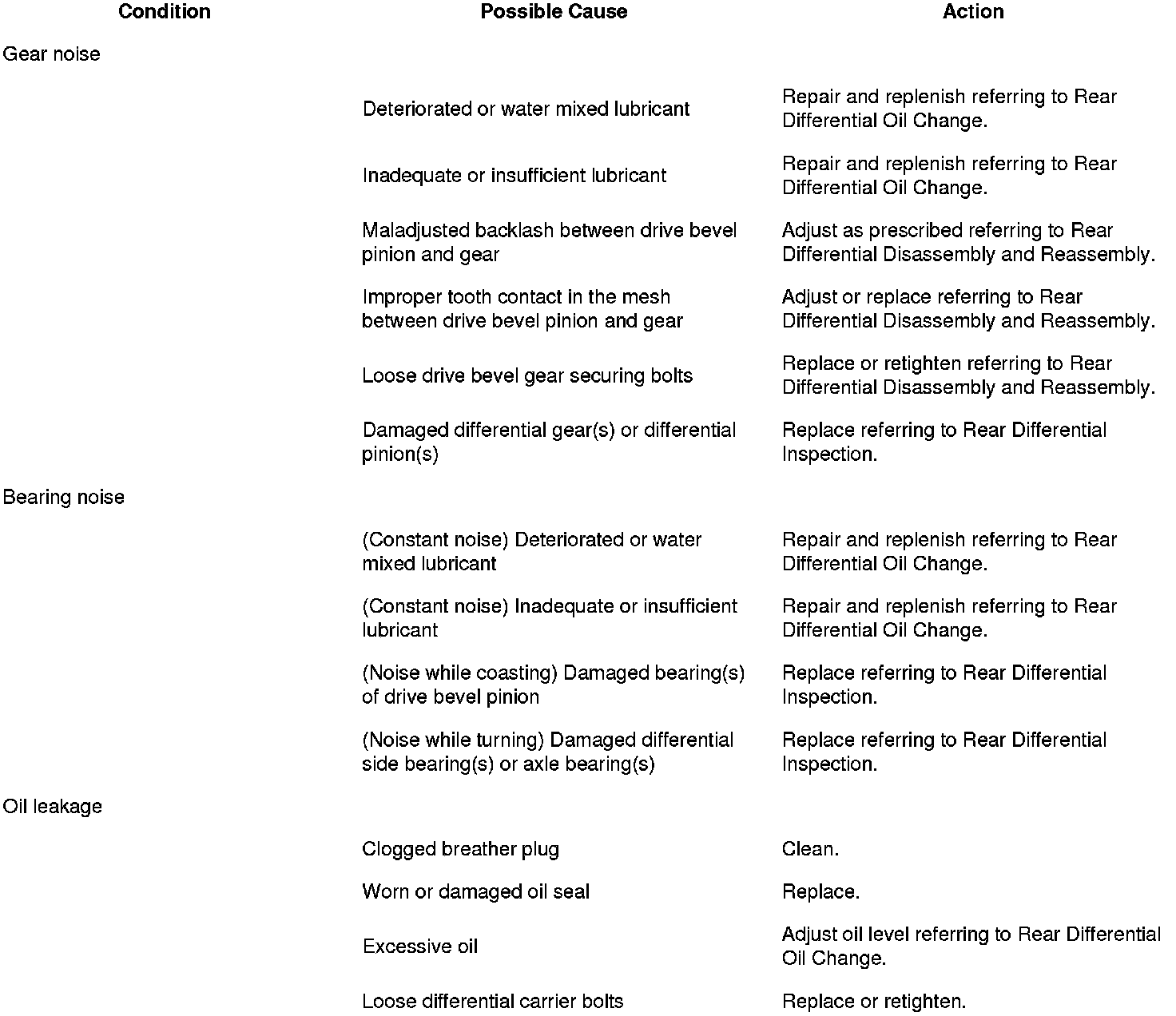

Rear Differential Symptom Diagnosis
